Home >> Cadillac >> 2006 >> STS-V V8-4.4L SC VIN D >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams >> Connector Views

Connector Views

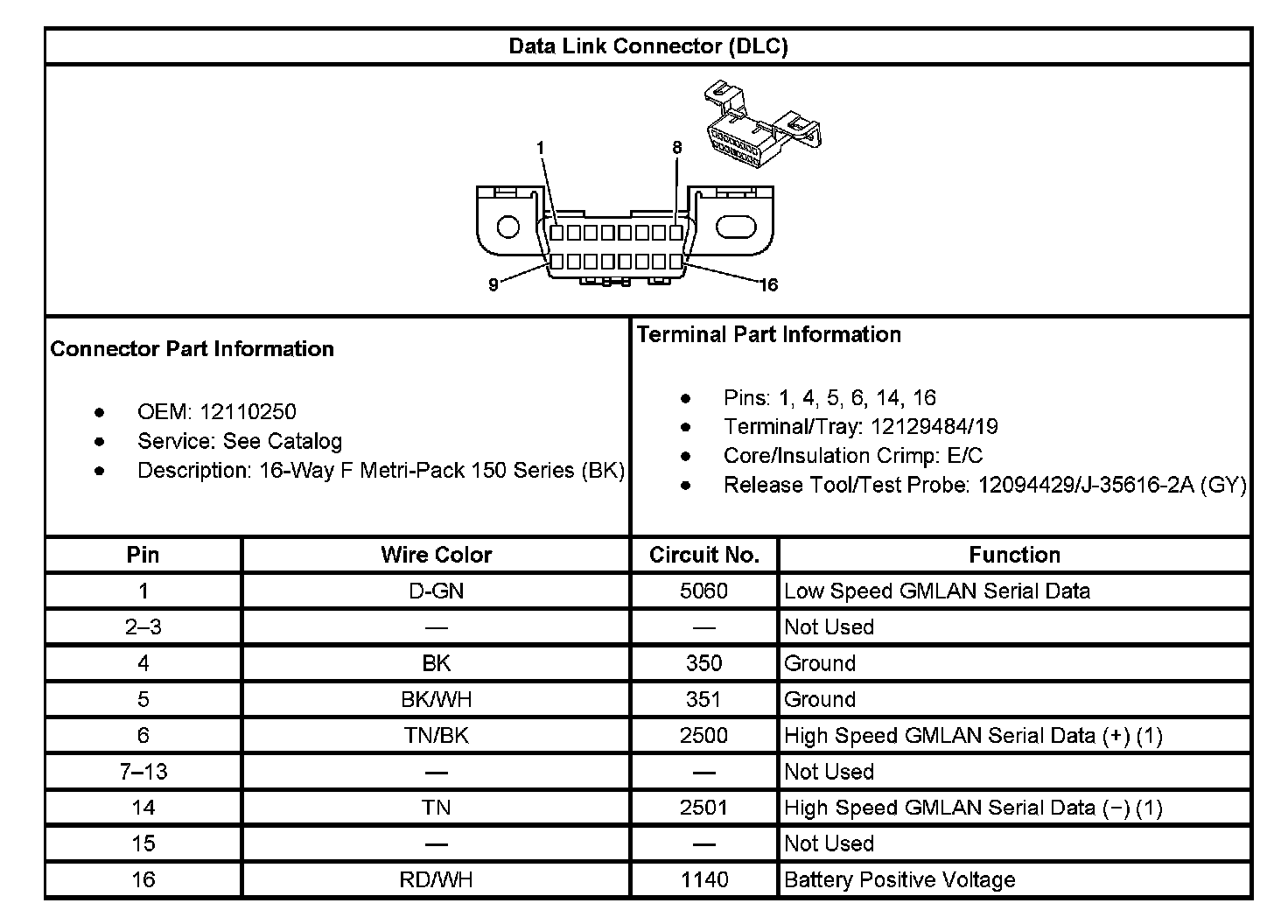

Data Link Connector (DLC):
