Home >> Cadillac >> 2006 >> STS AWD V6-3.6L VIN 7 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Locations

Control Module: Locations

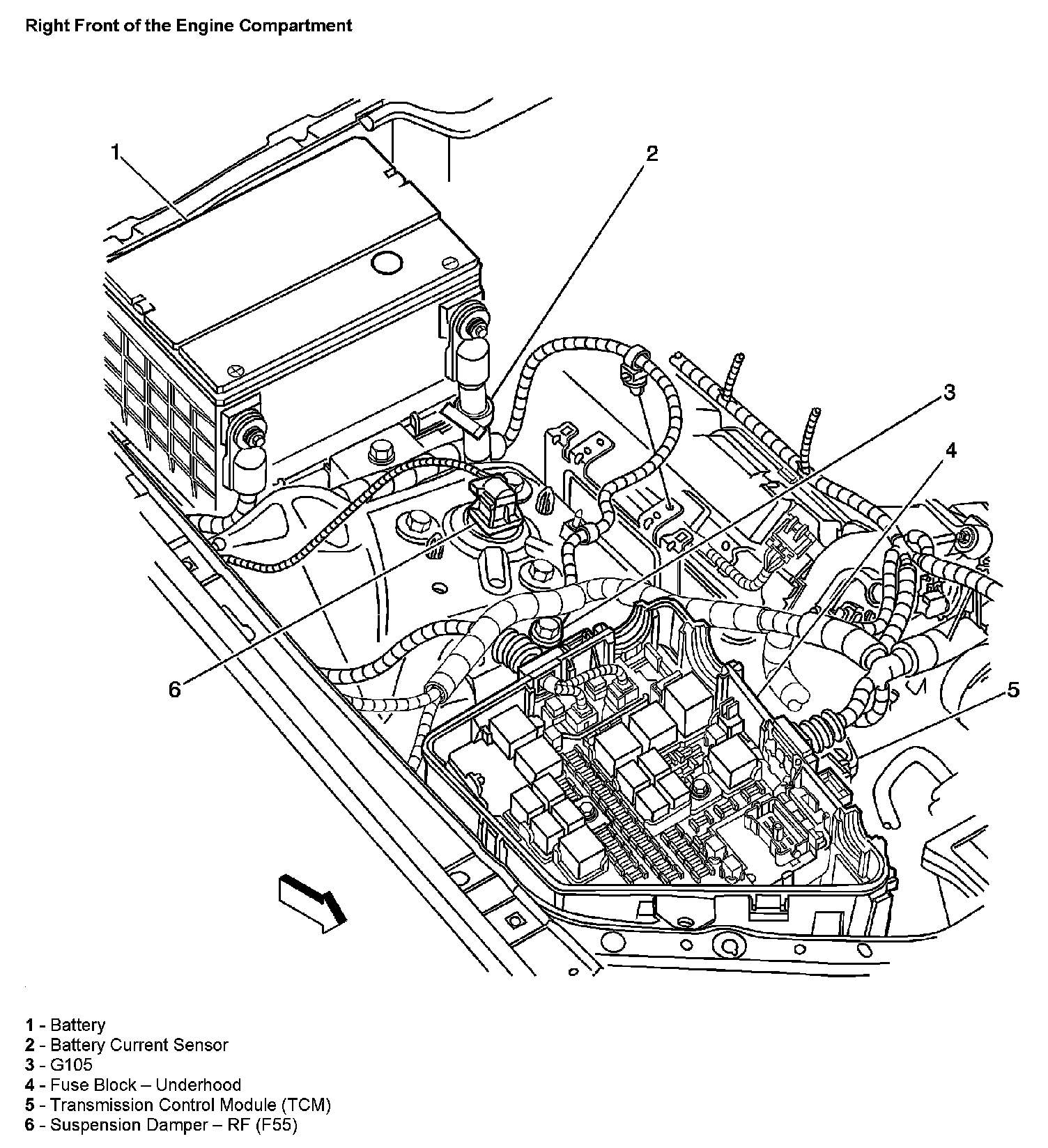

Right Front Of The Engine Compartment:
