Instrument Panel Module (IPM)

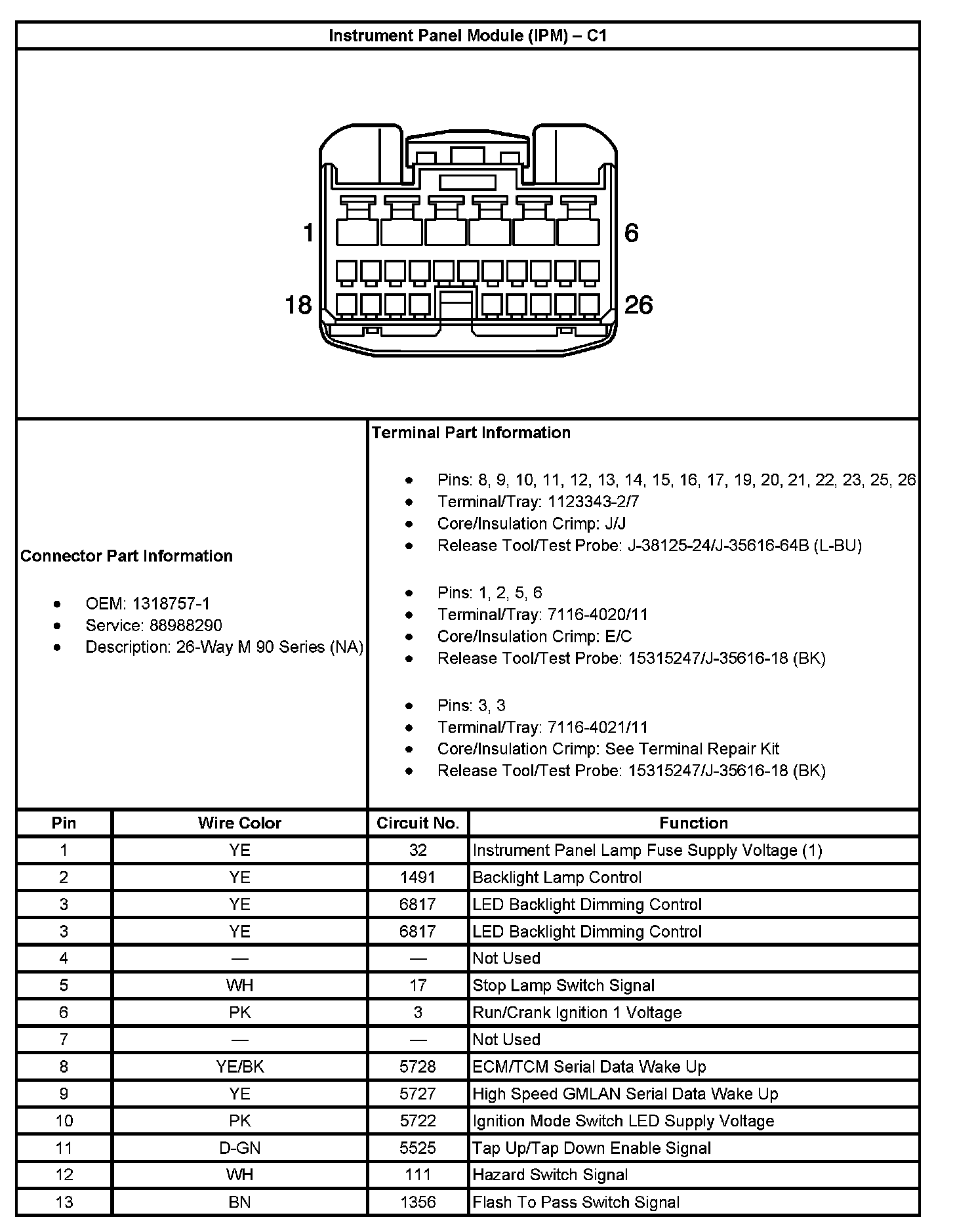

Instrument Panel Module (IPM) - C1 (Part 1):

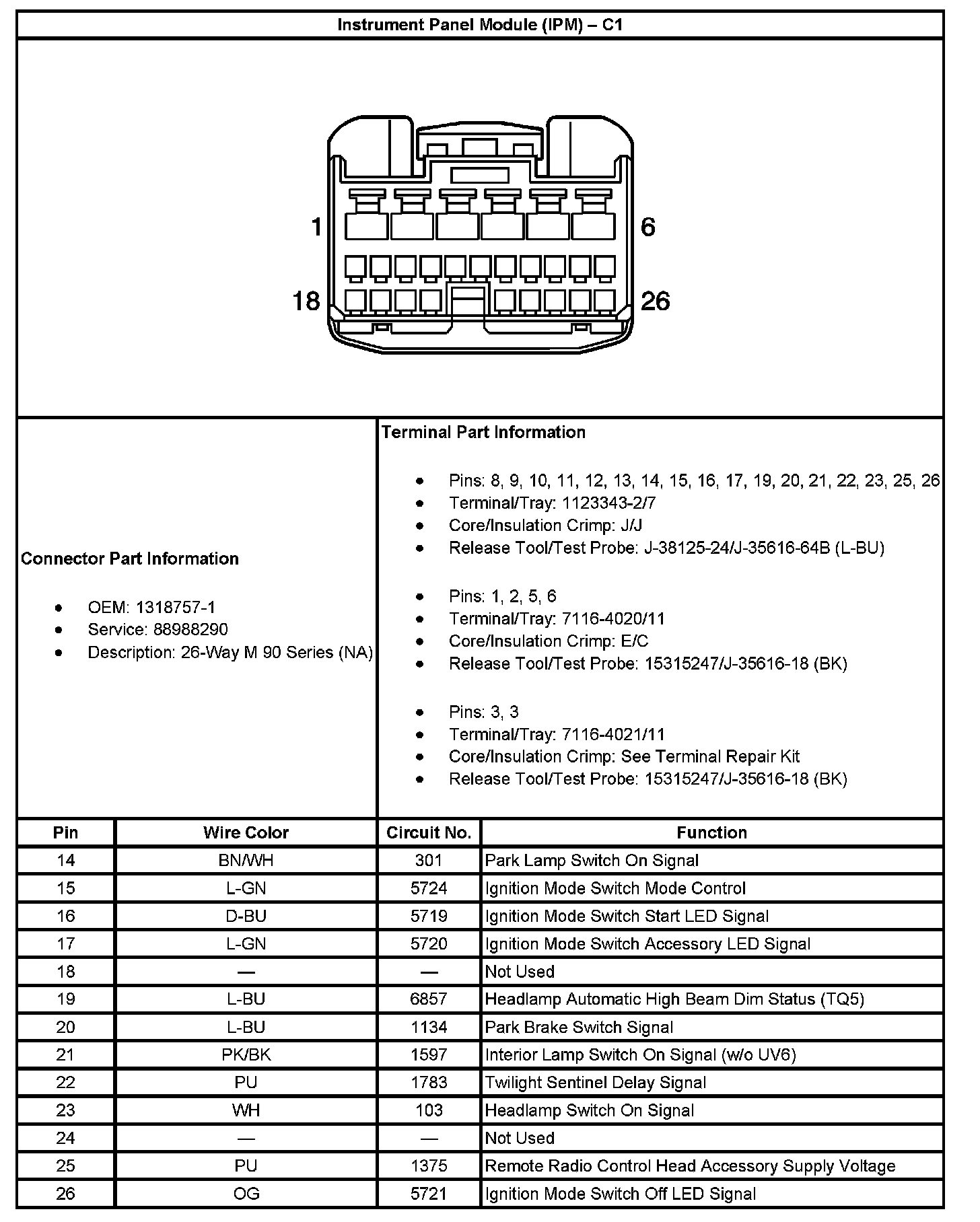

Instrument Panel Module (IPM) - C1 (Part 2):

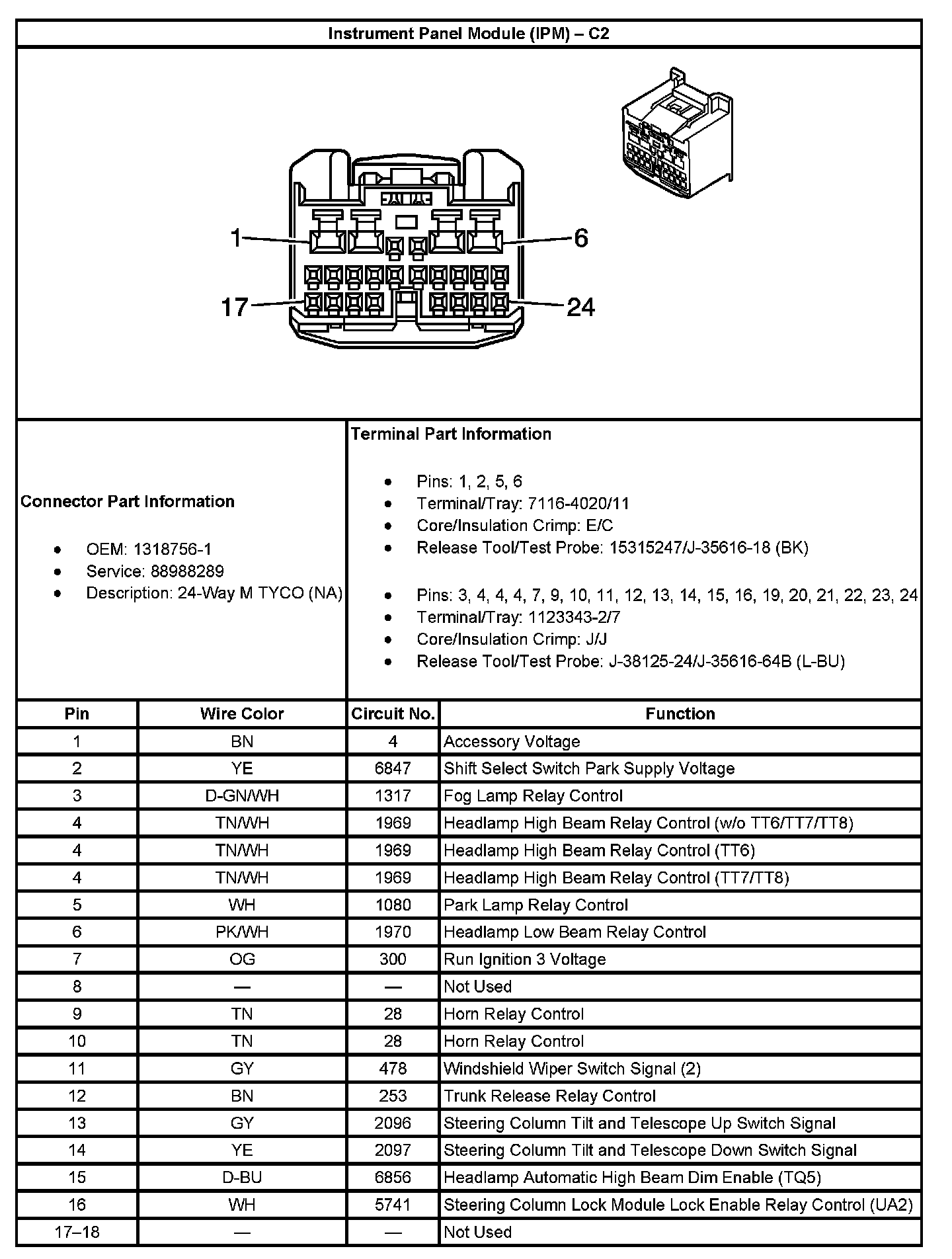

Instrument Panel Module (IPM) - C2 (Part 1):

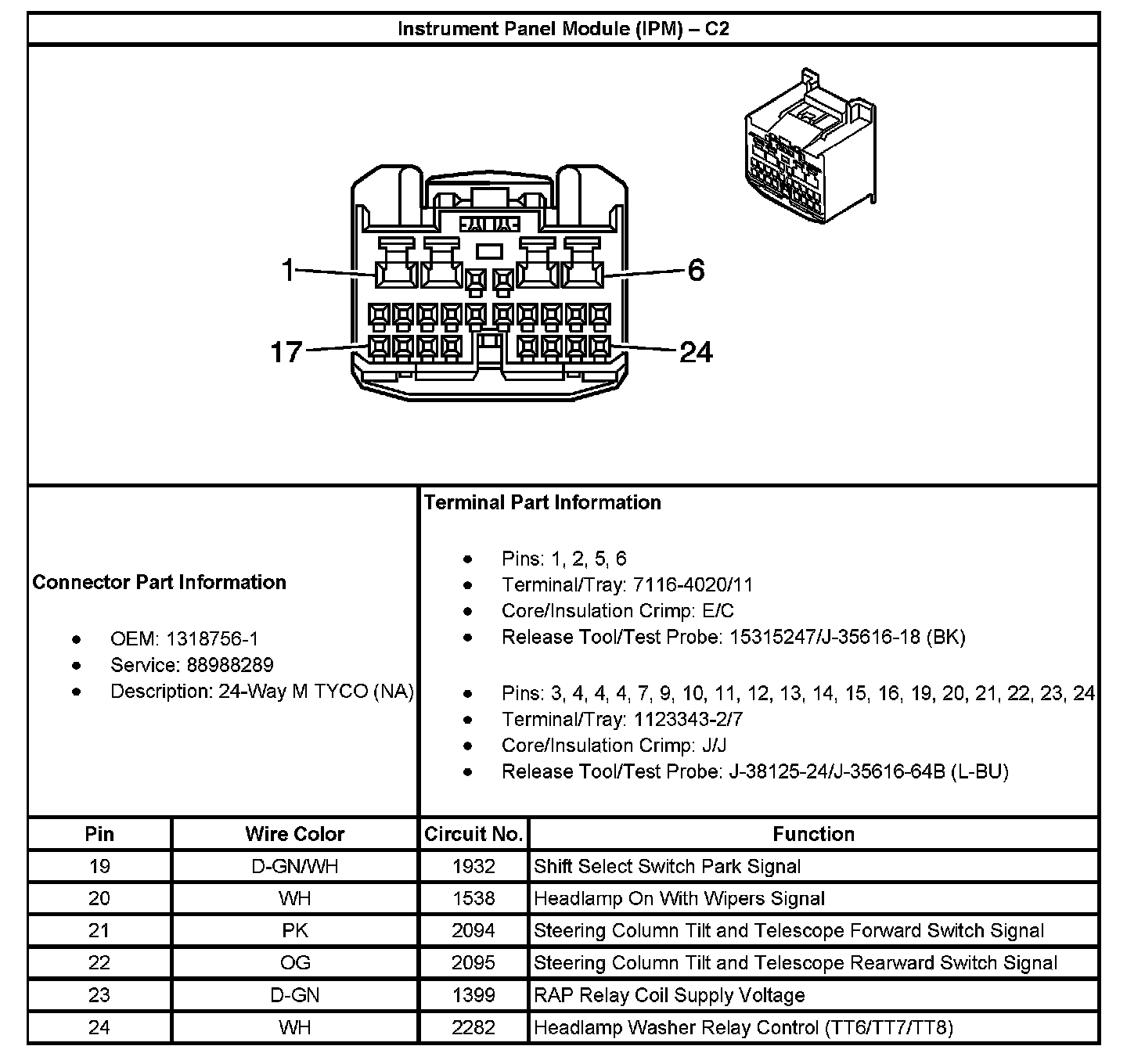

Instrument Panel Module (IPM) - C2 (Part 2):

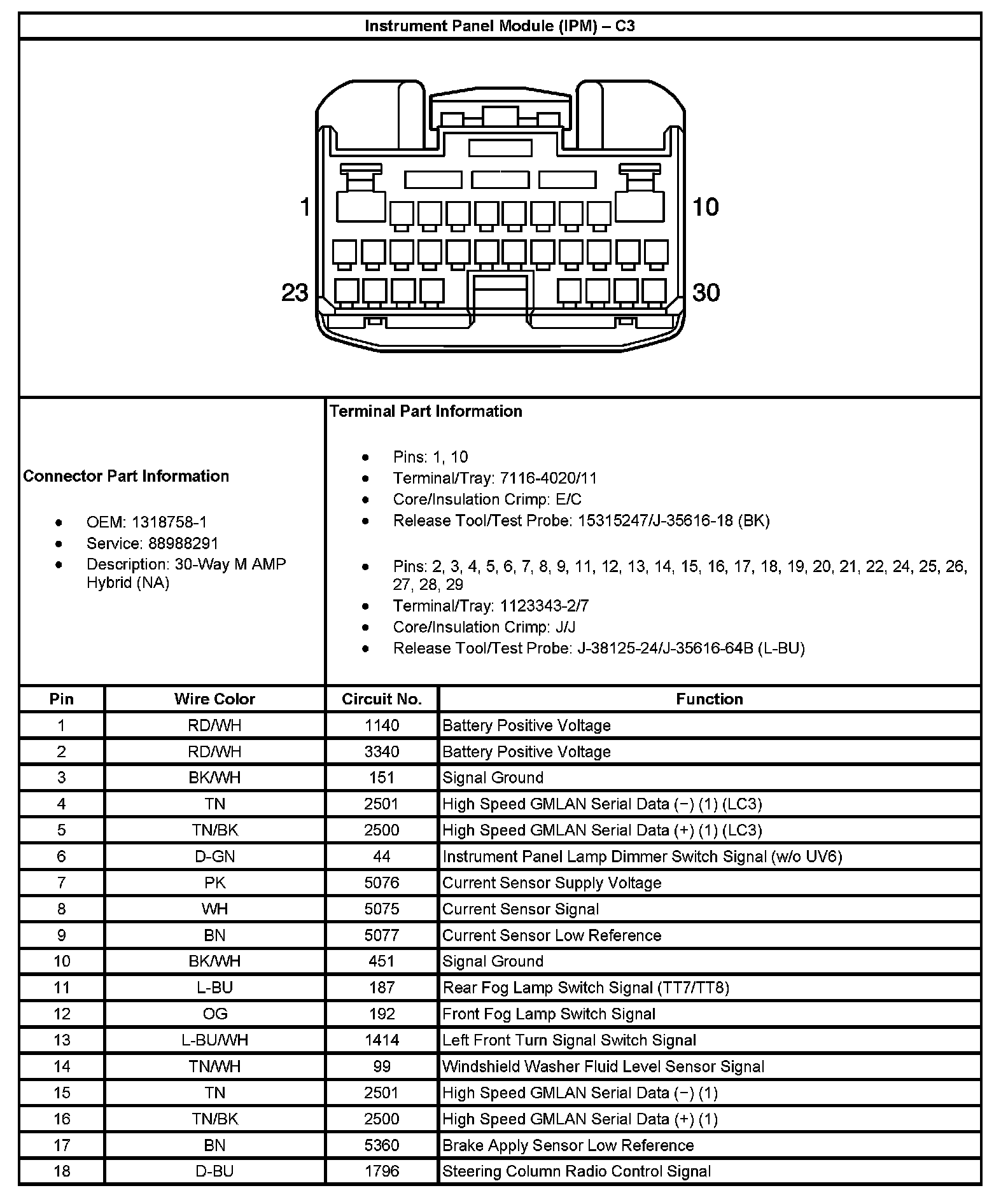

Instrument Panel Module (IPM) - C3 (Part 1):

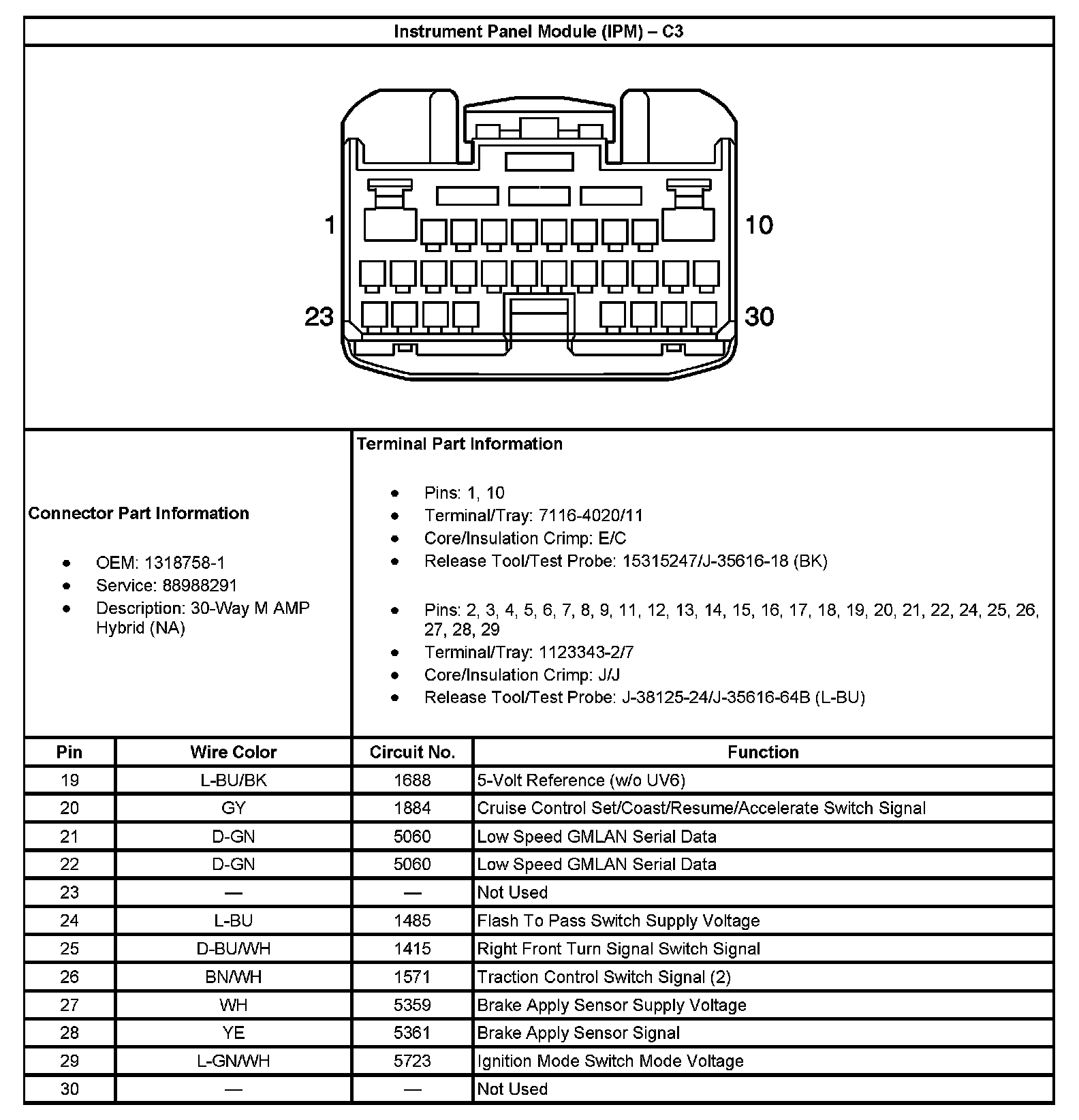

Instrument Panel Module (IPM) - C3 (Part 2):
