Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>
Engine Compartment Views
Engine Compartment Views

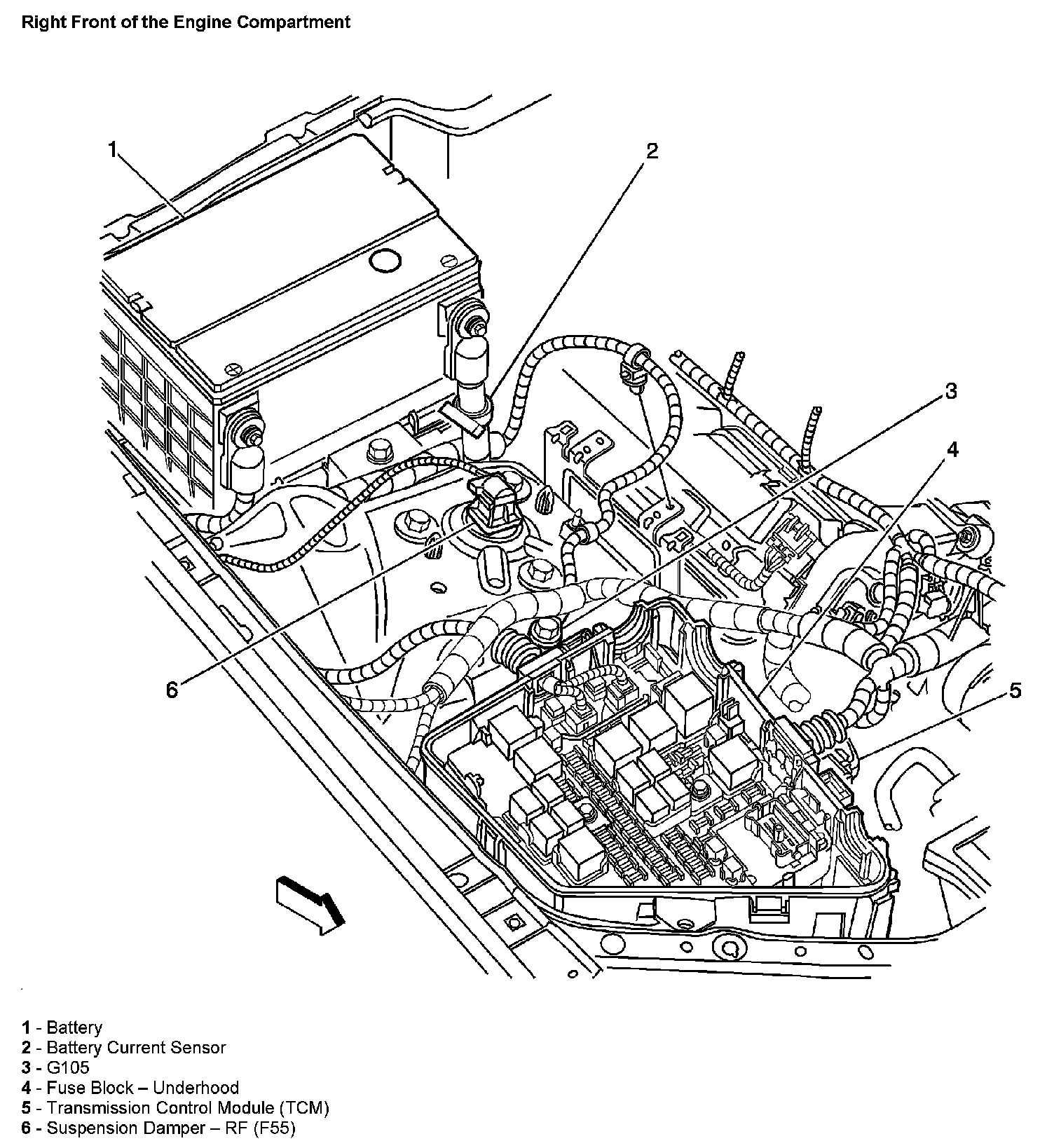

Right Front Of The Engine Compartment:
