Fuse Block
Fuse Block

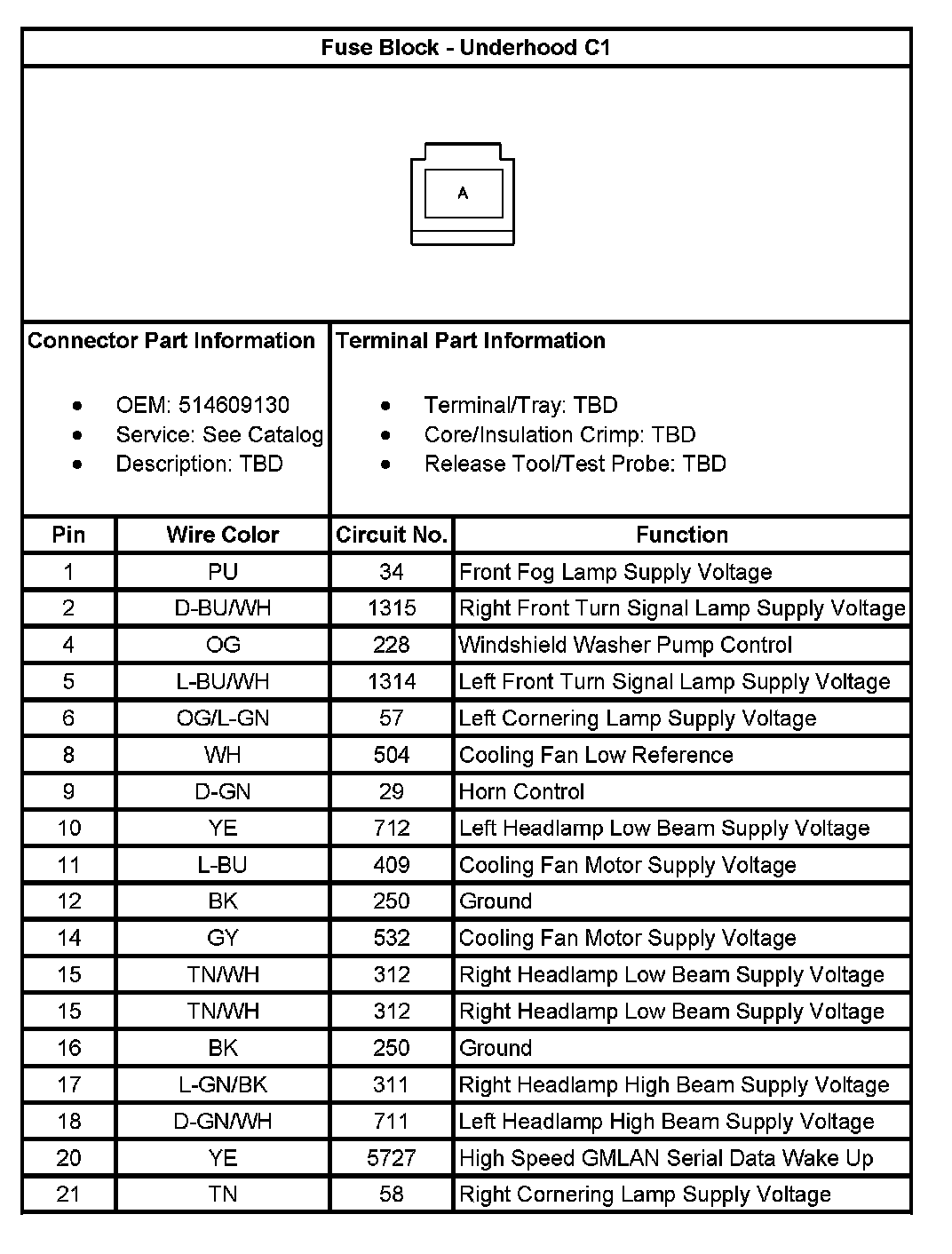

Fuse Block - Underhood C1:

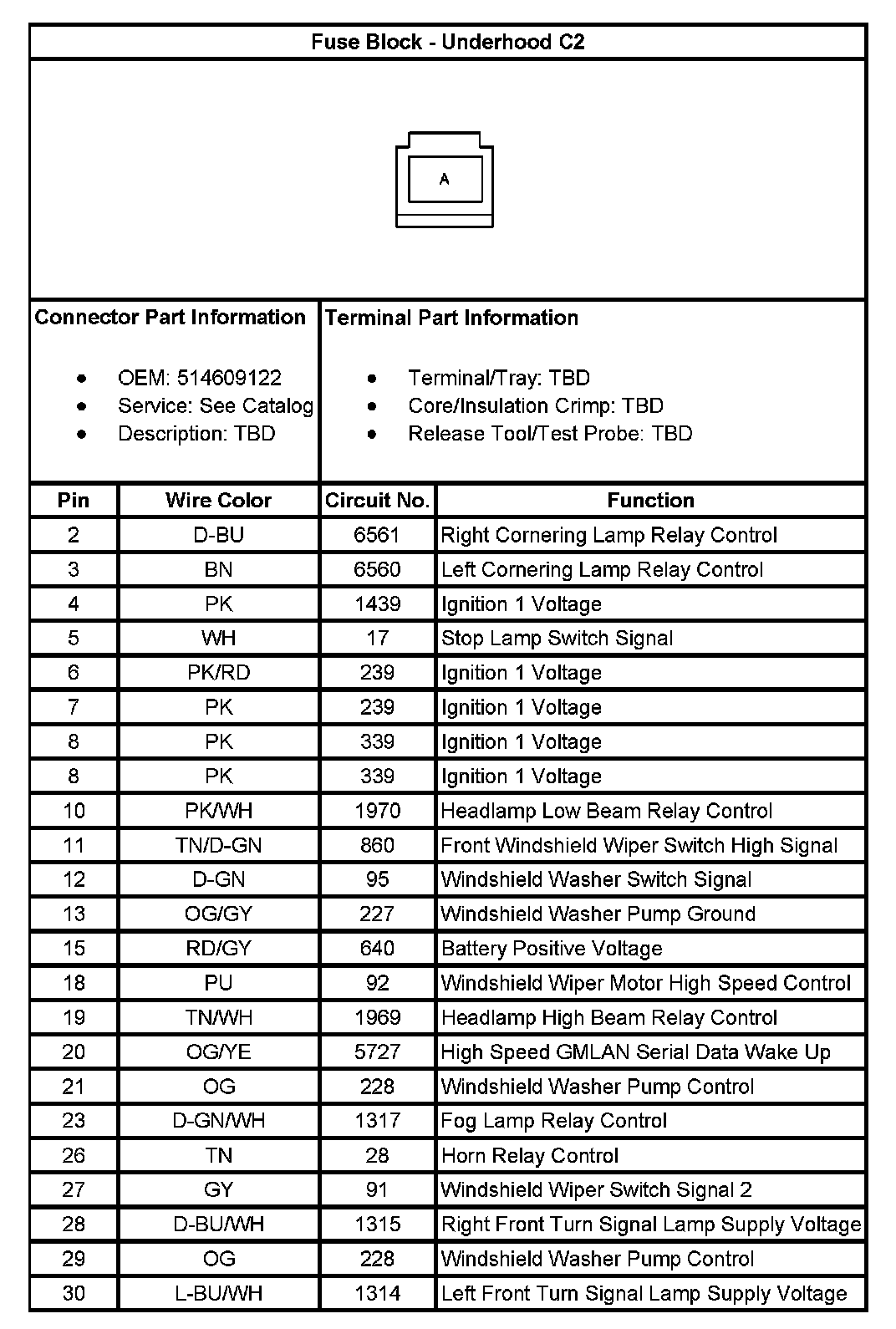

Fuse Block - Underhood C2:

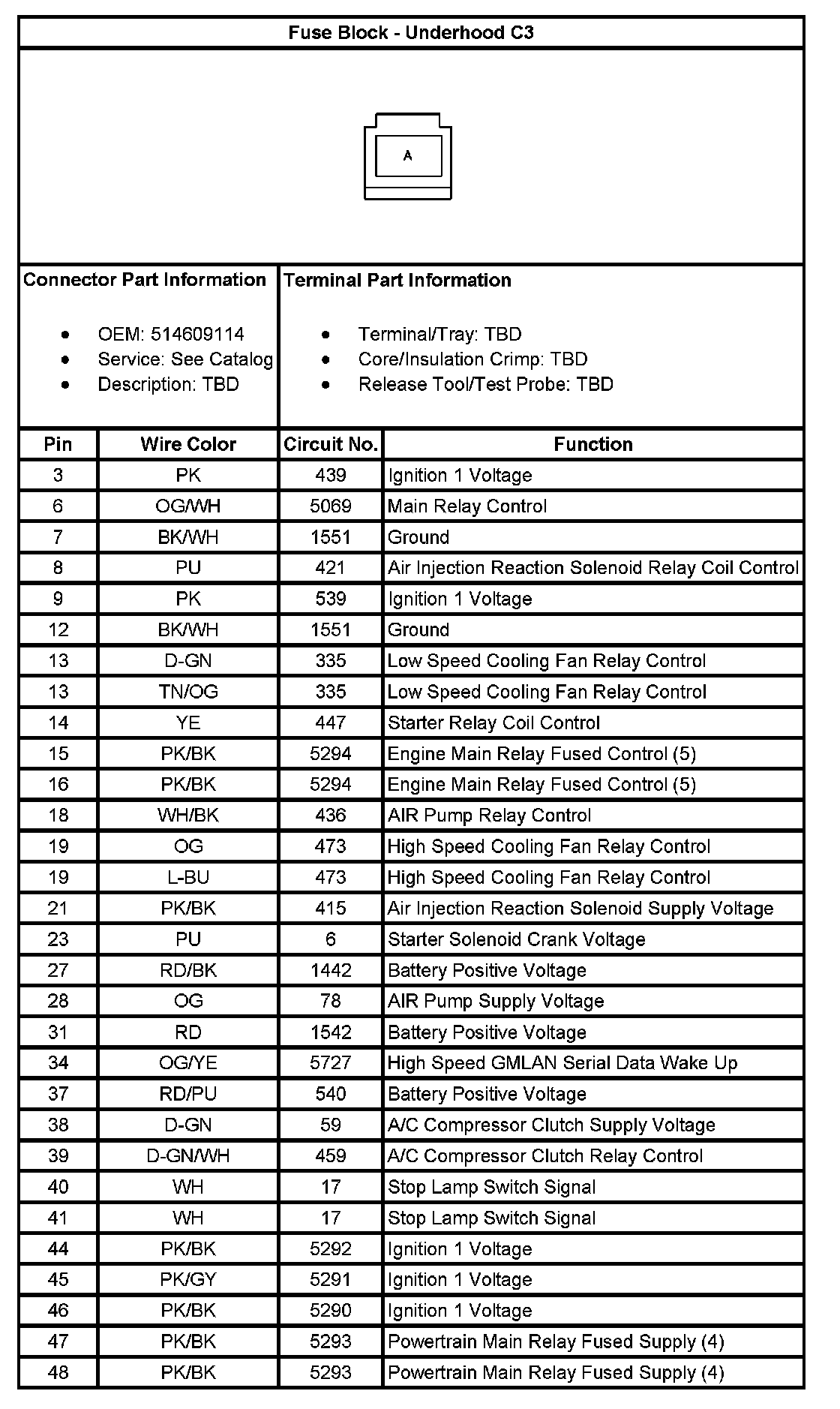

Fuse Block - Underhood C3:

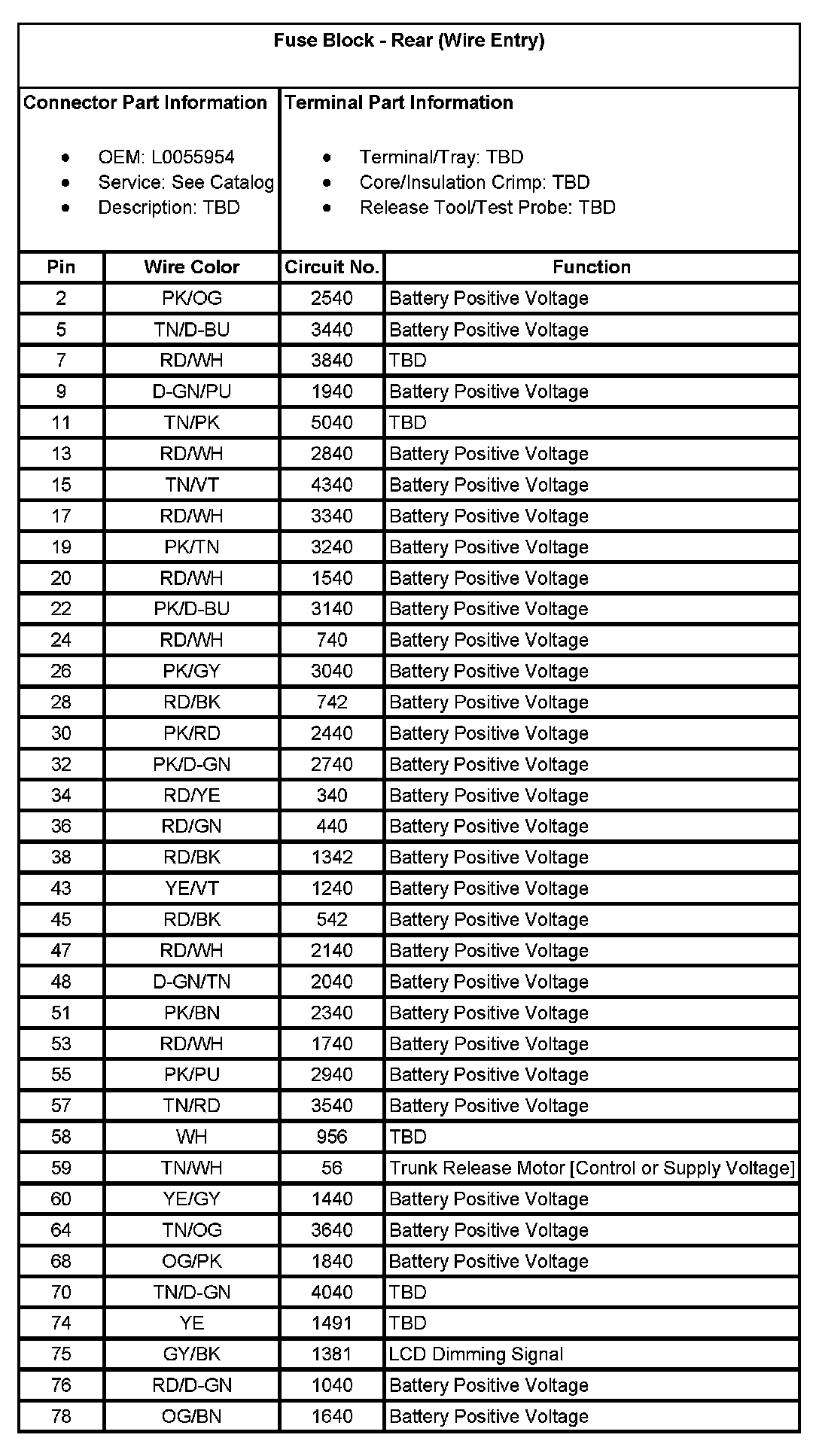

Fuse Block - Rear (Wire Entry) (Part 1):

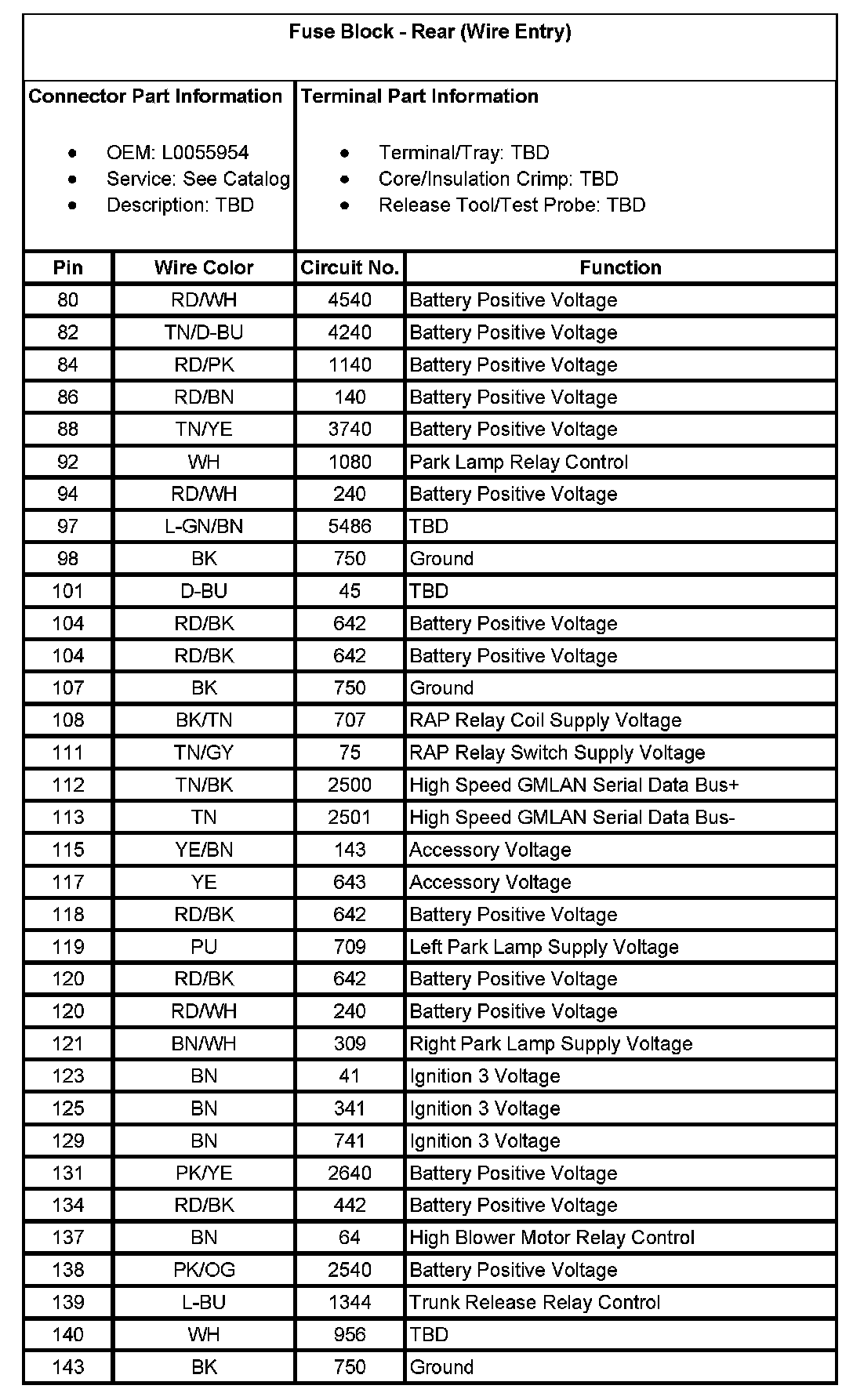

Fuse Block - Rear (Wire Entry) (Part 2):
