Home >> Cadillac >> 2006 >> DTS V8-4.6L VIN 9 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Control Module >> Diagrams

Control Module: Diagrams

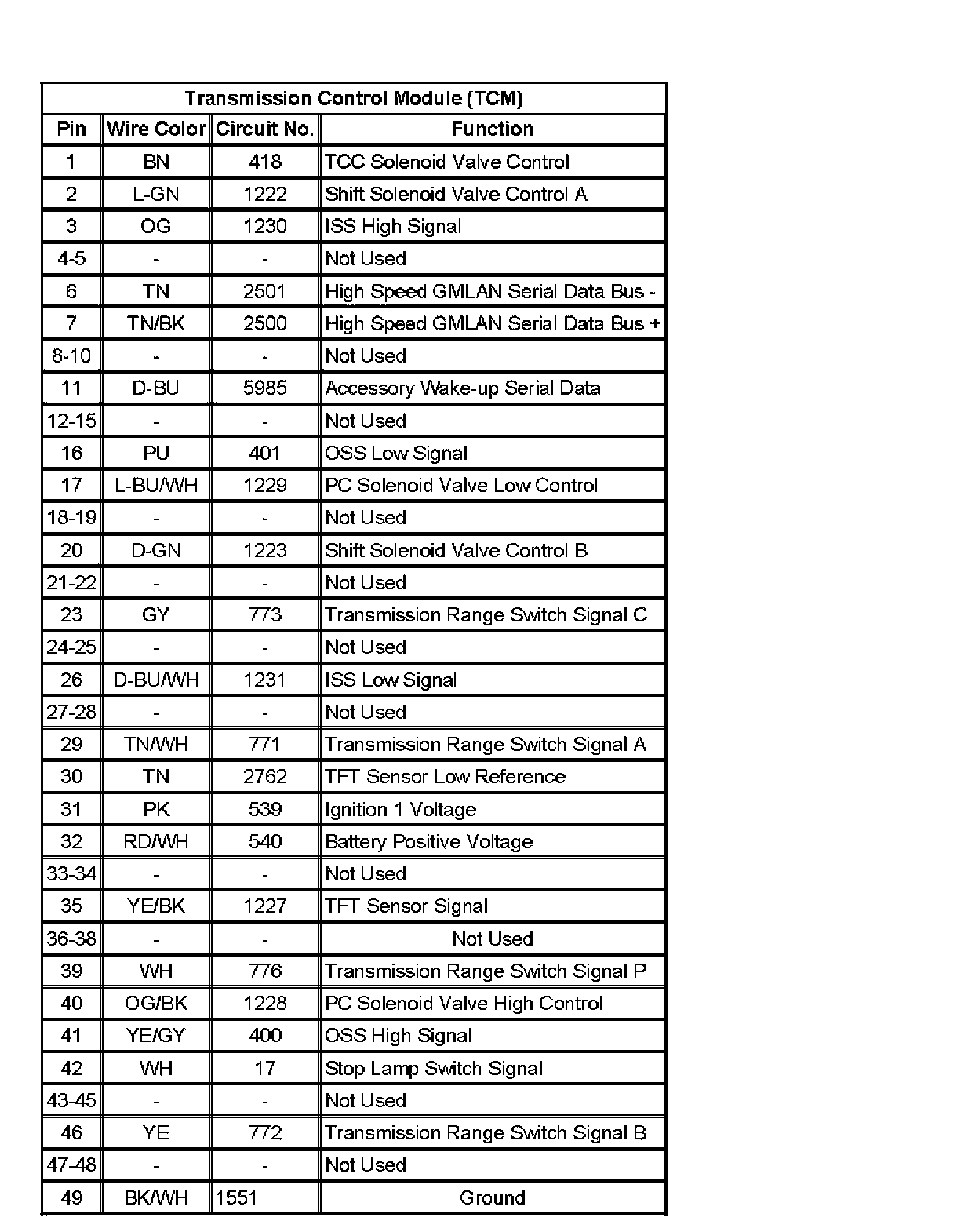

Transmission Control Module (TCM)
