Home >> Cadillac >> 2006 >> DTS V8-4.6L VIN 9 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

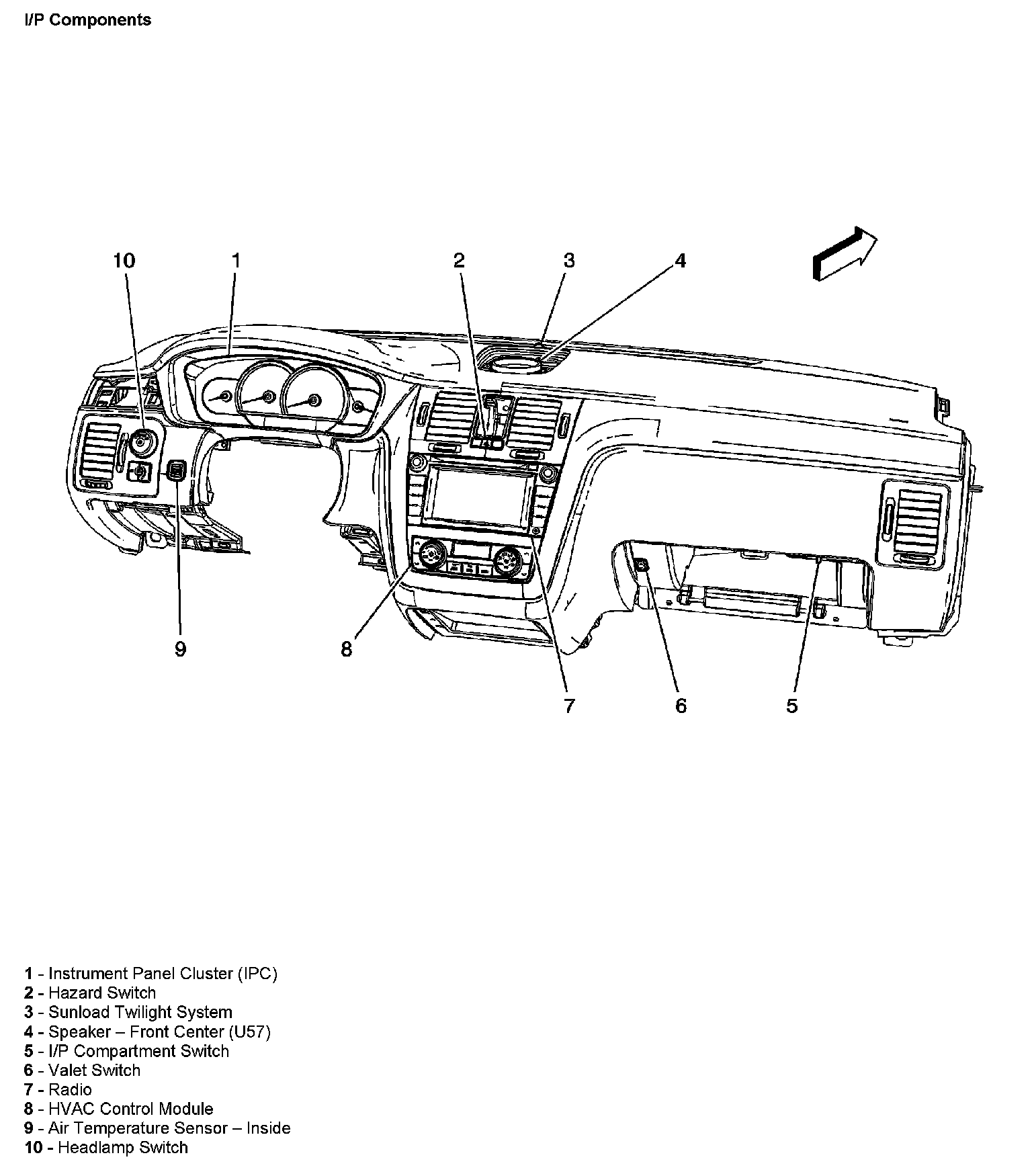

I/P Components:

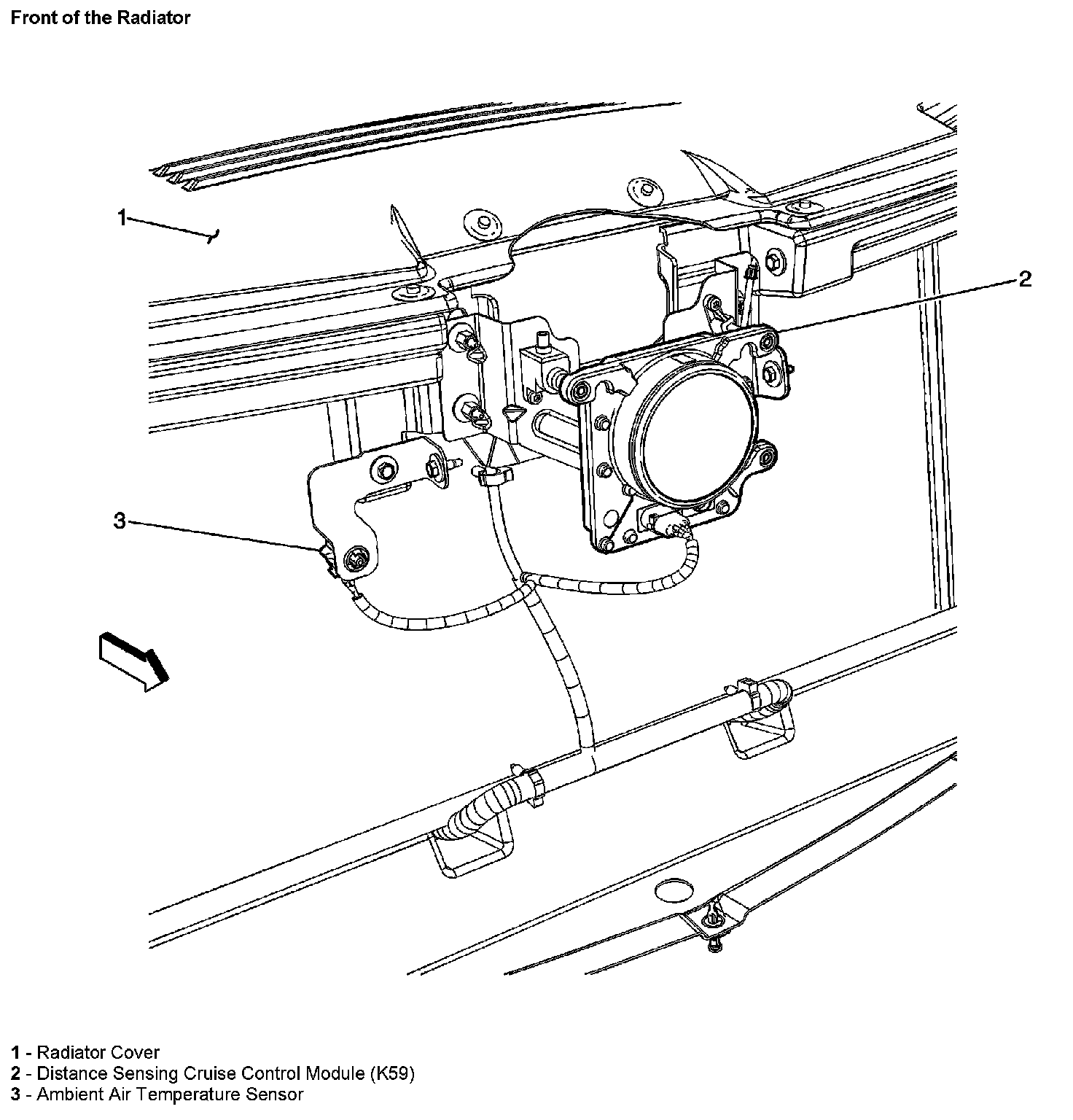

Front Of The Radiator:
