Home >> Cadillac >> 2006 >> CTS V6-2.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Scan Tool Testing and Procedures >> Generic Scan Tool (GST)

Generic Scan Tool (GST)

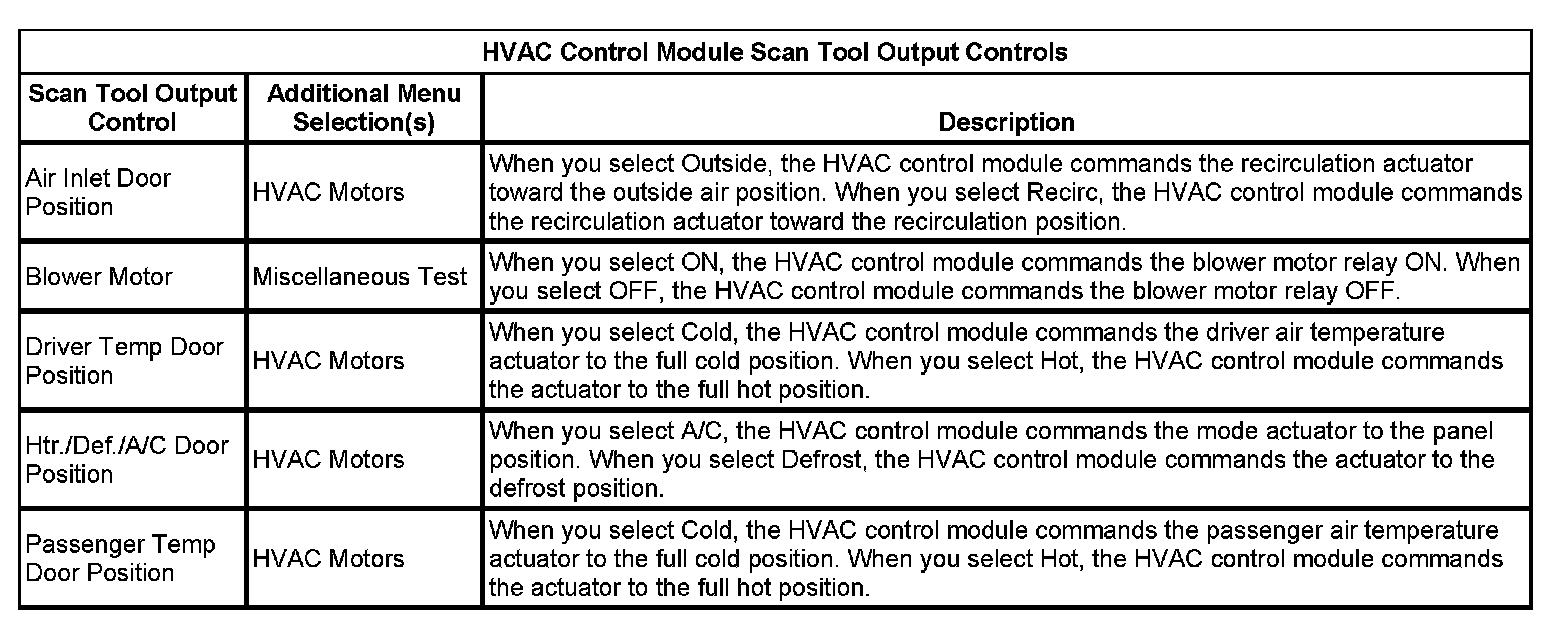

HVAC Control Module Scan Tool Output Controls:



ECM Scan Tool Output Controls:
