Navigation System

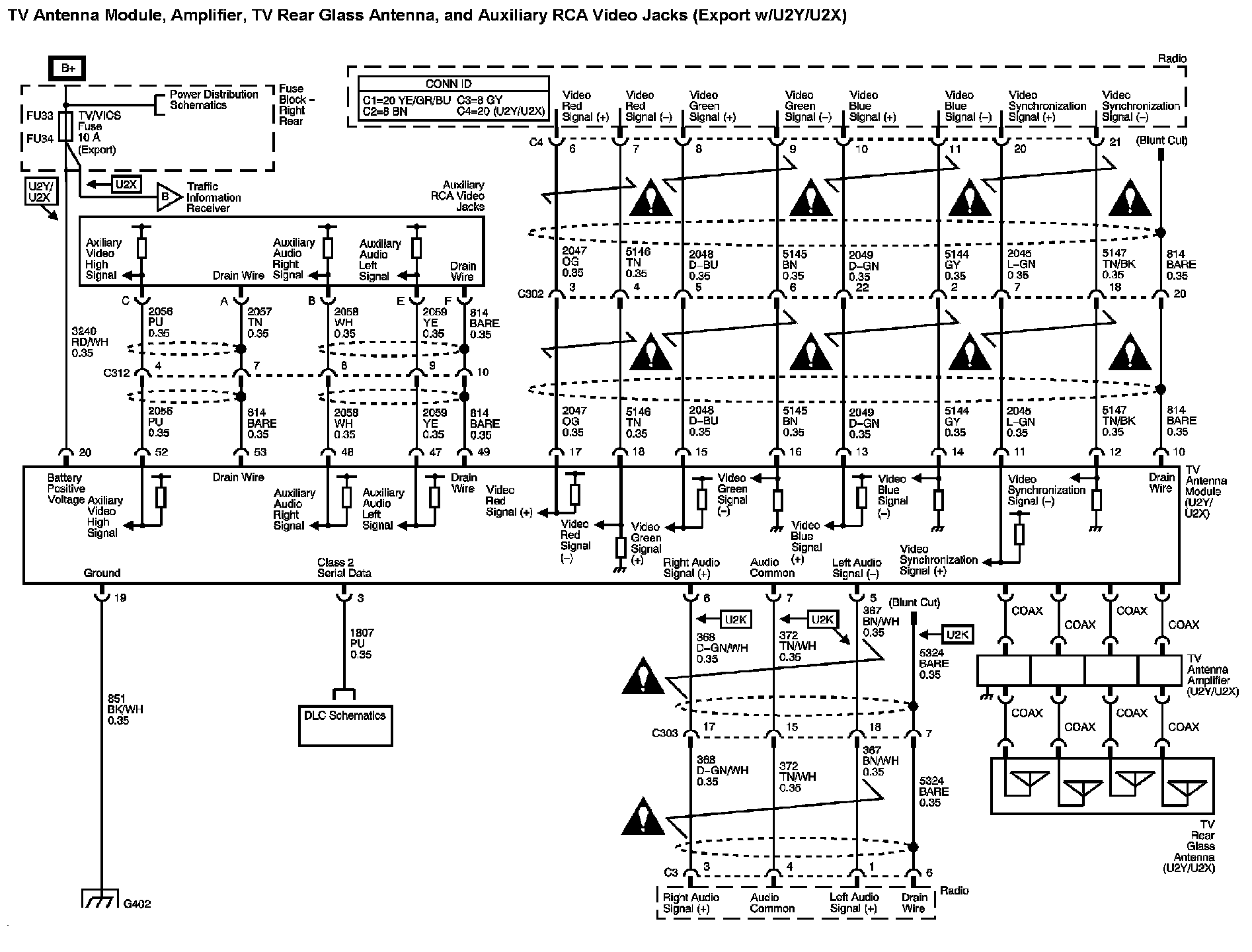

Navigation System Diagram 1:

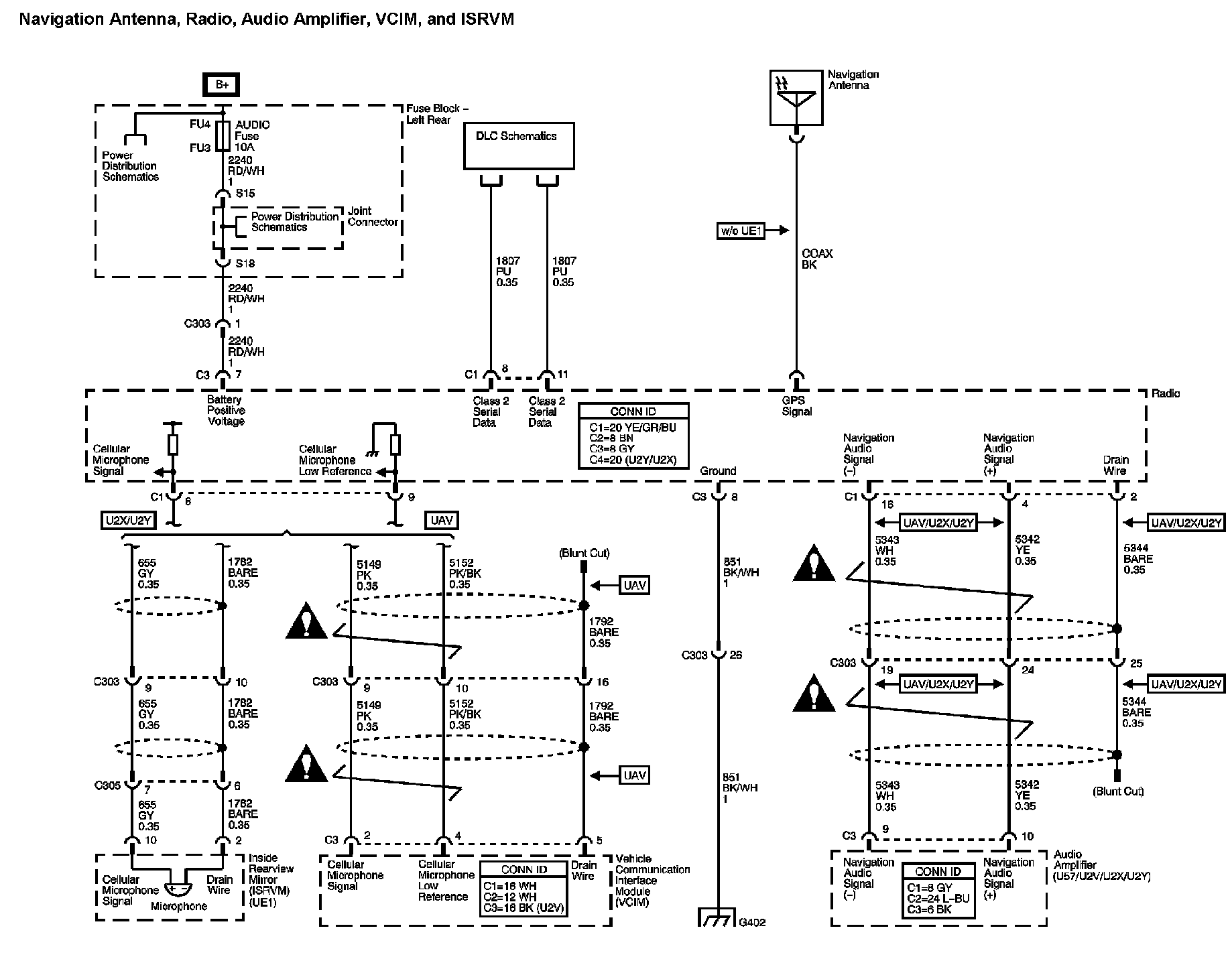

Navigation System Diagram 2:

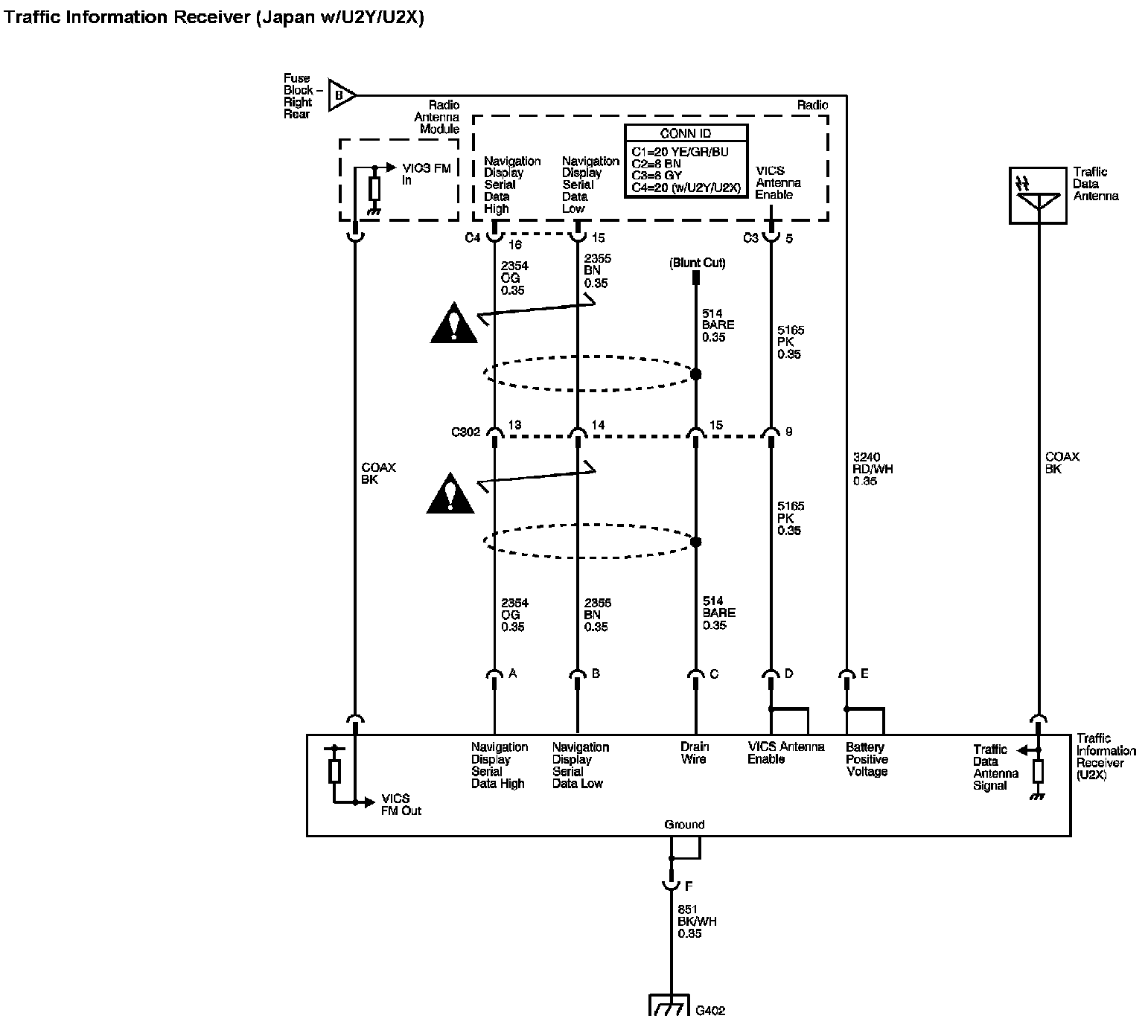

Navigation System Diagram 3:

Location: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
