Home >> Cadillac >> 2006 >> CTS V6-2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signals >> Combination Switch >> Turn Signal/Multifunction Switch C4

Turn Signal/Multifunction Switch C4

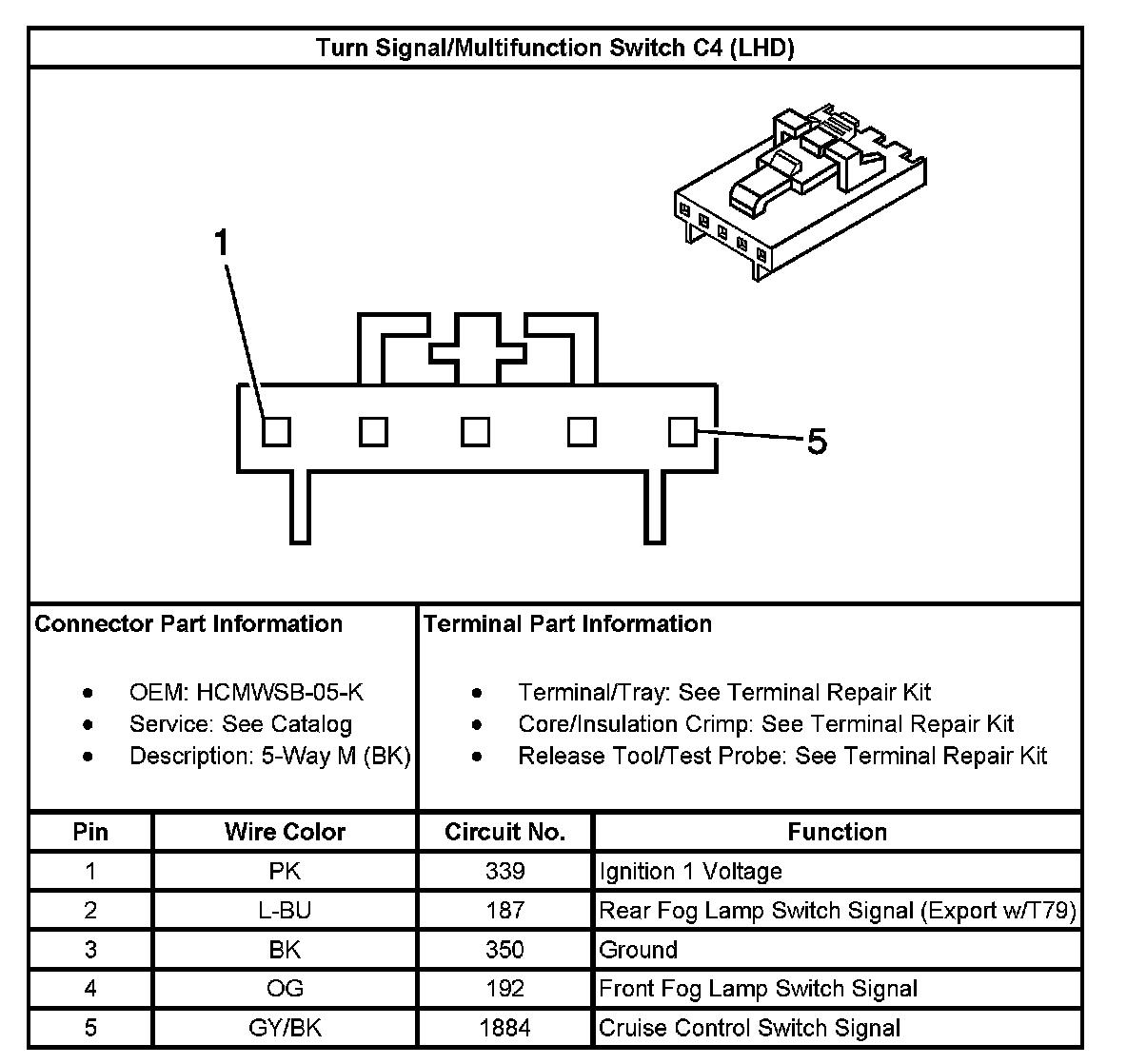

Turn Signal/Multifunction Switch C4 (LHD):

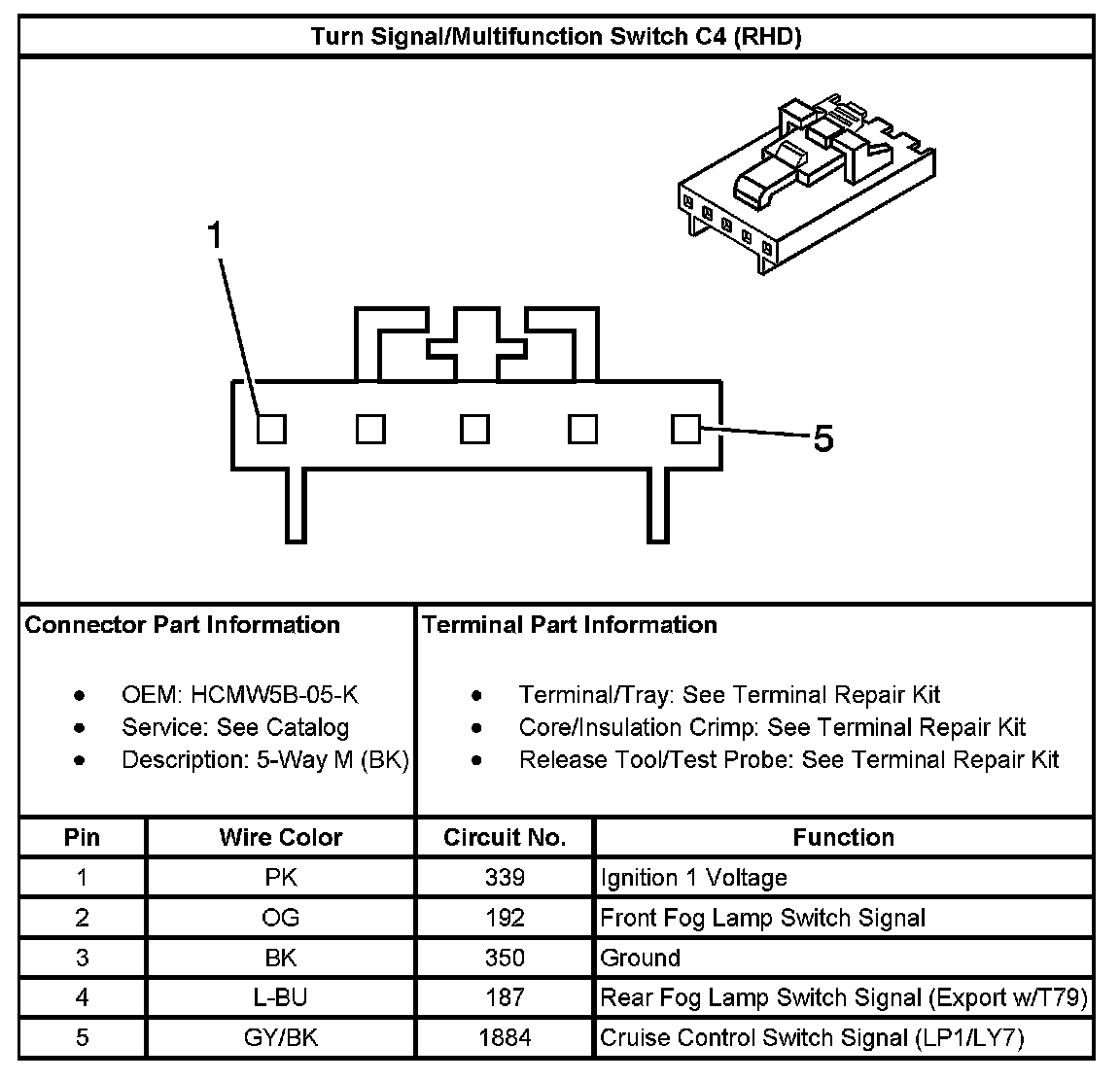

Turn Signal/Multifunction Switch C4 (RHD):
