Home >> Cadillac >> 2006 >> CTS V6-2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Switch

Door Switch

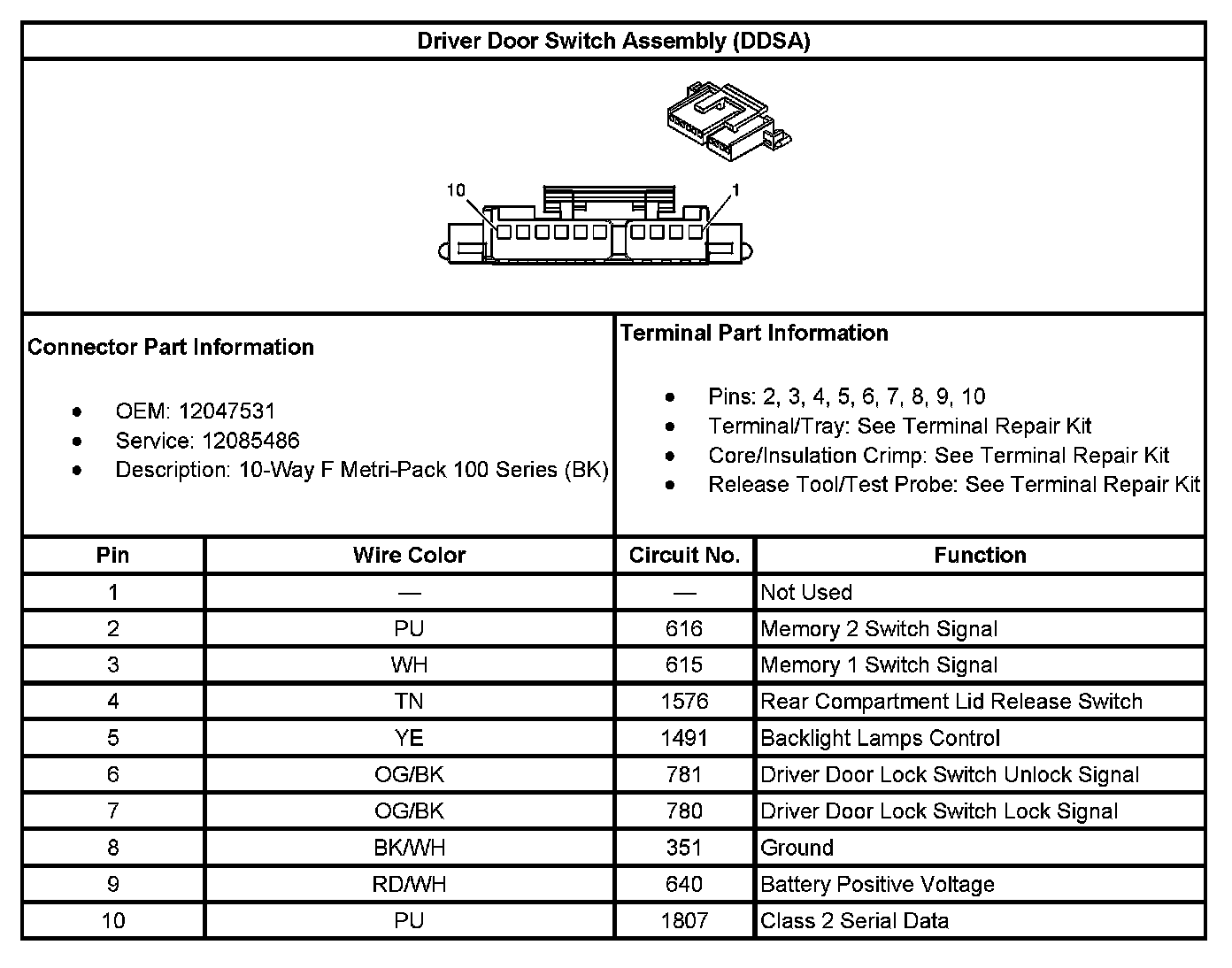

Driver Door Switch Assembly (DDSA):
