Door Module
>>
Right Rear Door Module (RRDM)
Right Rear Door Module (RRDM)
Right Rear Door Module (RRDM) C1:

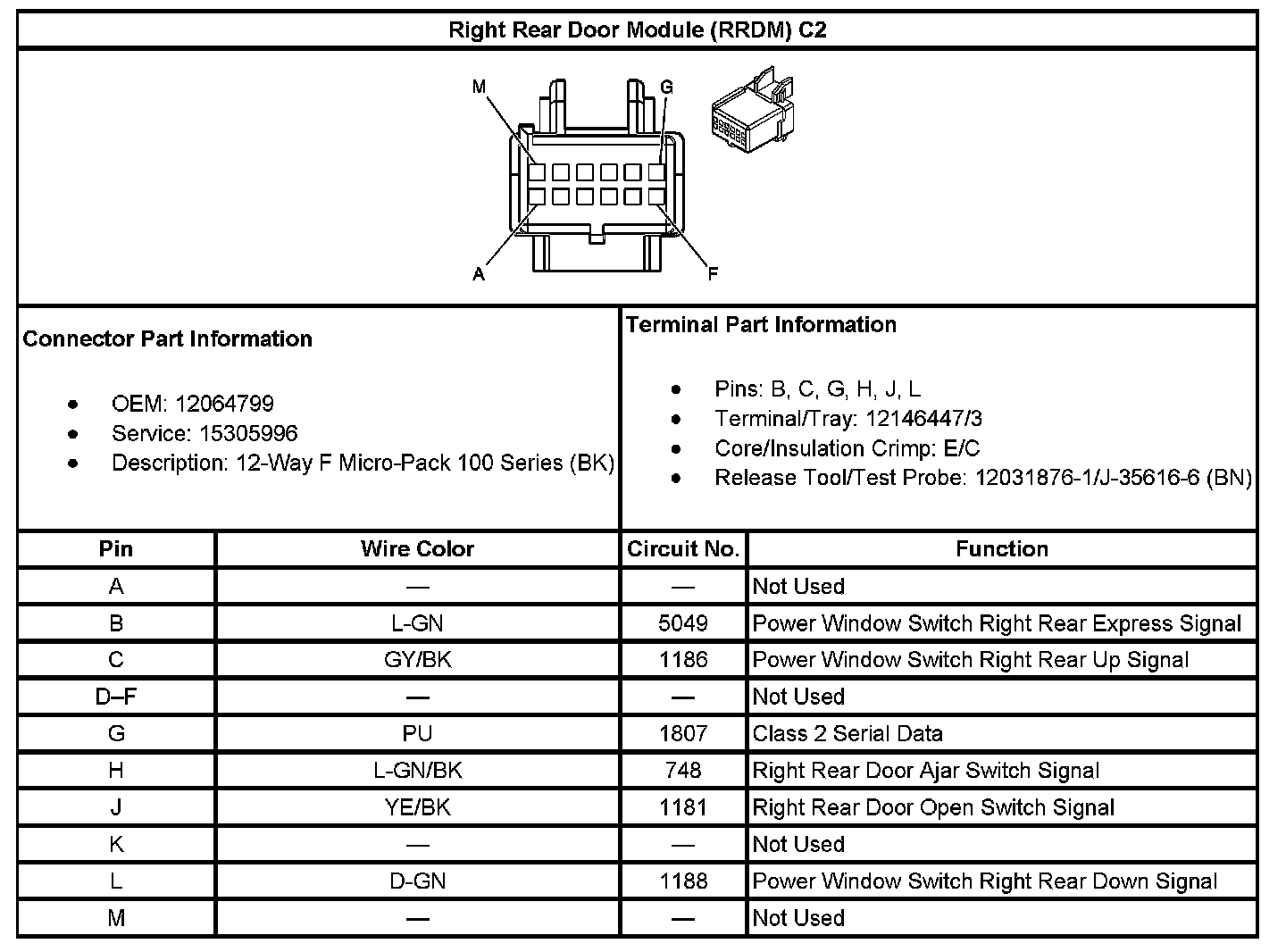

Right Rear Door Module (RRDM) C2:

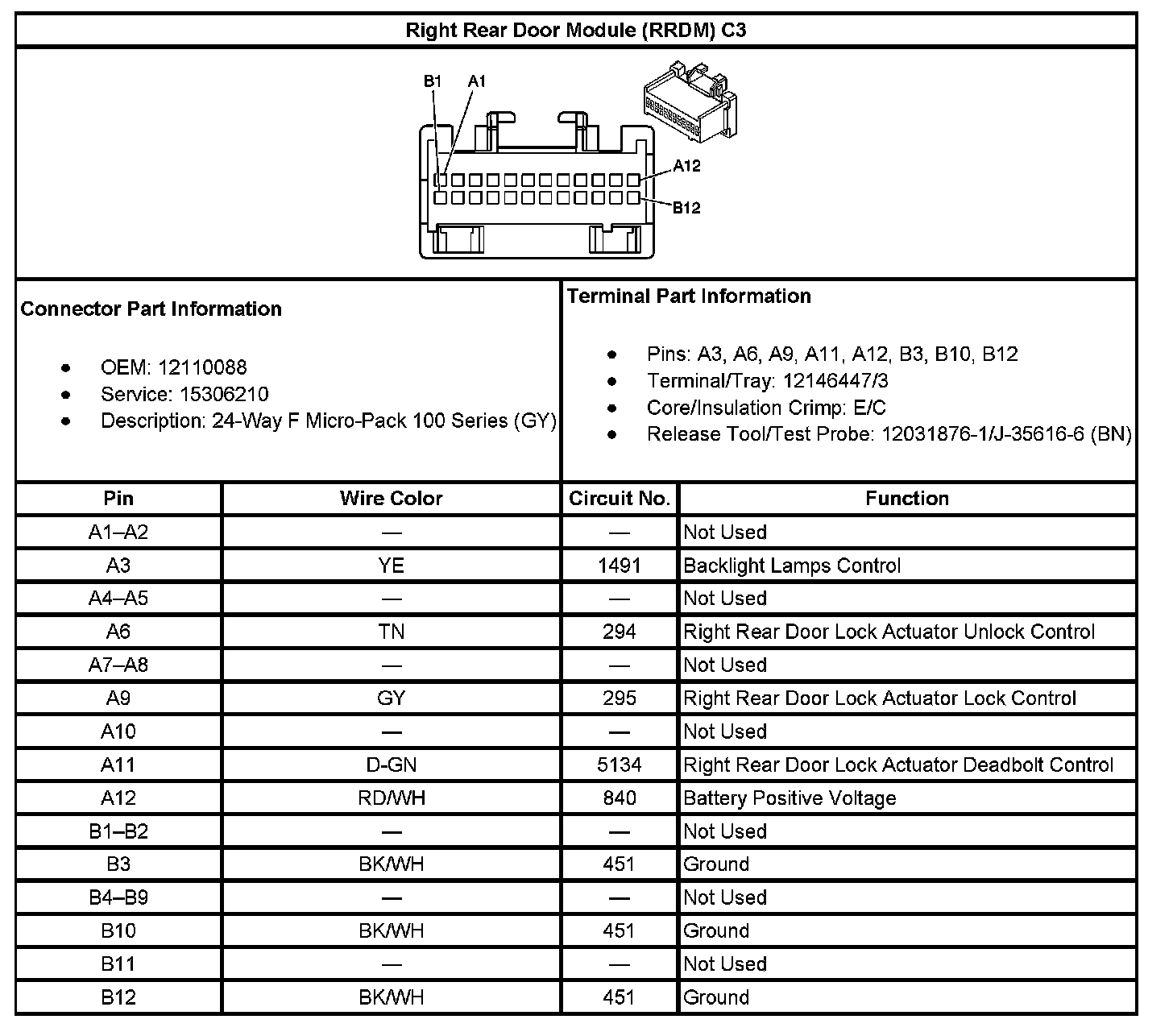

Right Rear Door Module (RRDM) C3:
