Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

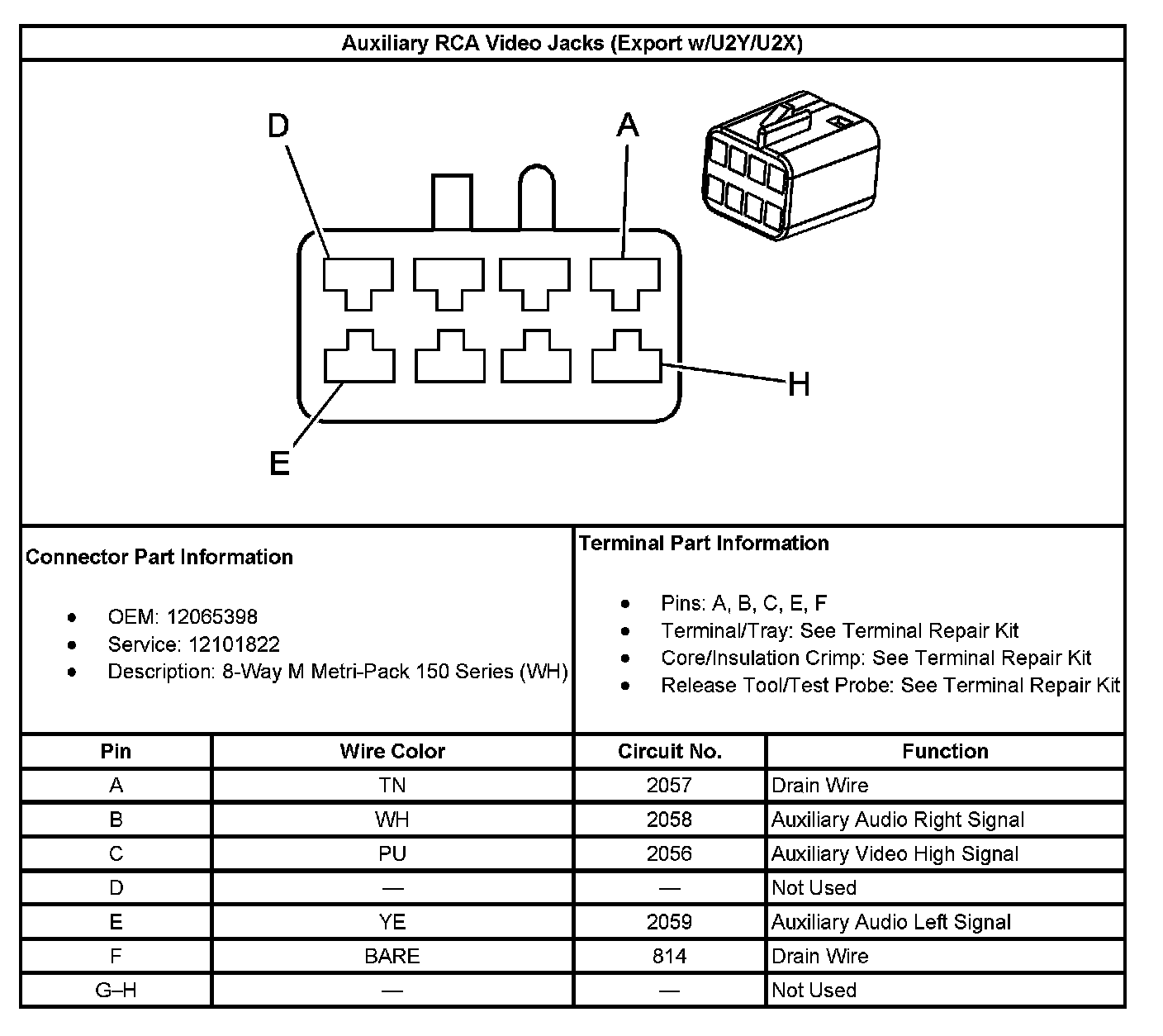

Auxiliary RCA Video Jacks (Export With RPO Code U2Y/U2X):
