Home >> Cadillac >> 2006 >> CTS V6-2.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag >> Inflatable Restraint Passenger Presence System (PPS) Module

Inflatable Restraint Passenger Presence System (PPS) Module

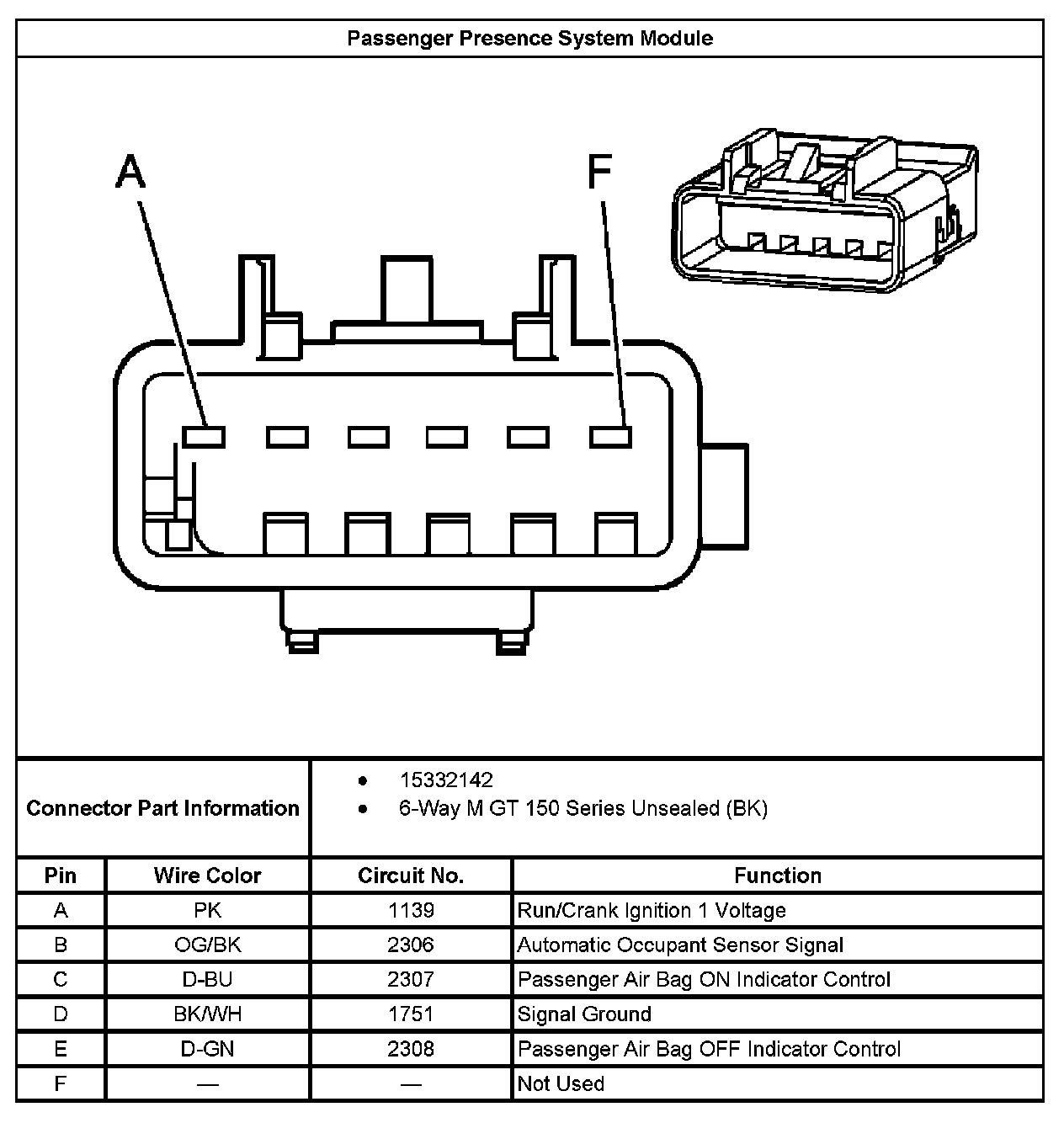

Passenger Presence System Module:
