Cadillac
>>
2006
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>
Inflatable Restraint Sensing And Diagnostic Module (SDM)
Inflatable Restraint Sensing And Diagnostic Module (SDM)

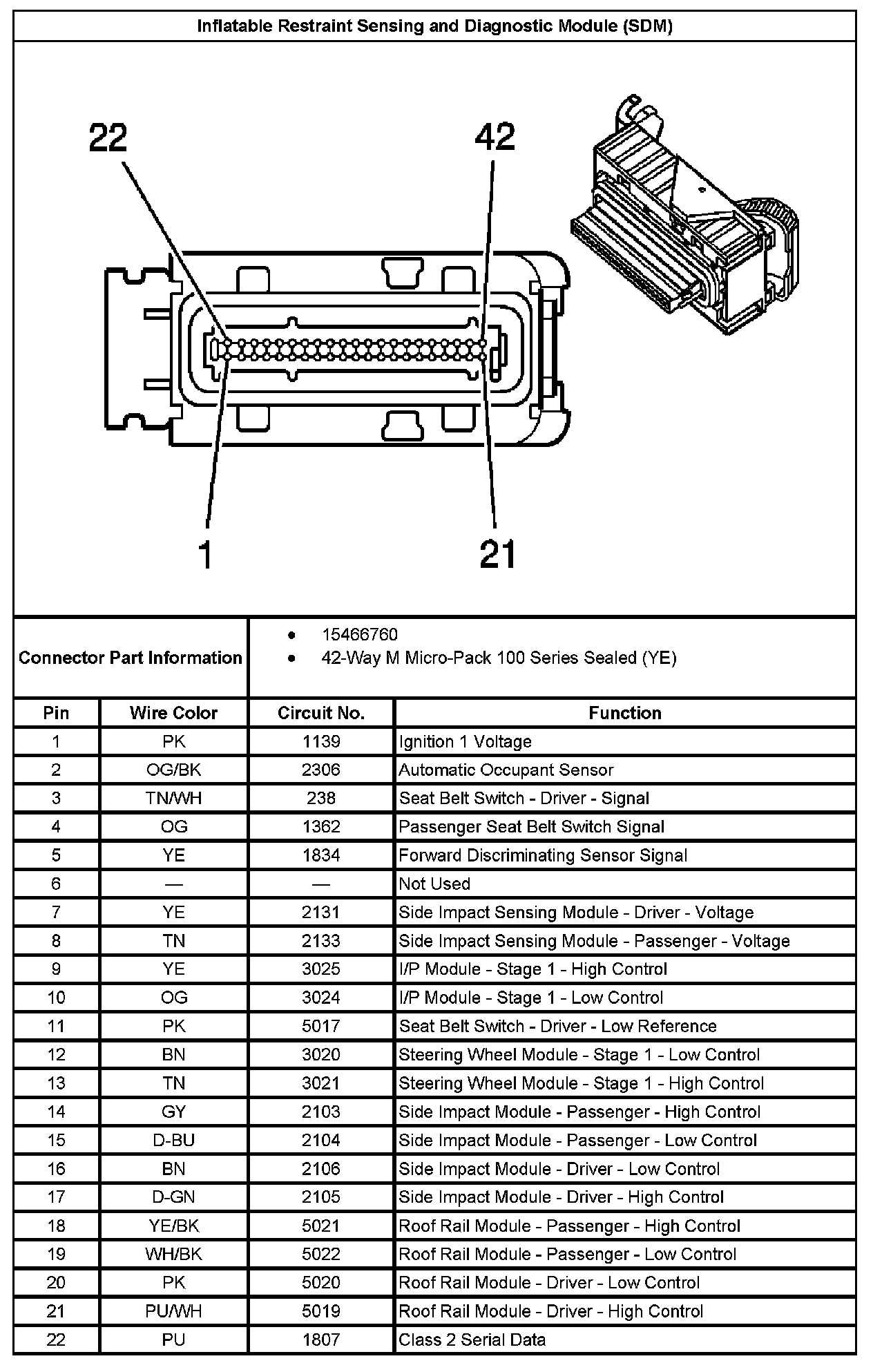

Inflatable Restraint Sensing and Diagnostic Module (SDM) Part 1:

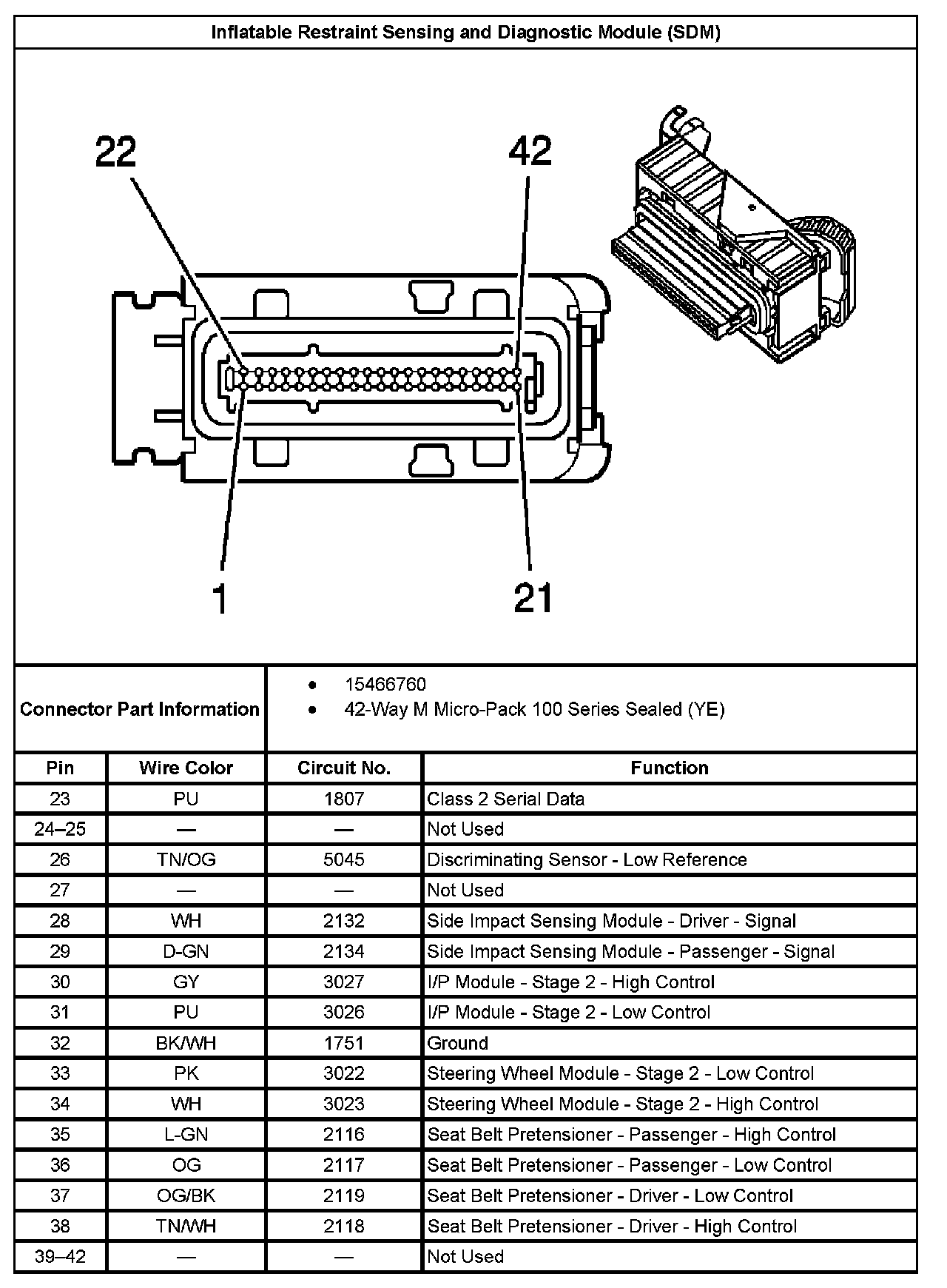

Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 2:
