Cadillac
>>
2005
>>
XLR V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

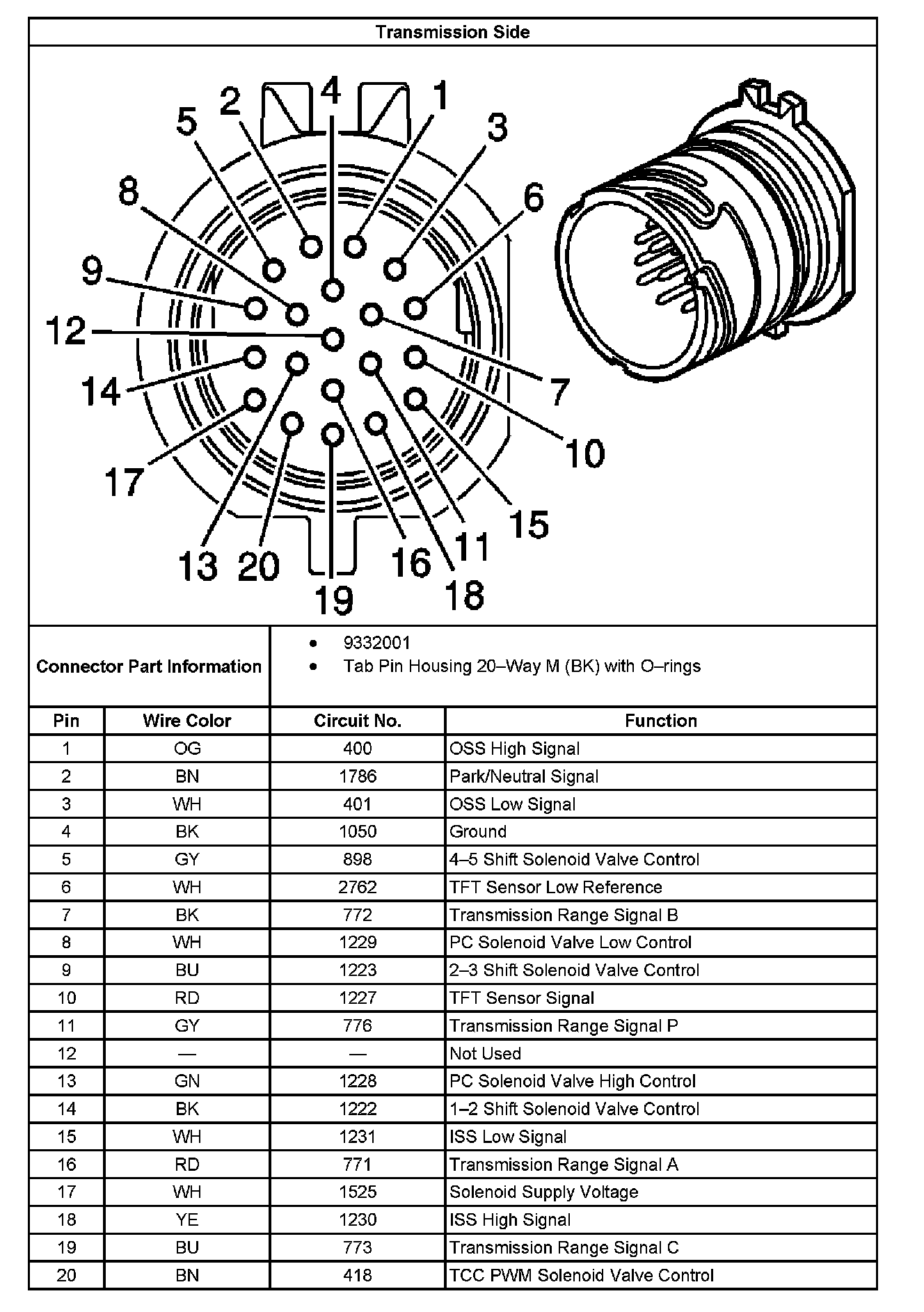

Automatic Transmission Inline 20-Way Connector:

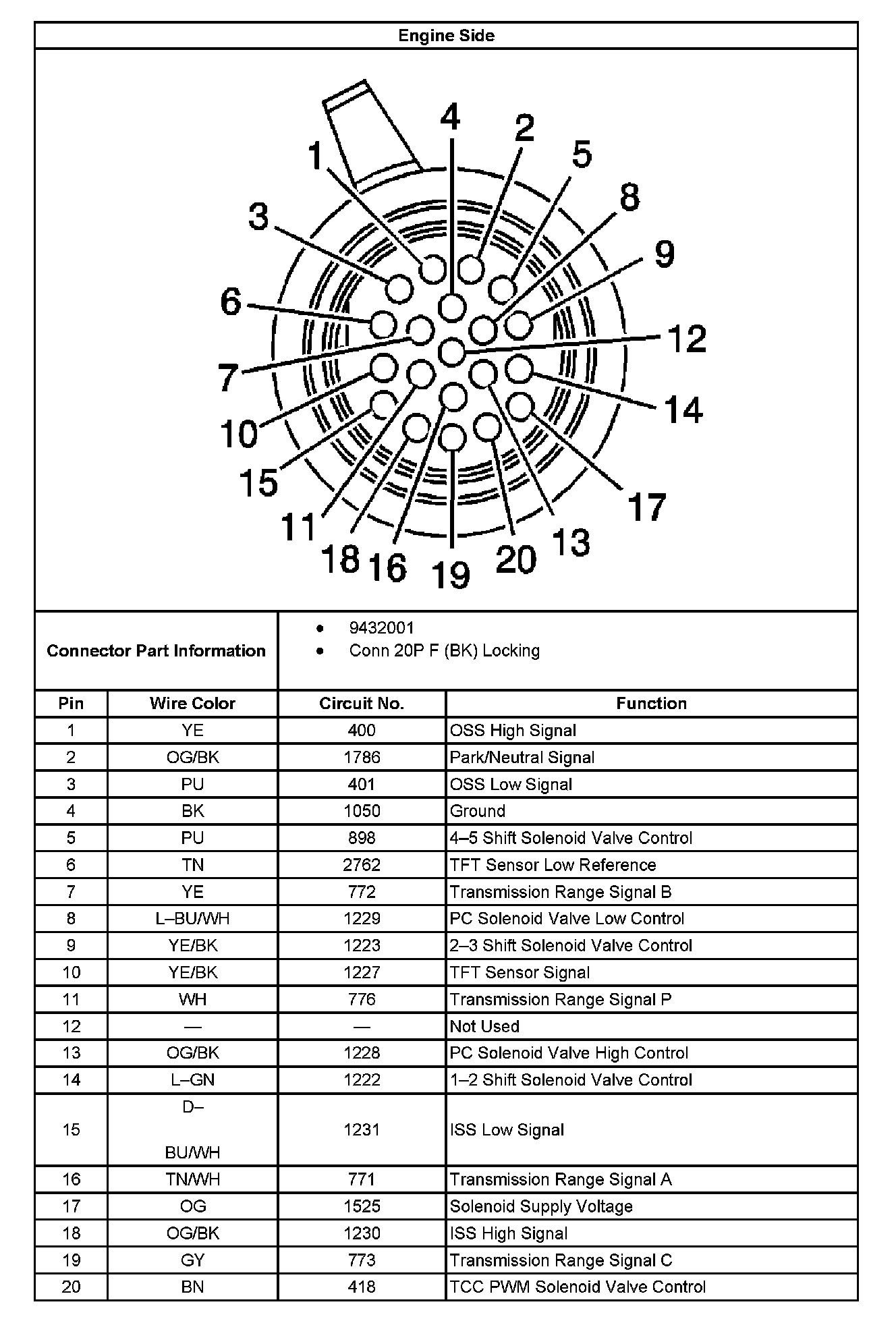

Automatic Transmission Inline 20-Way Connector:
