Keyless Entry Receiver

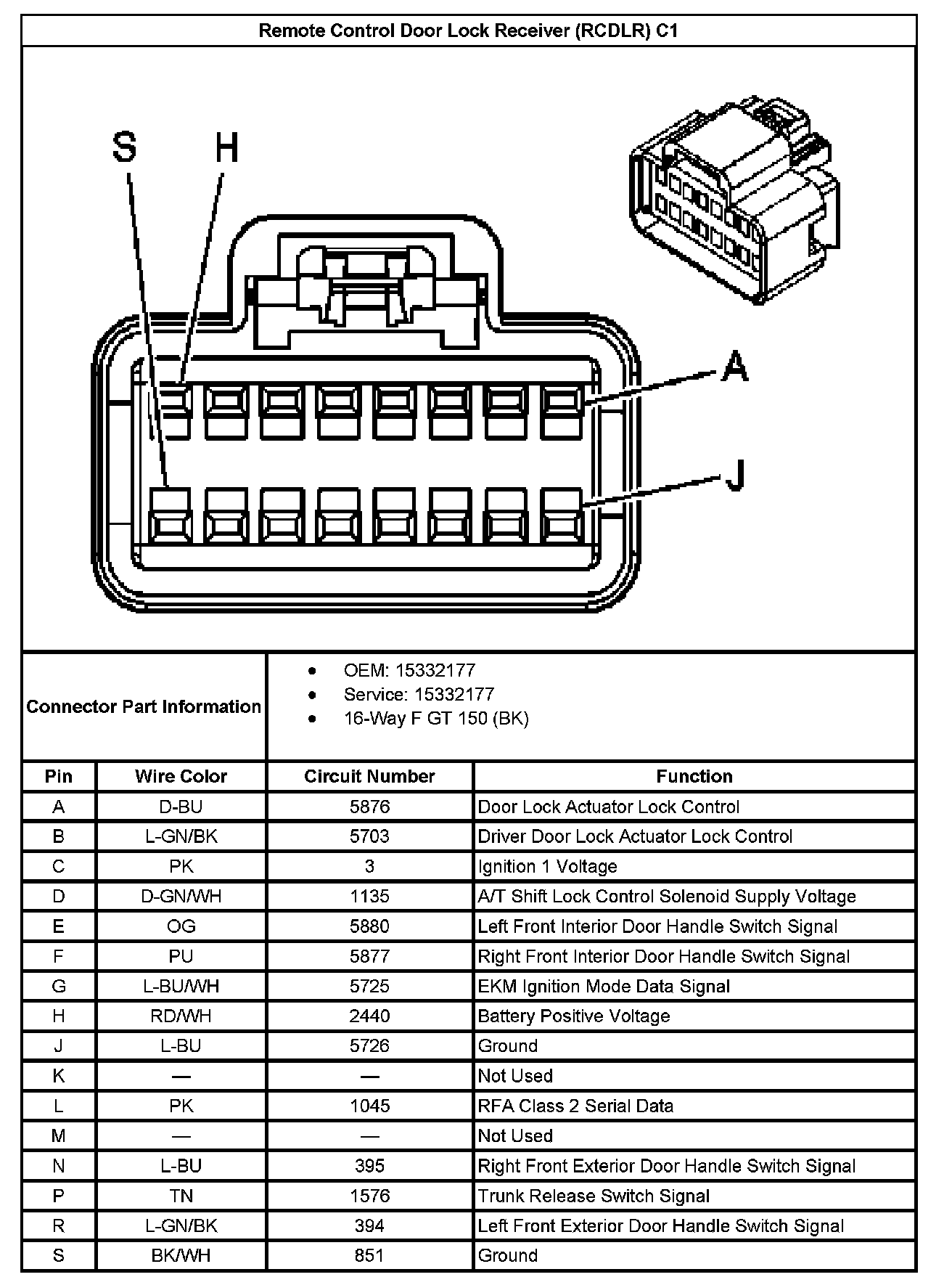

Remote Control Door Lock Receiver (RCDLR) C1:

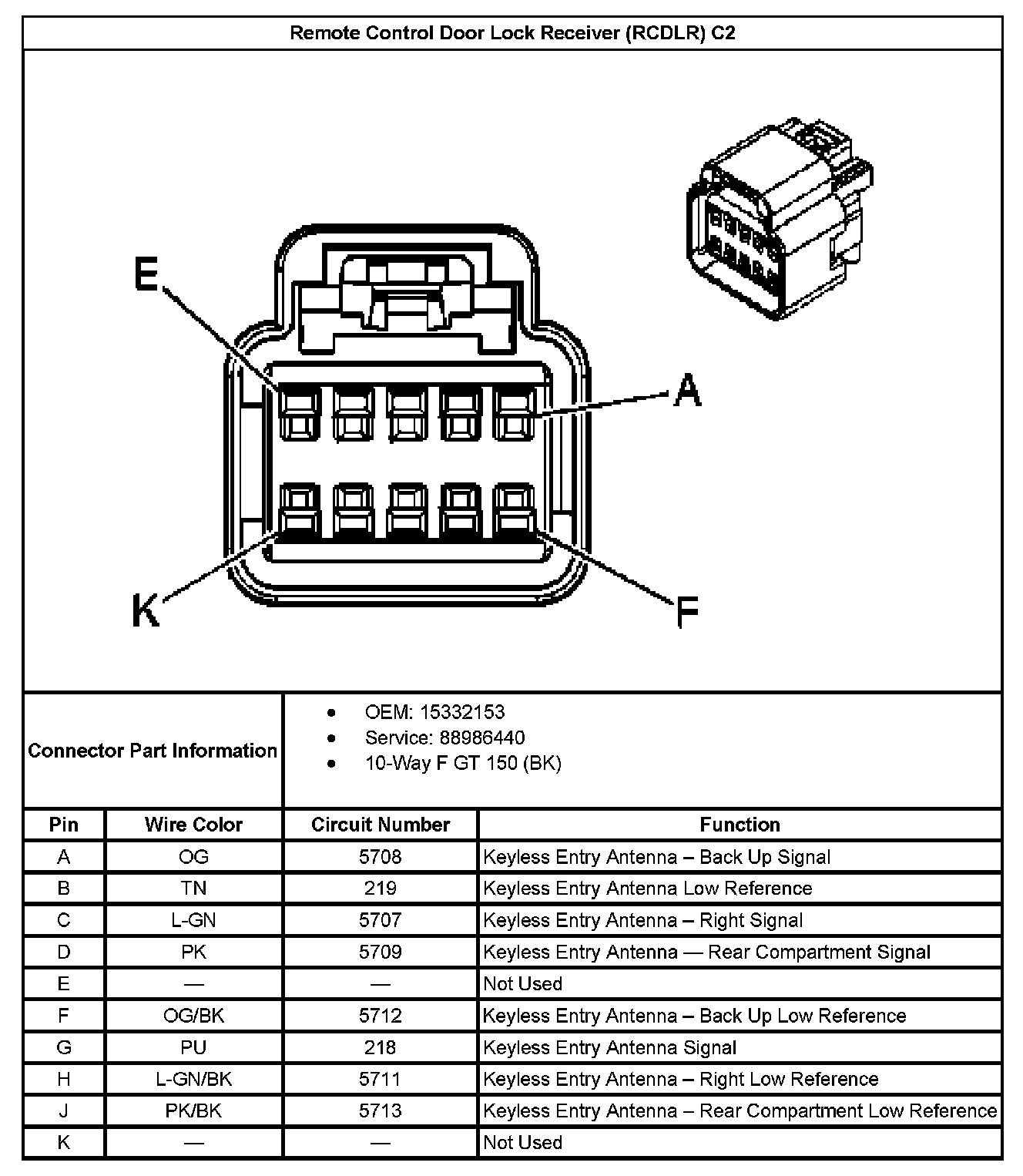

Remote Control Door Lock Receiver (RCDLR) C2:
