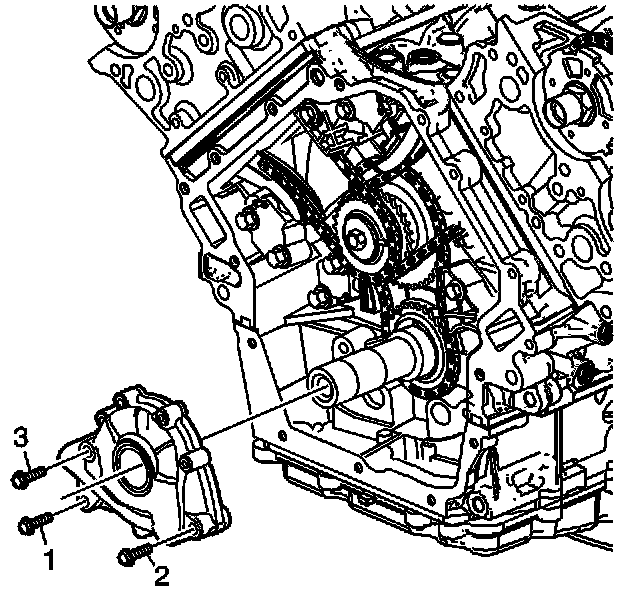

Oil Pump, Engine
Oil Pump
^ Cover Bolt 12 Nm (106 inch lbs.)
^ Mounting Bolt
^ First Pass 10 Nm (89 inch lbs.)
^ Final Pass 35 degrees
Oil Pump
^ Cover Bolt 12 Nm (106 inch lbs.)
^ Mounting Bolt
^ First Pass 10 Nm (89 inch lbs.)
^ Final Pass 35 degrees
