Keyless Entry Receiver
Keyless Entry Receiver

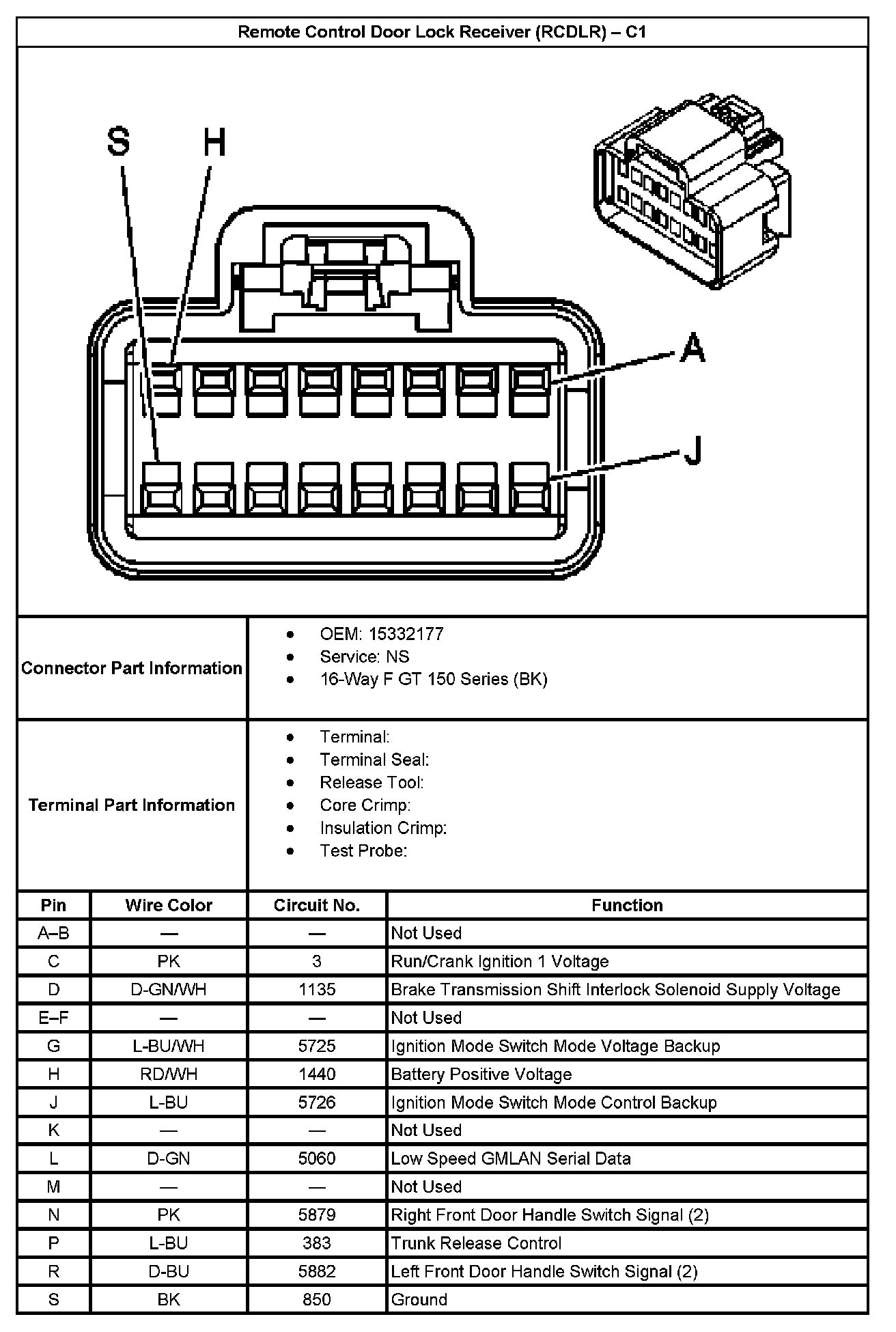

Remote Control Door Lock Receiver (RCDLR) - C1:

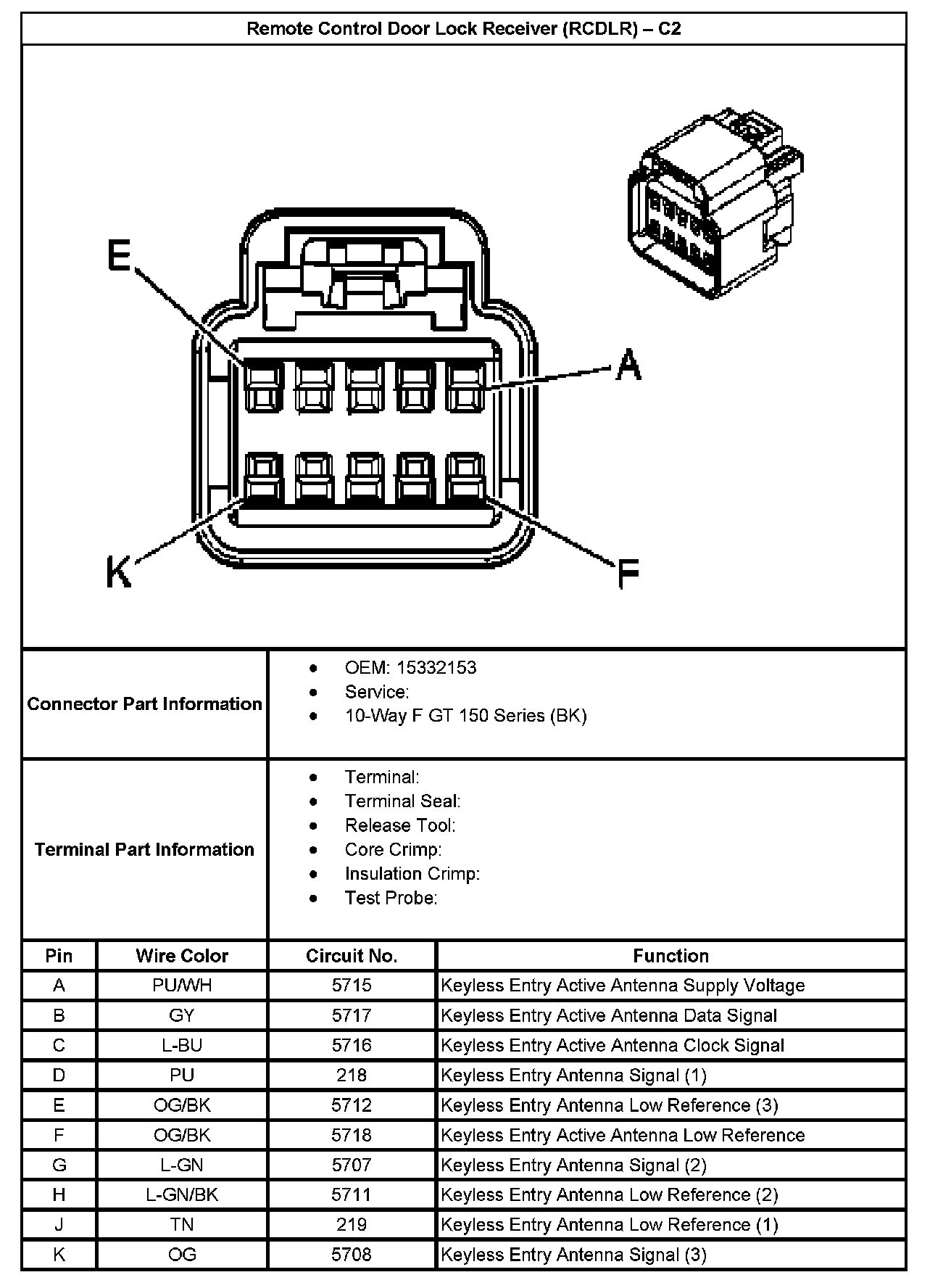

Remote Control Door Lock Receiver (RCDLR) - C2:

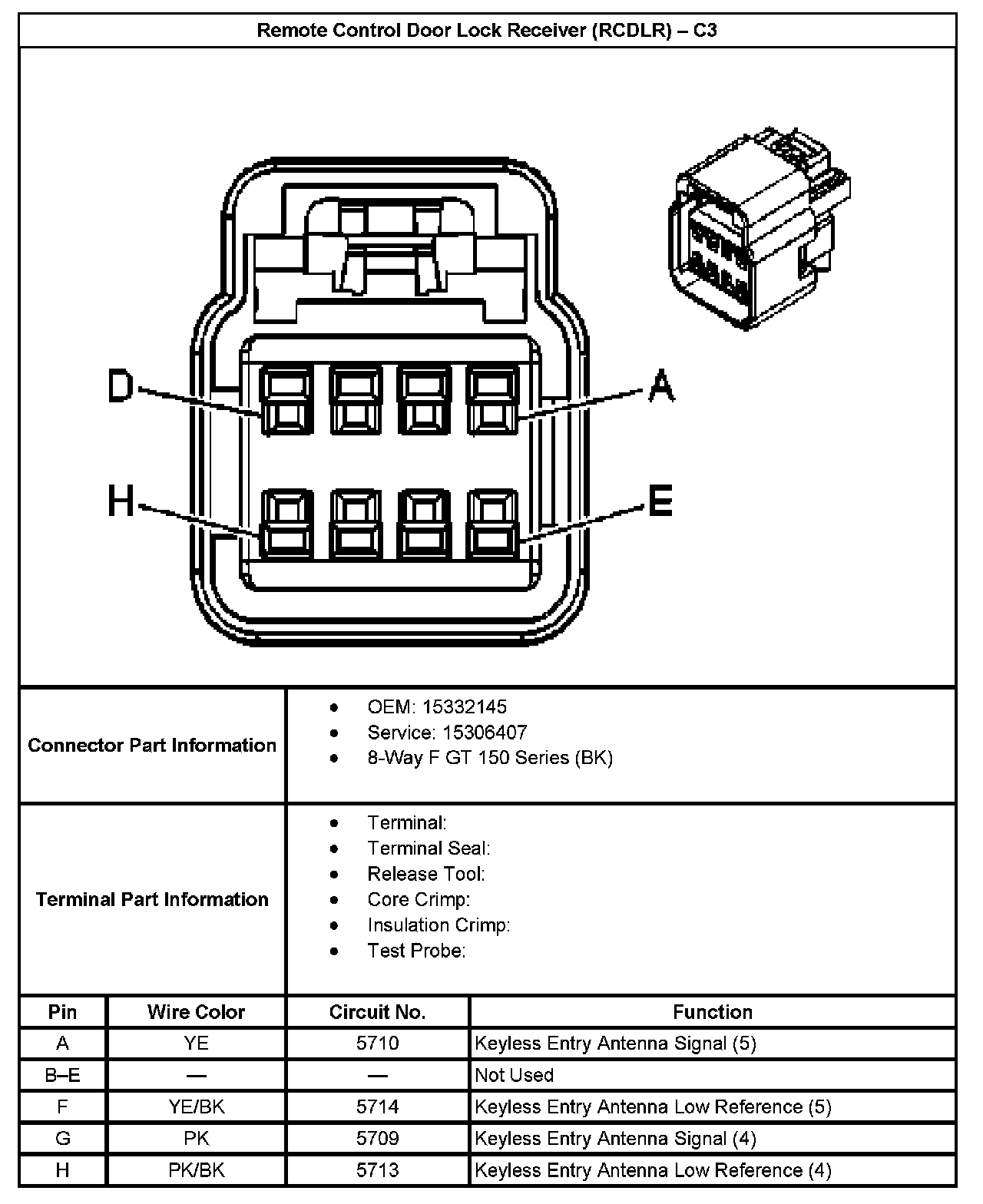

Remote Control Door Lock Receiver (RCDLR) - C3:
