Home >> Cadillac >> 2005 >> STS V8-4.6L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Inflatable Restraint Front End Sensor

Inflatable Restraint Front End Sensor

Inflatable Restraint Front End Sensor - Left:

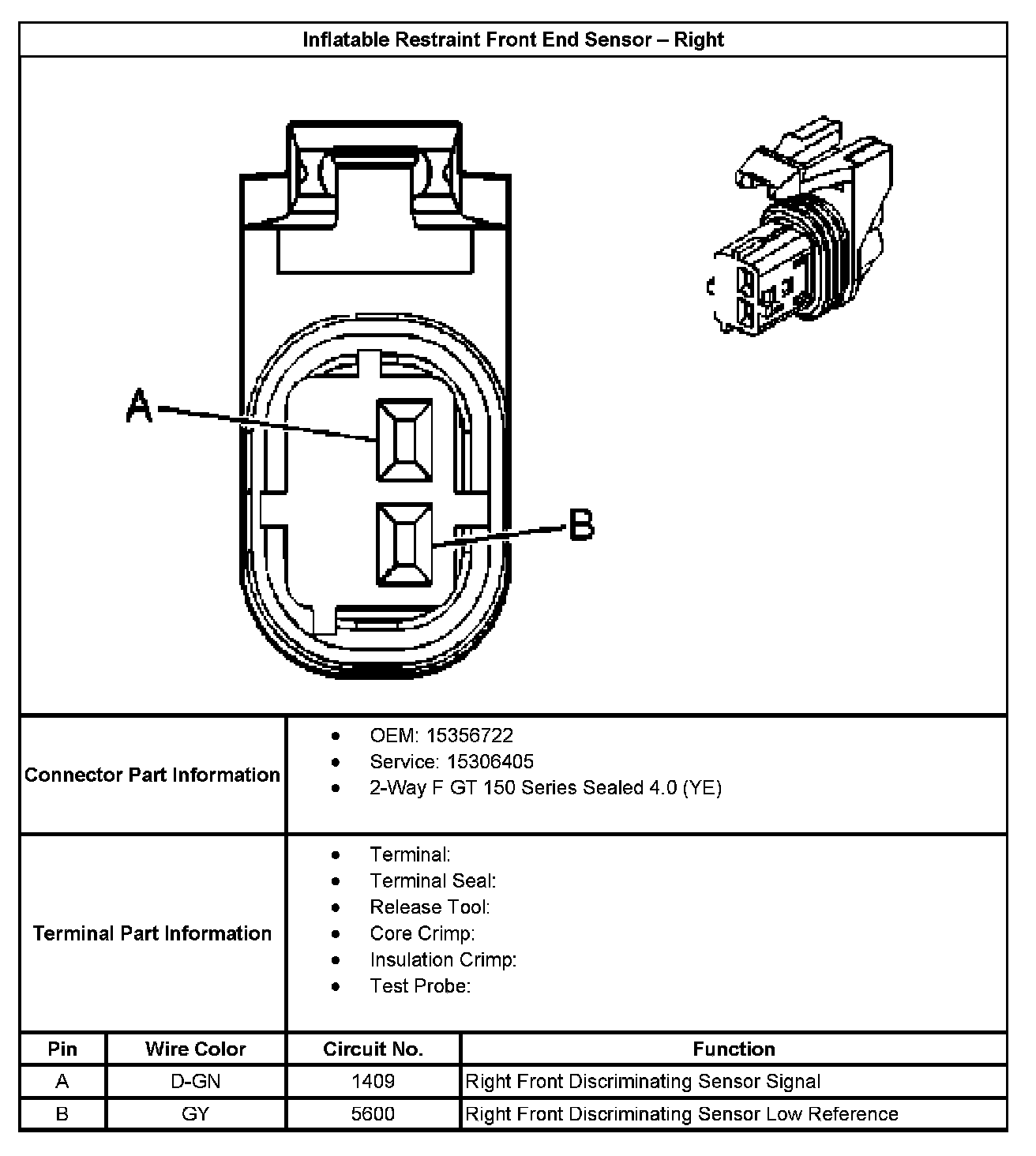

Inflatable Restraint Front End Sensor - Right:
