Instrument Panel Integration Module (IPM)

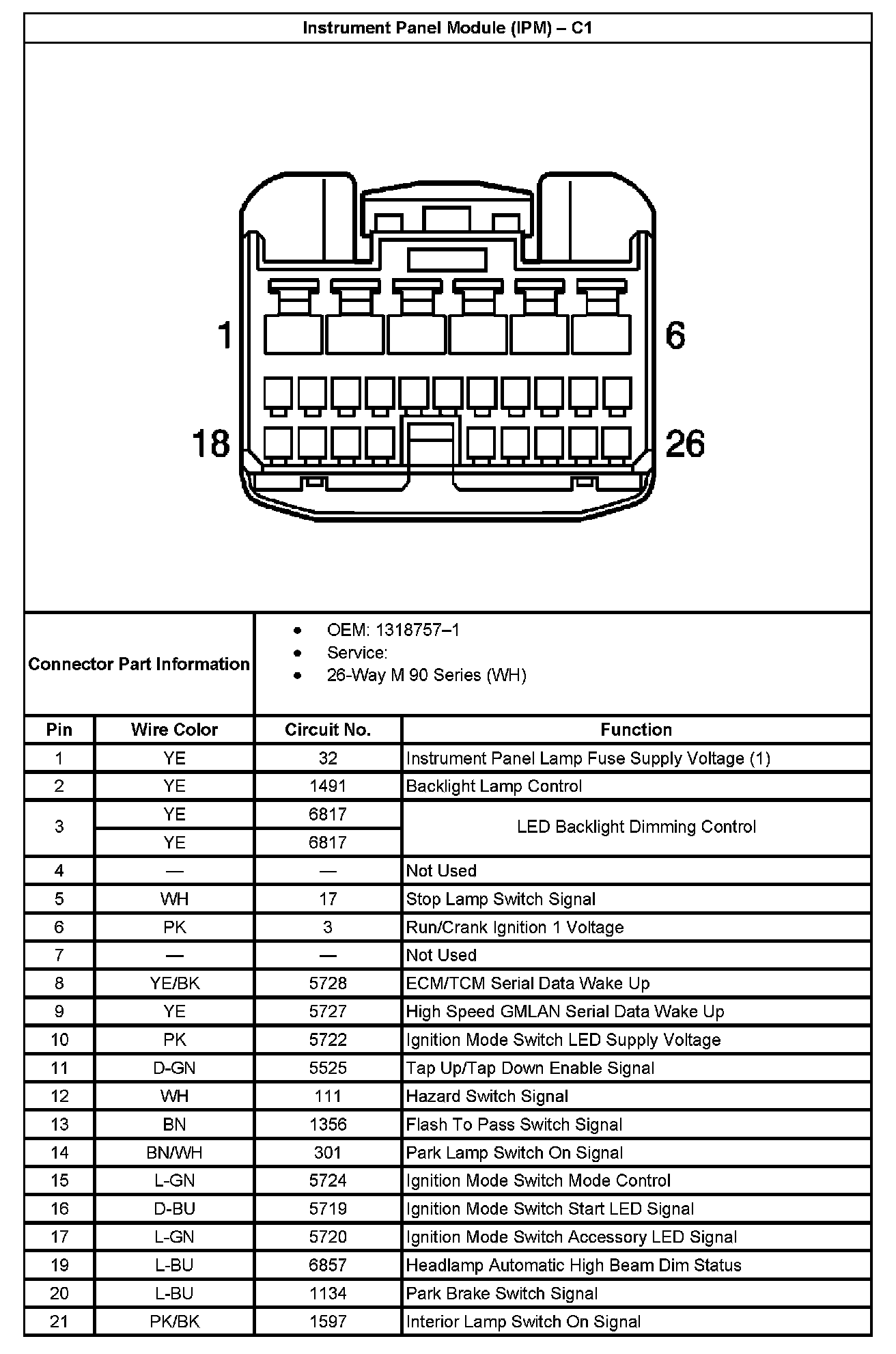

Instrument Panel Module (IPM) - C1 Part 1:




Instrument Panel Module (IPM) - C1 Part 2:

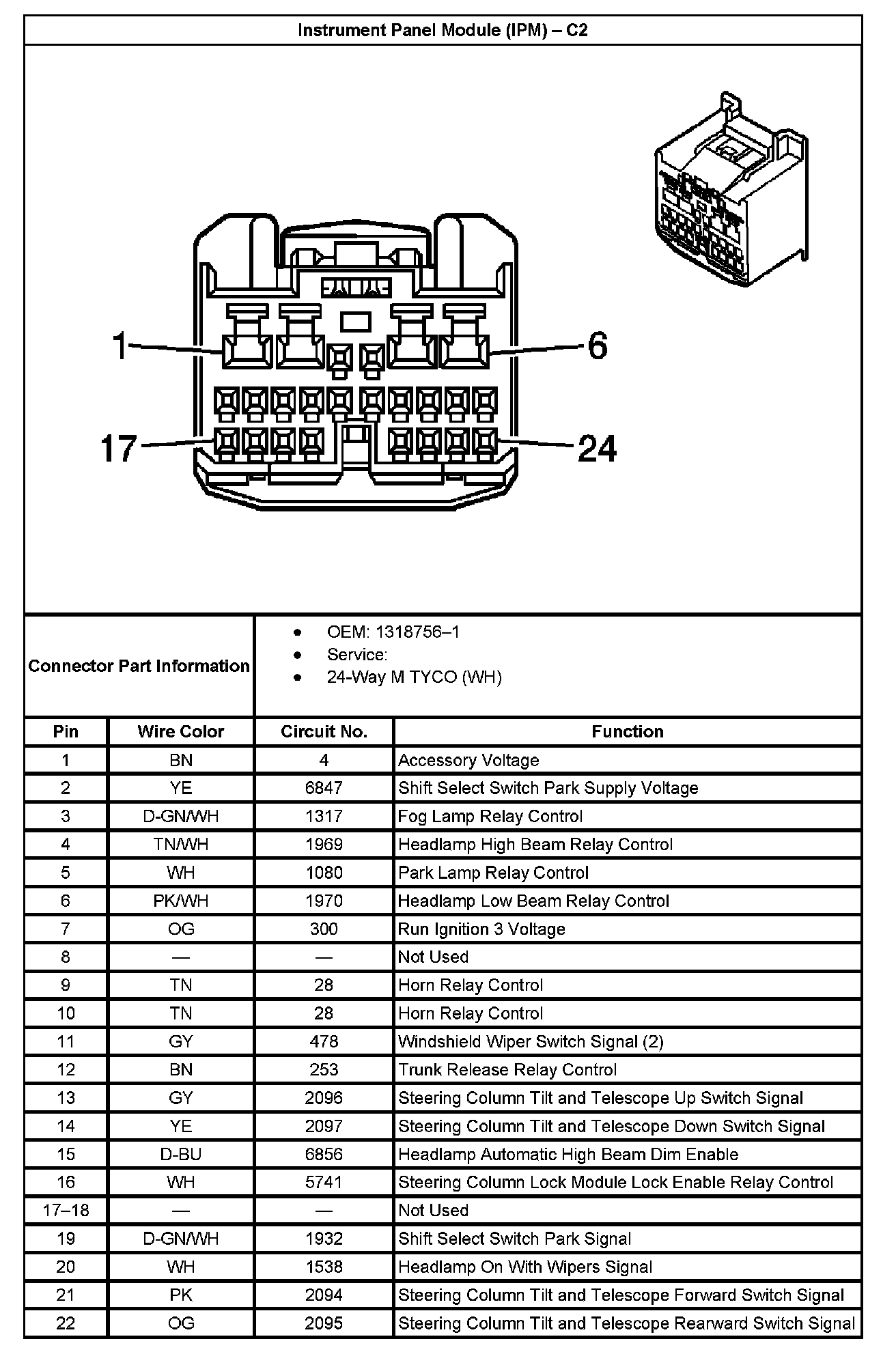

Instrument Panel Module (IPM) - C2 Part 1:

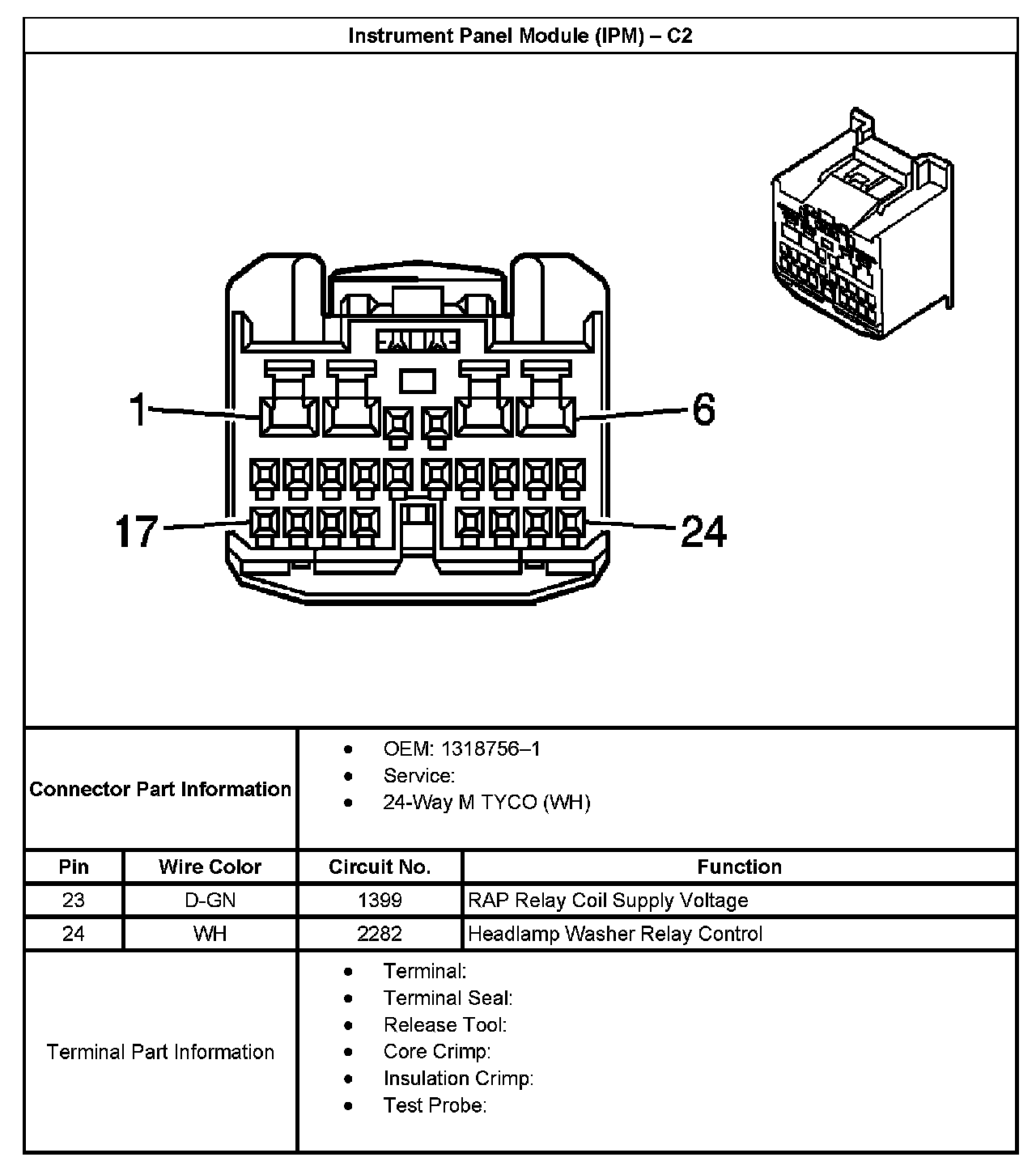

Instrument Panel Module (IPM) - C2 Part 2:

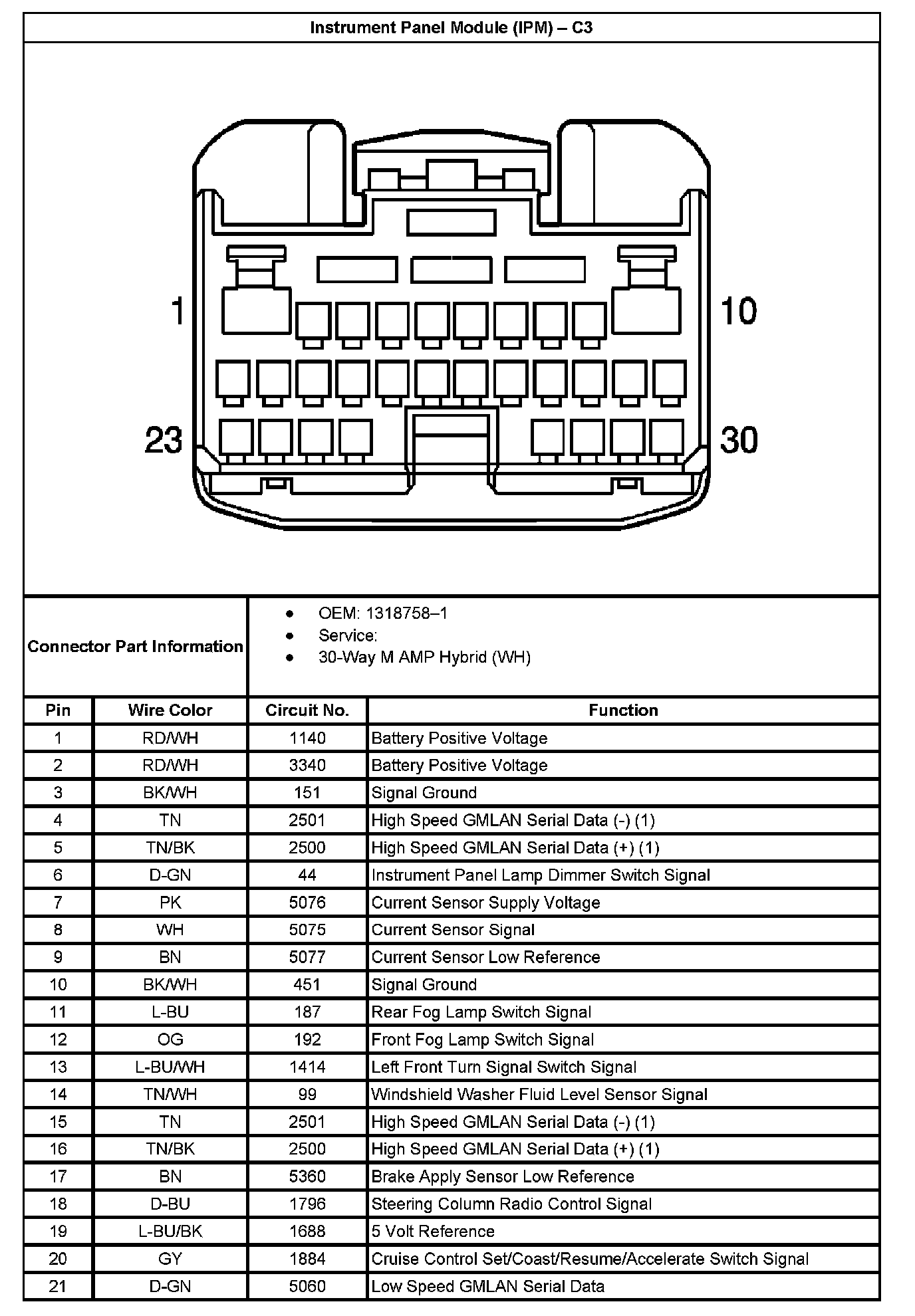

Instrument Panel Module (IPM) - C3 Part 1:

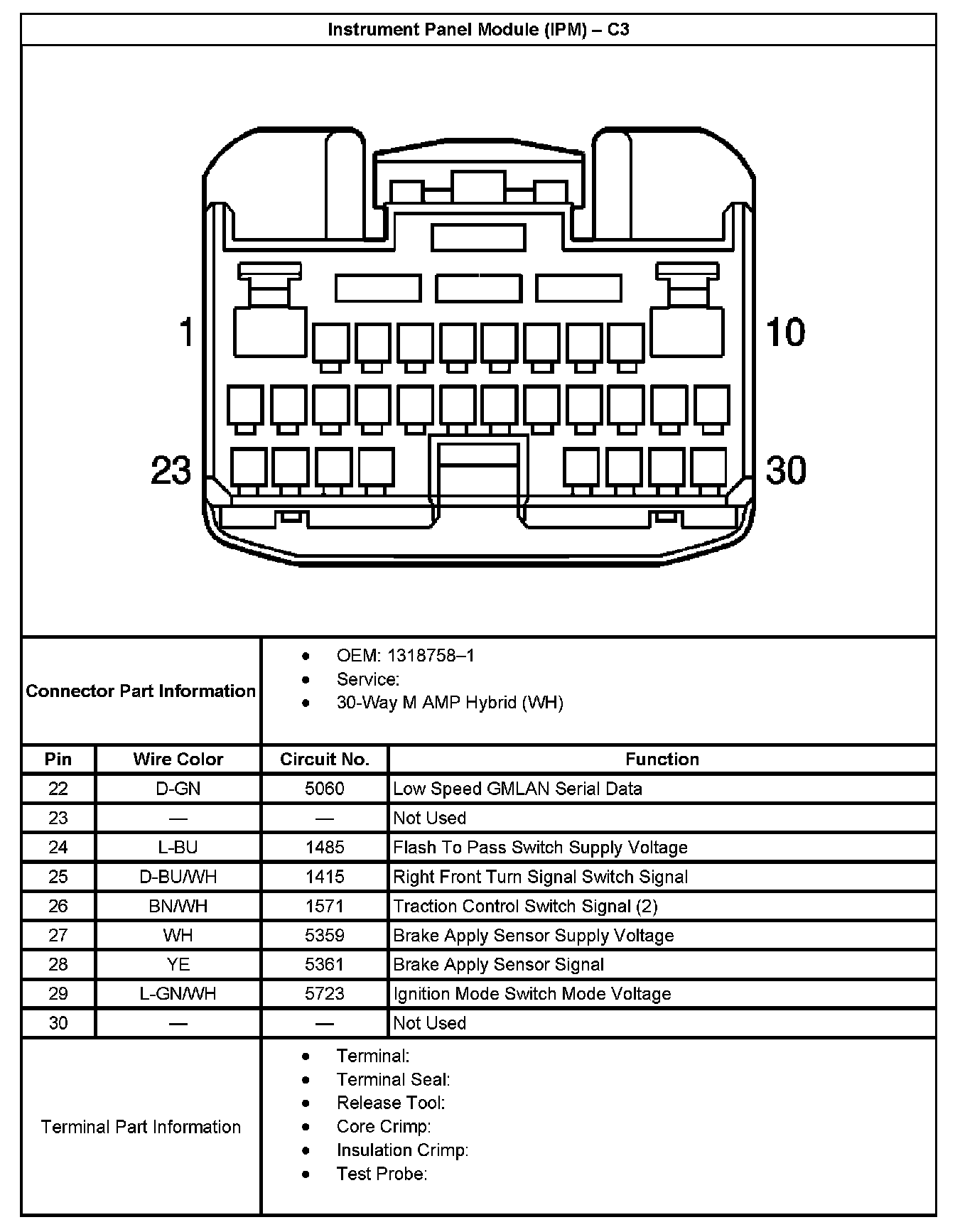

Instrument Panel Module (IPM) - C3 Part 2:
