Home >> Cadillac >> 2005 >> STS V6-3.6L VIN 7 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Accelerator Pedal Position Sensor >> Diagrams

Accelerator Pedal Position Sensor: Diagrams

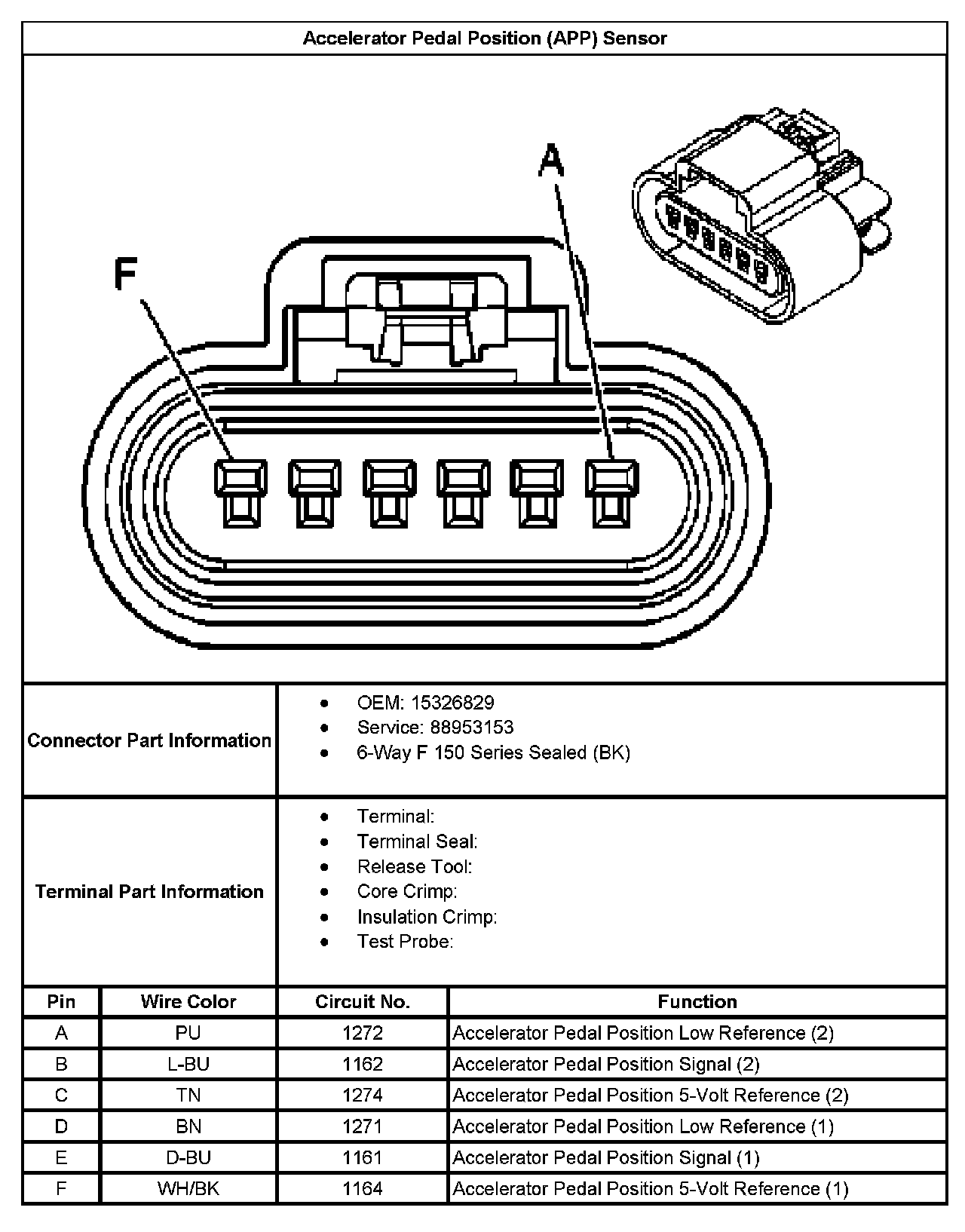

Accelerator Pedal Position (APP) Sensor:
