Home >> Cadillac >> 2005 >> STS V6-3.6L VIN 7 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

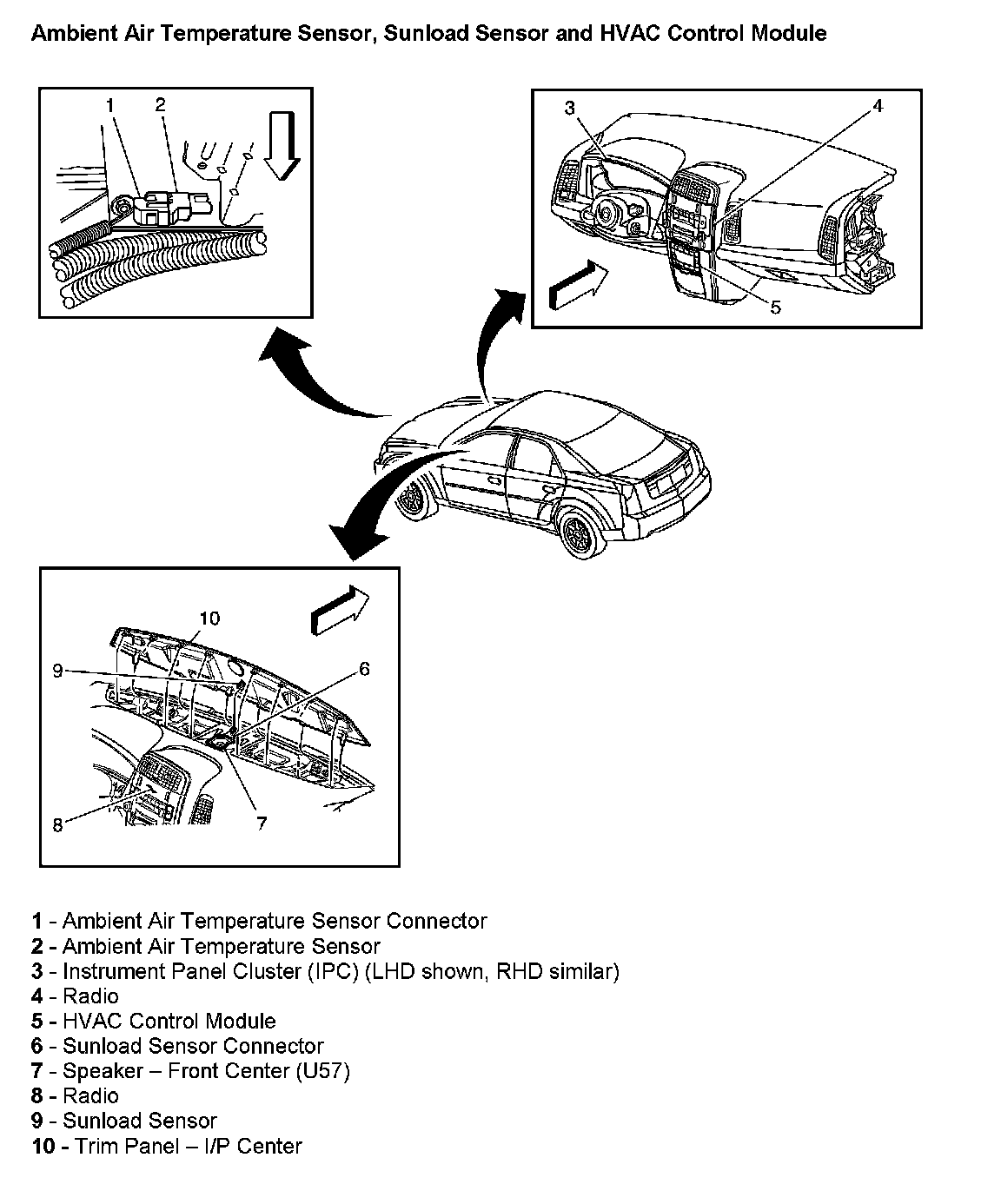

Ambient Air Temperature Sensor, Sunload Sensor And HVAC Control Module:
