Oil Pressure Sensor: Locations

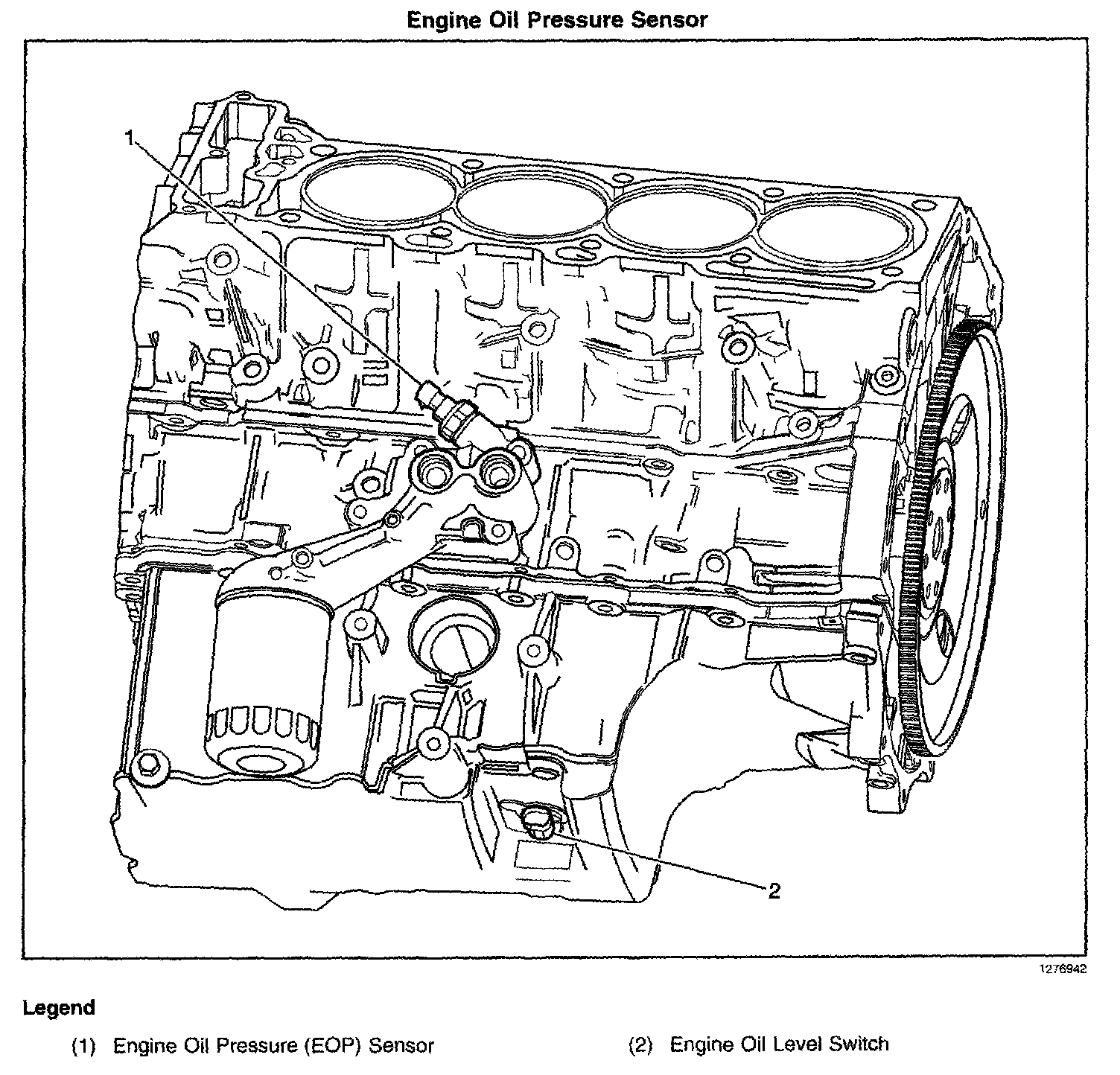

Engine Oil Pressure Sensor:

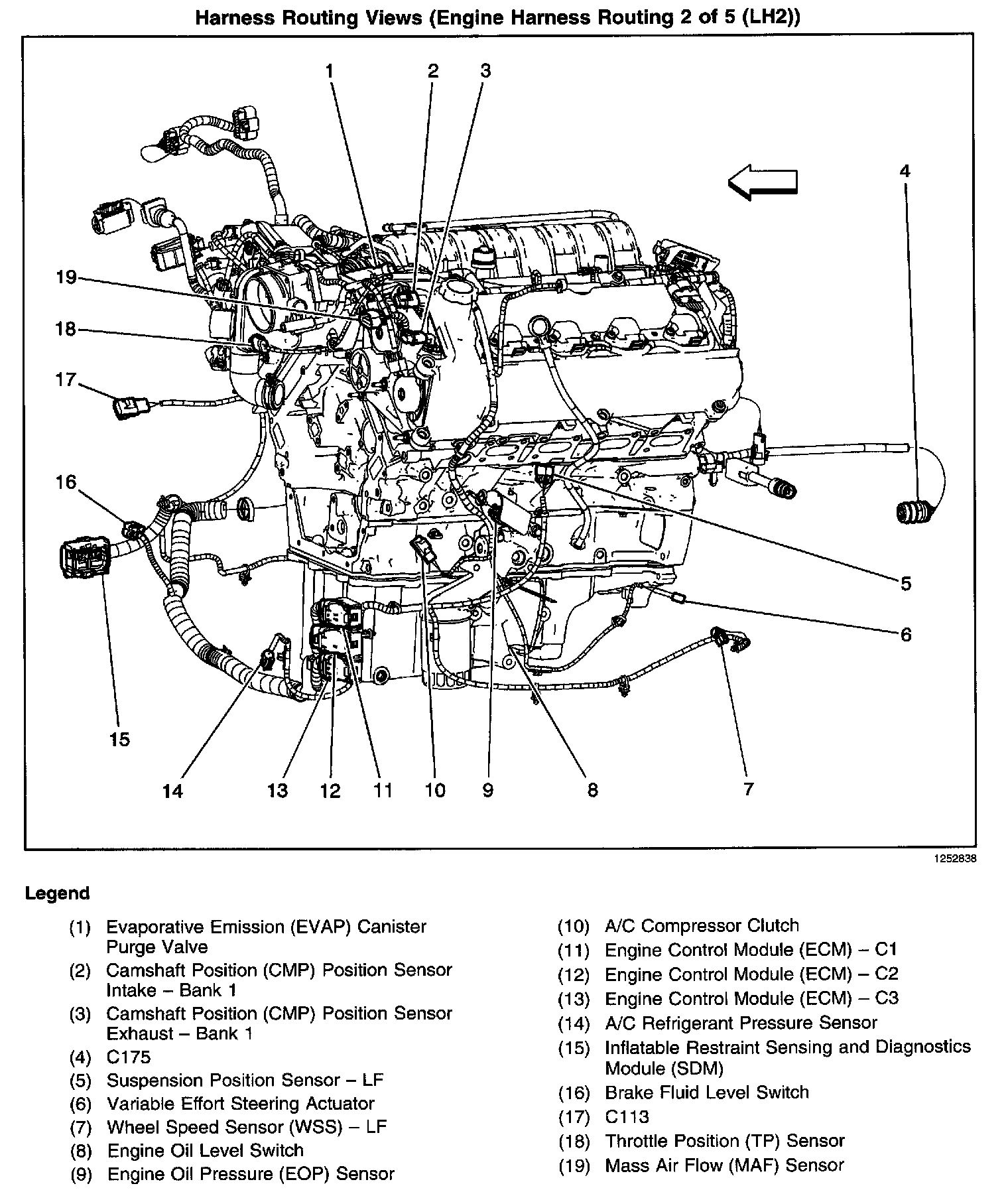

Harness Routing Views (Engine Harness Routing (LH2)):
