Left Rear Door Module (LRDM)

Left Rear Door Module (LRDM) C1:

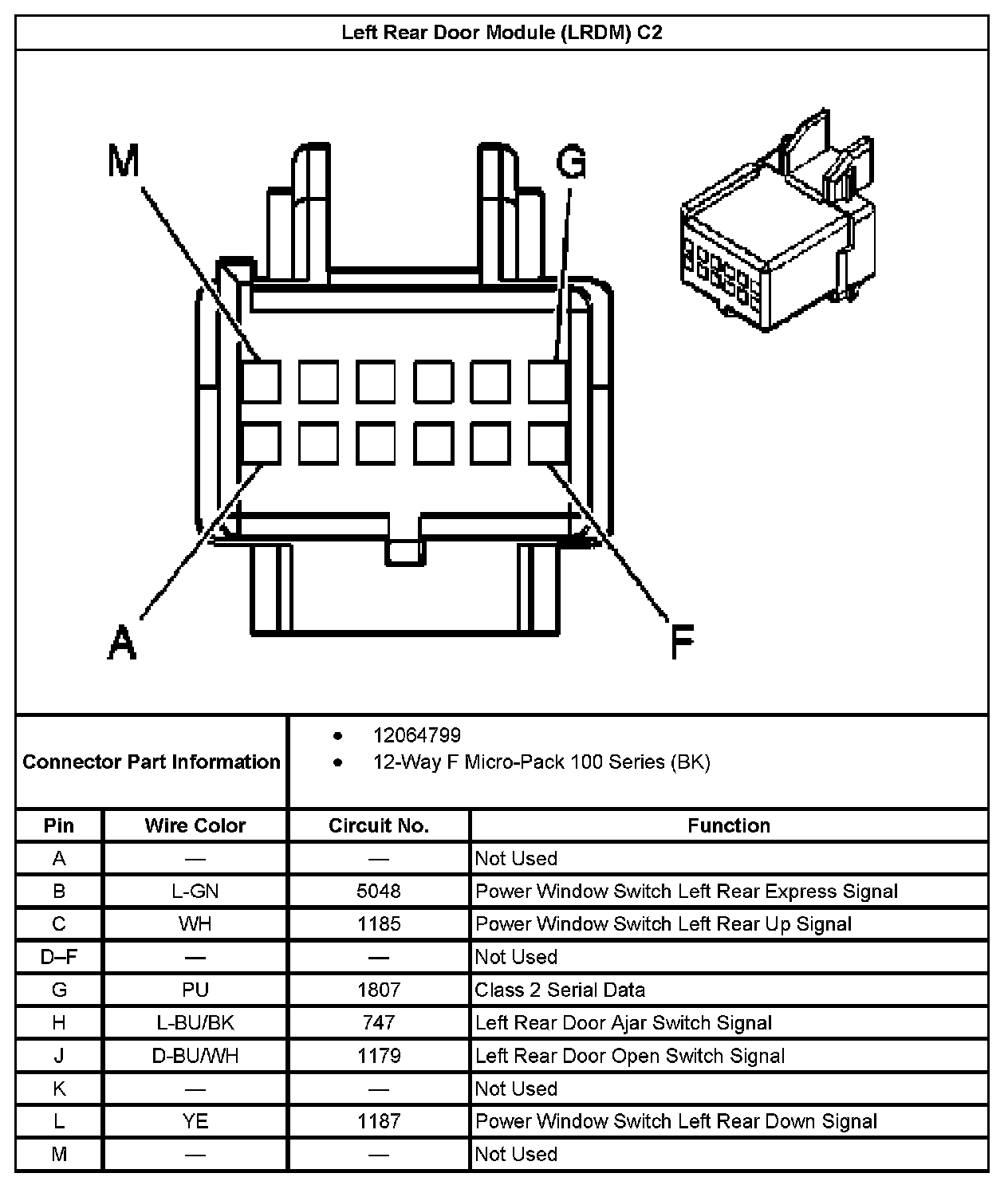

Left Rear Door Module (LRDM) C2:

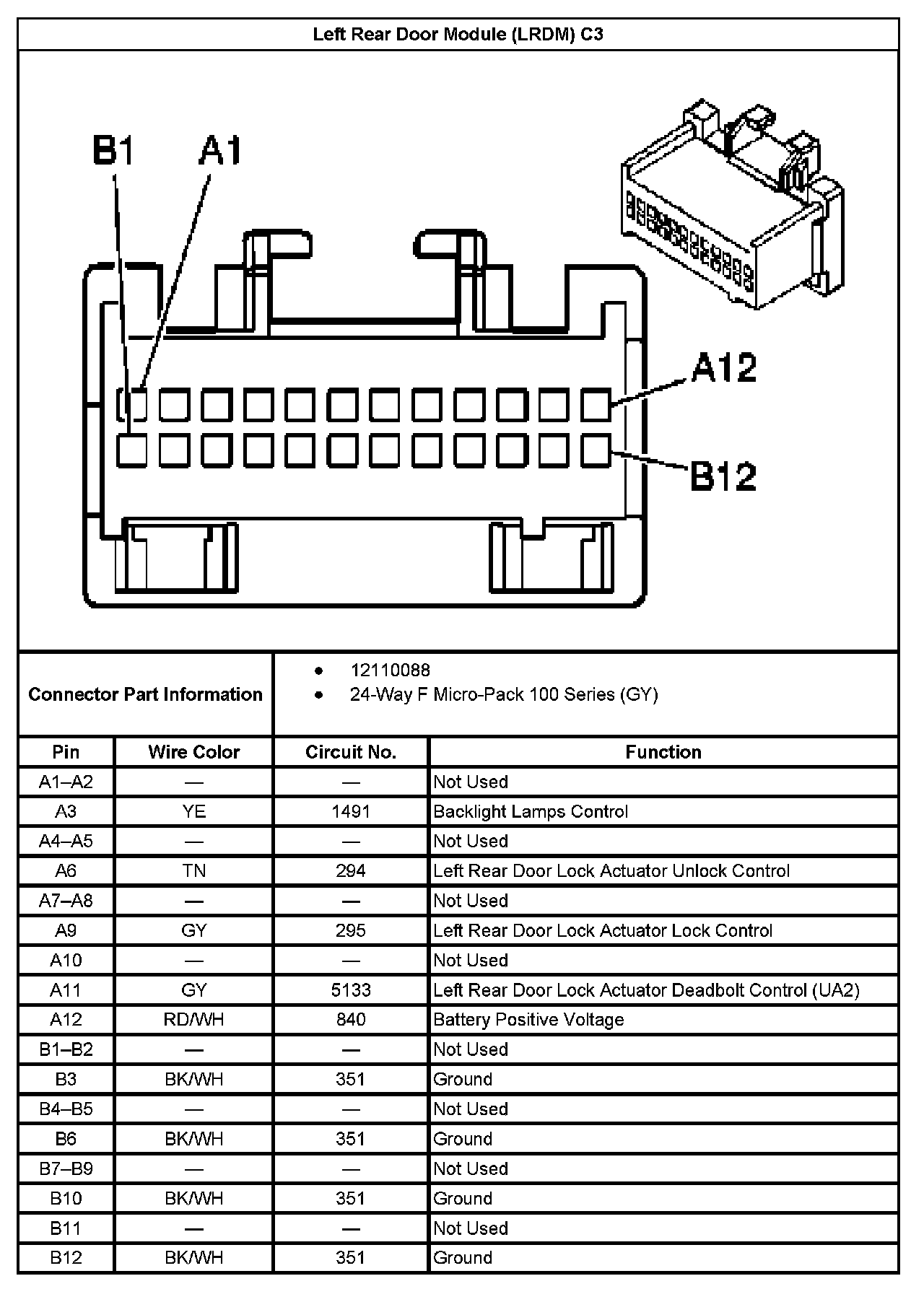

Left Rear Door Module (LRDM) C3:
