Home
>>
Cadillac
>>
2005
>>
CTS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

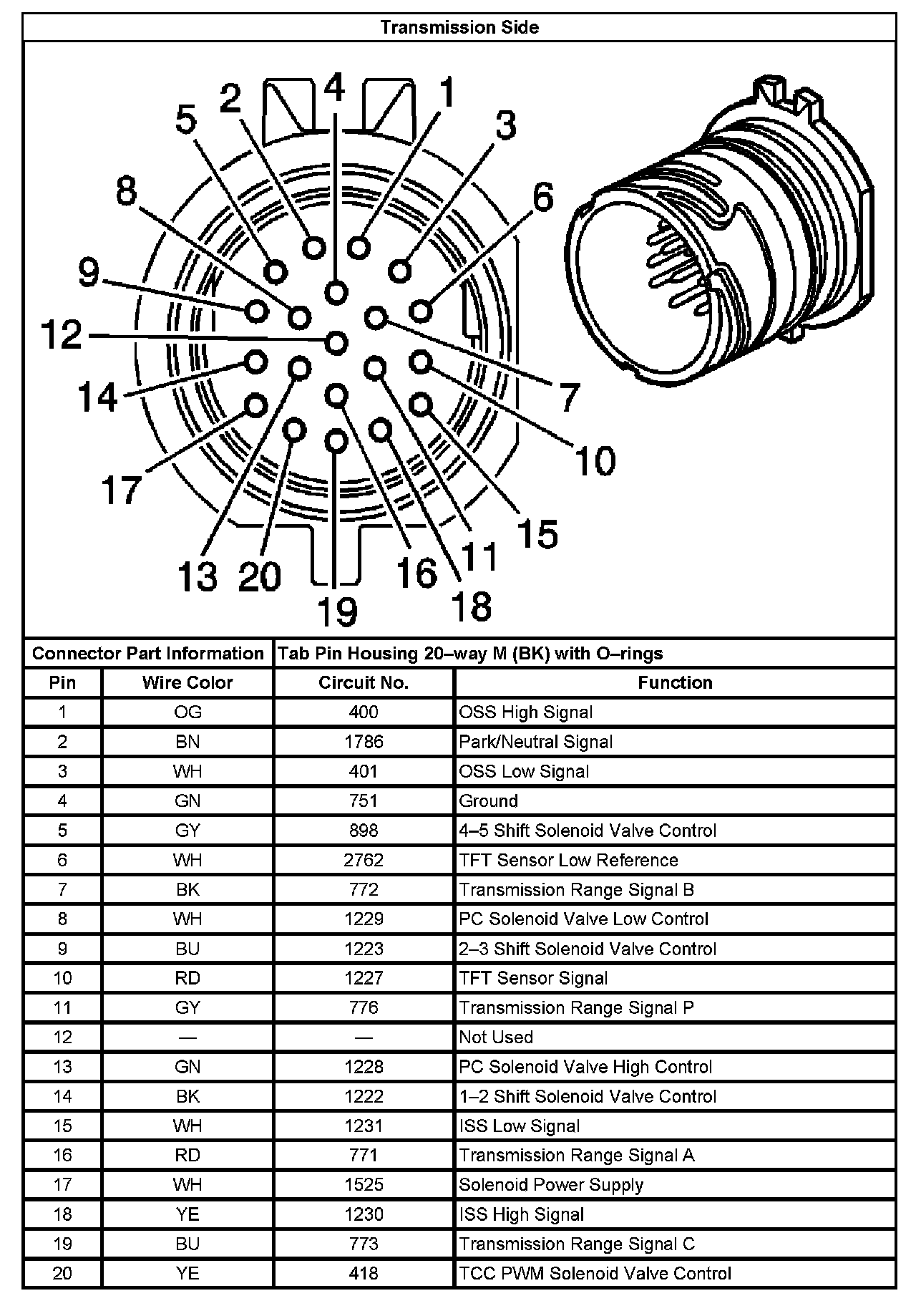

Transmission Side:

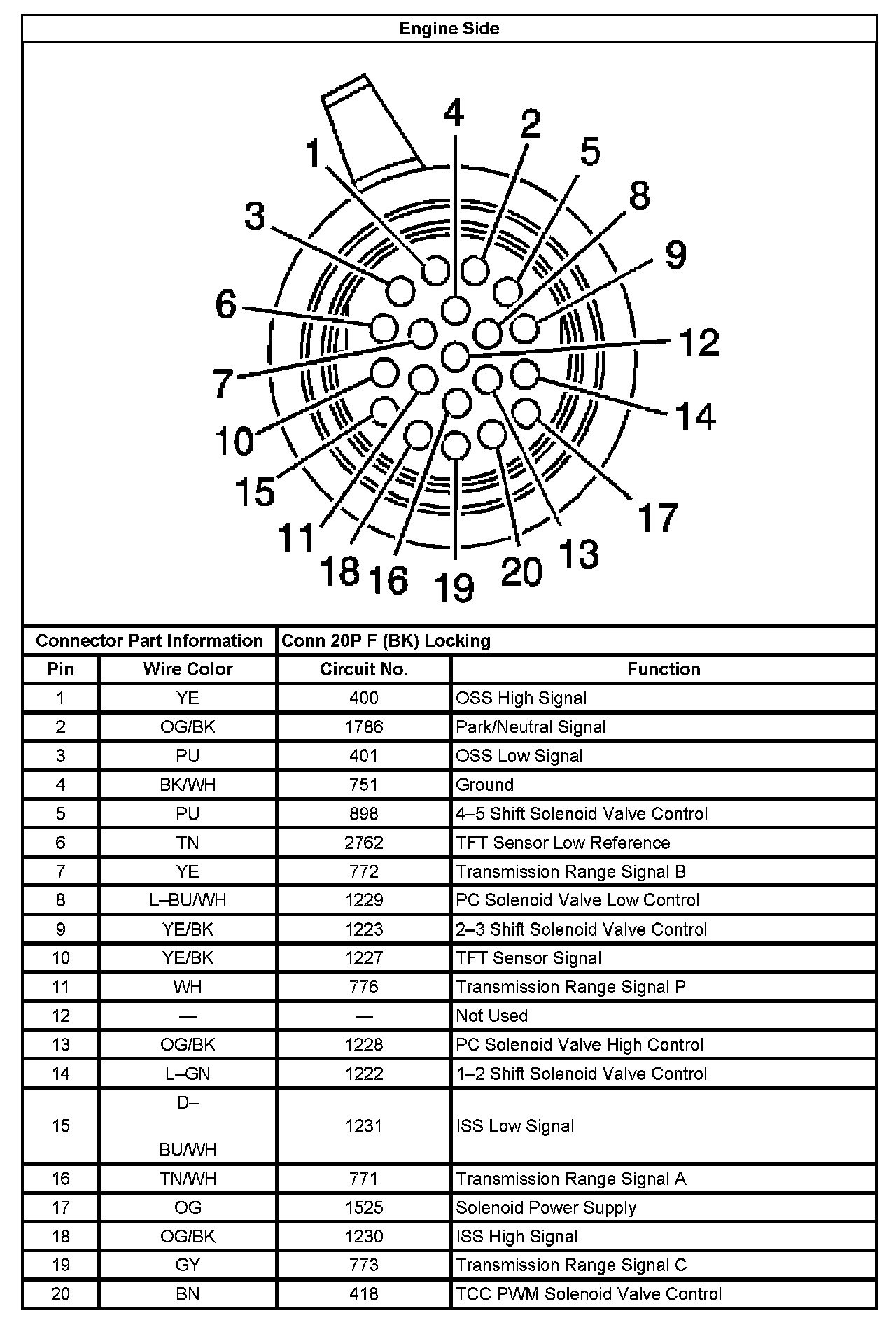

Engine Side:
