Home >> Cadillac >> 2004 >> Seville V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Cellular Phone >> Cellular Telephone Module

Cellular Telephone Module

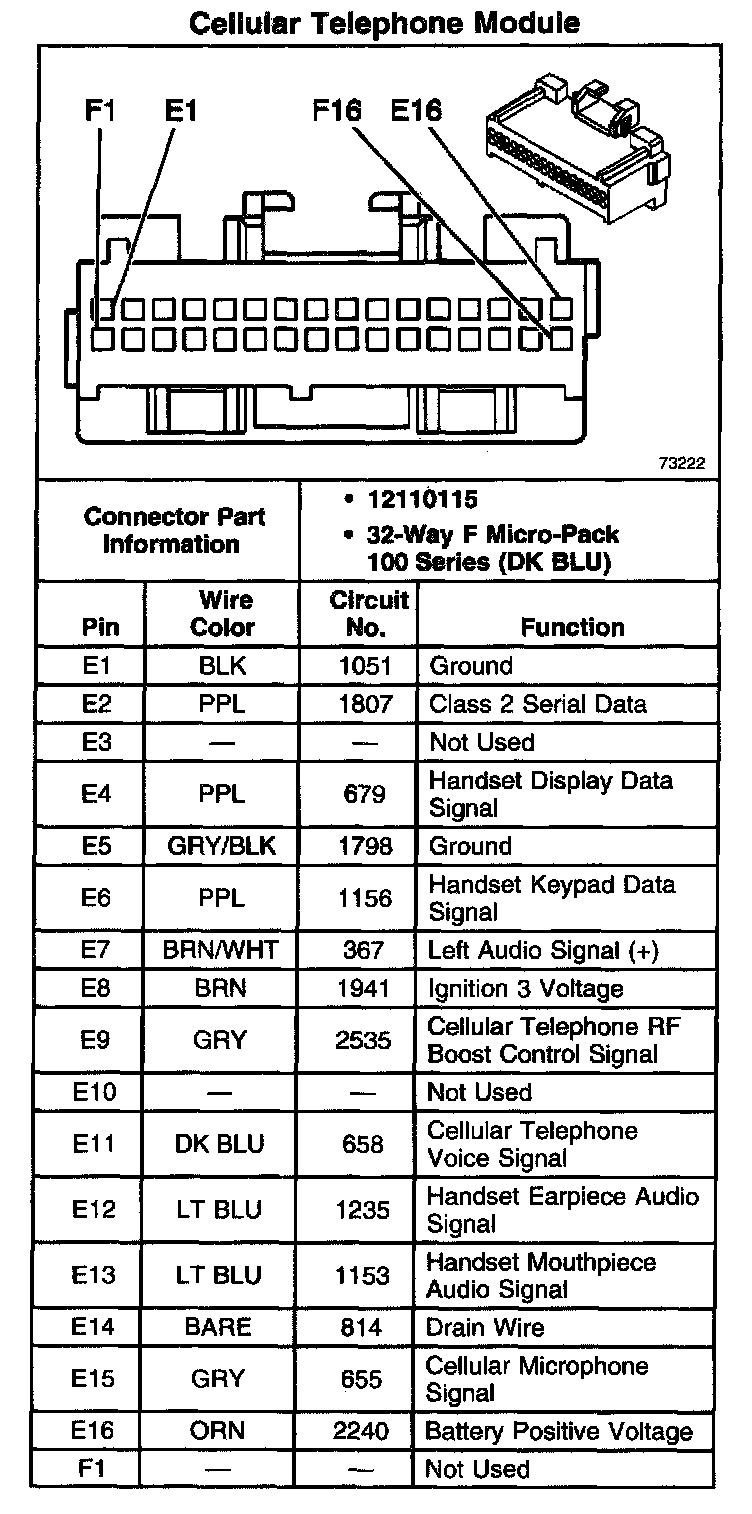

Cellular Telephone Module Part 1:

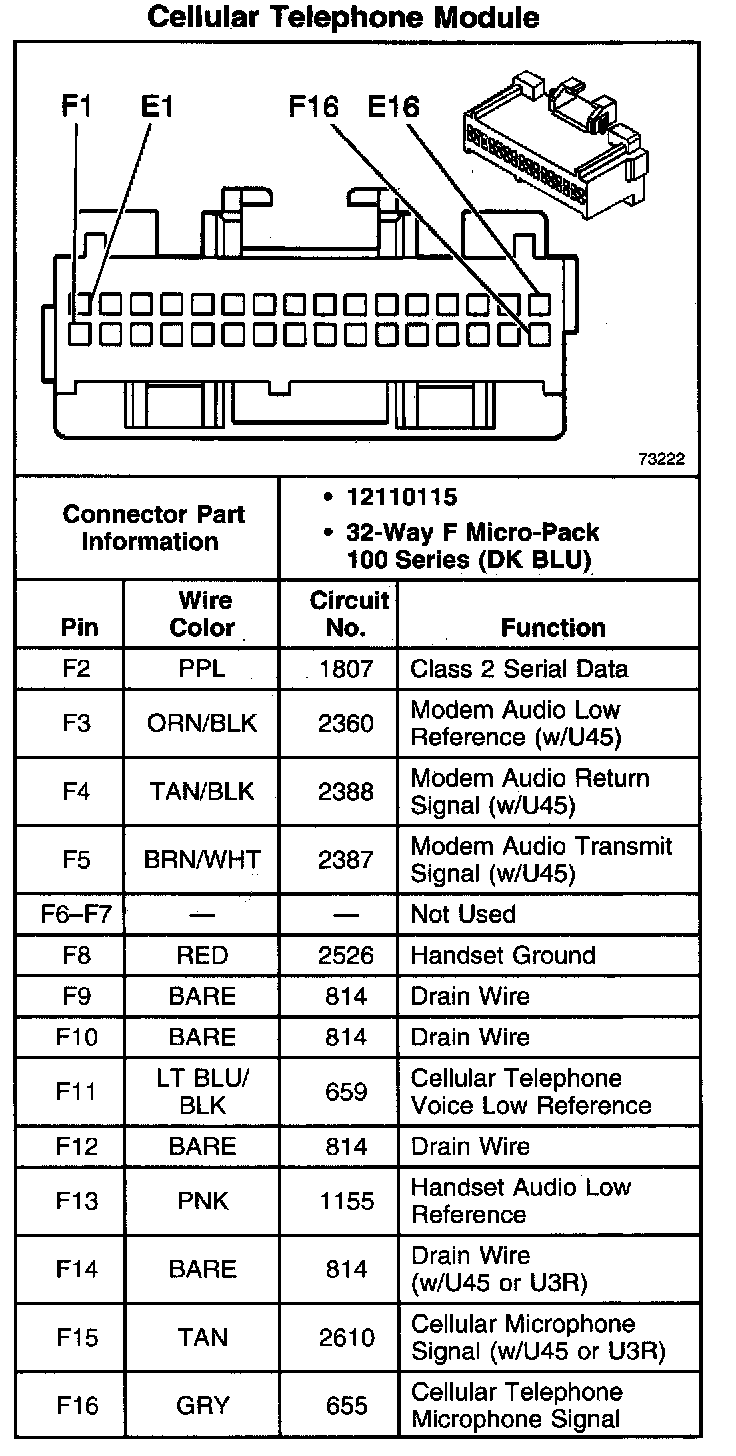

Cellular Telephone Module Part 2:
