Coolant Temperature Sensor/Switch (For Computer): Locations

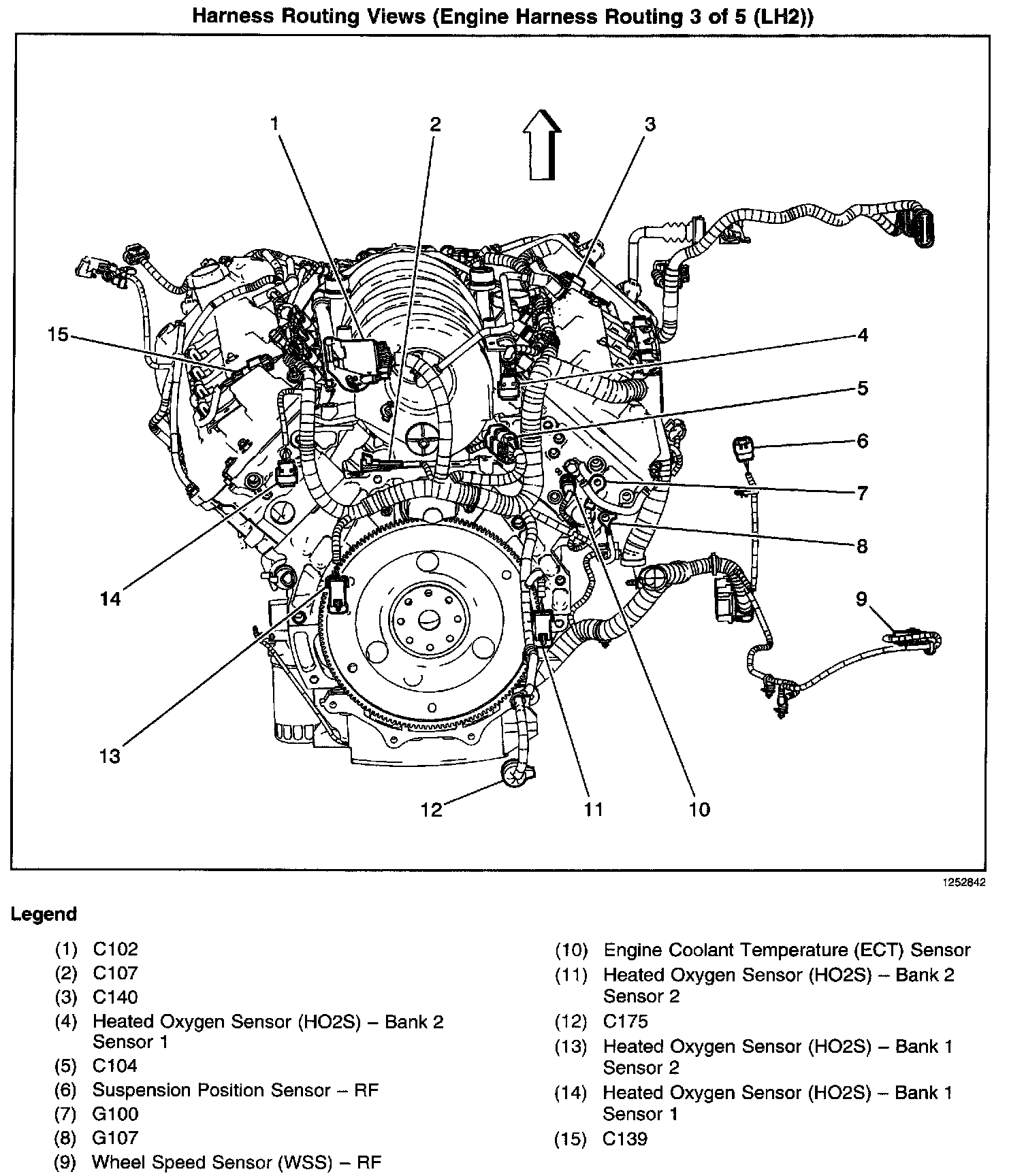

Harness Routing Views (Engine Harness Routing (LH2)):
