Windshield Washer Control Module: Locations

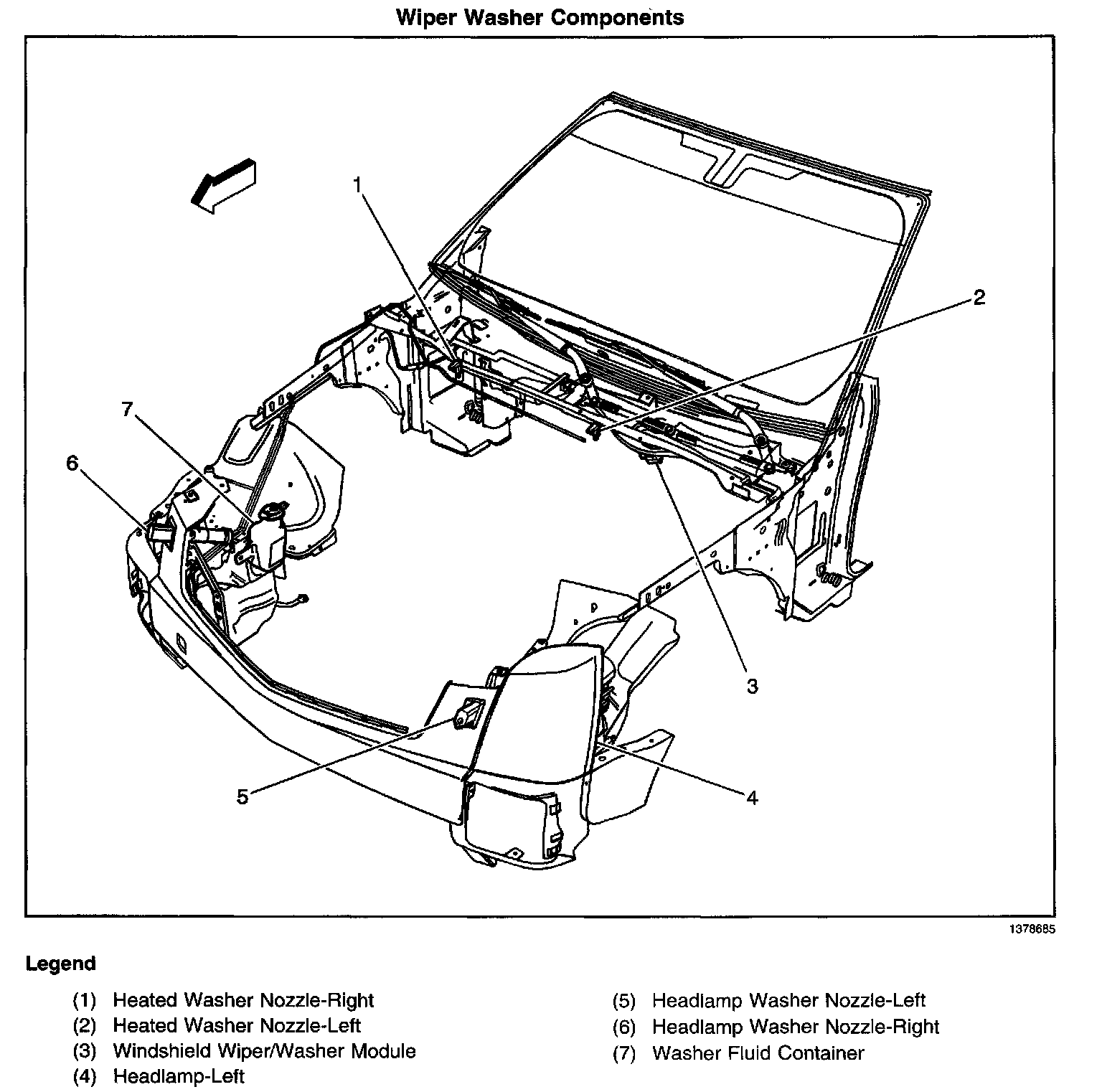

Wiper Washer Components:

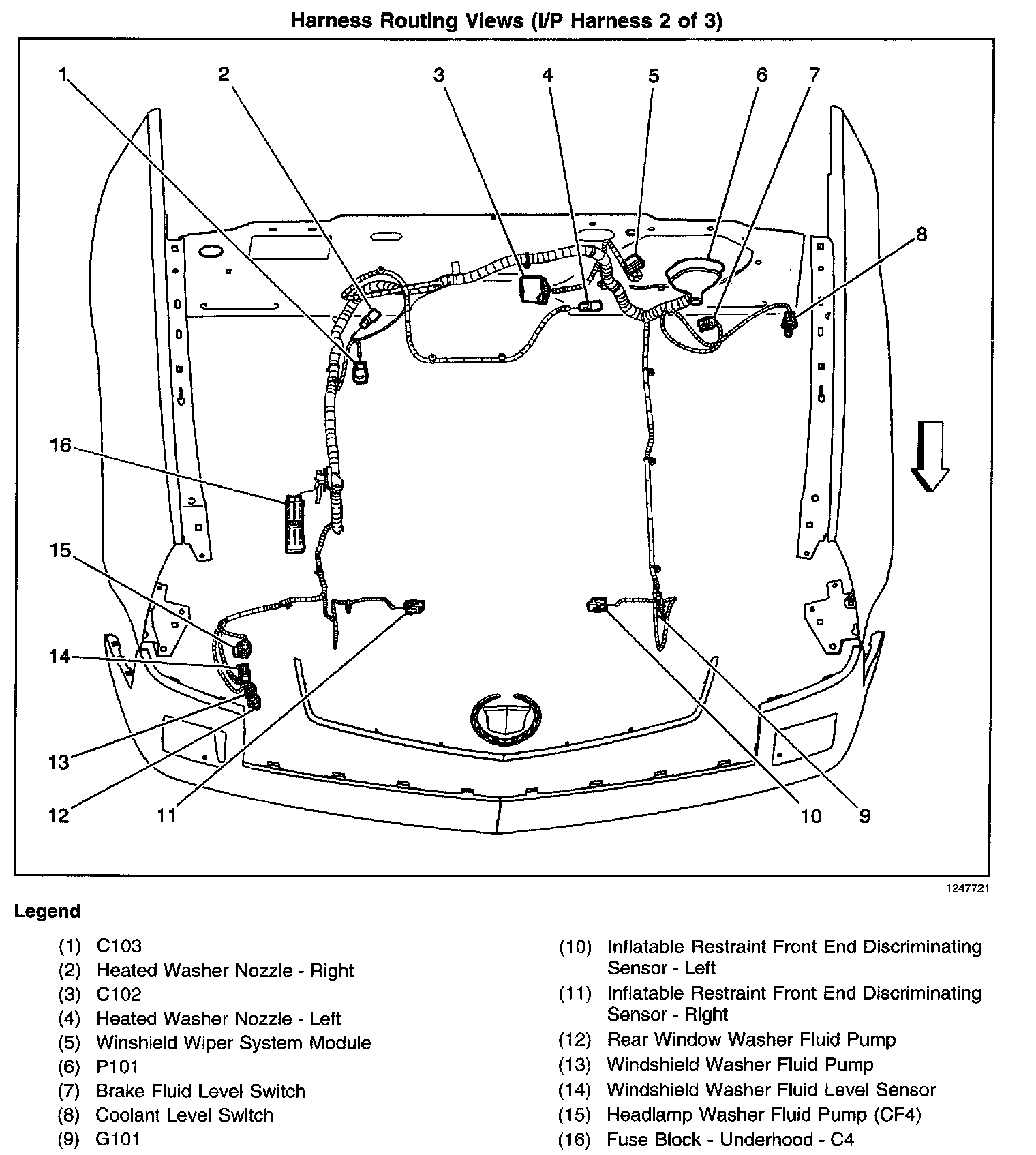

Harness Routing Views (I/P Harness):
