Cadillac
>>
2004
>>
SRX AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Locations
Data Link Connector: Locations

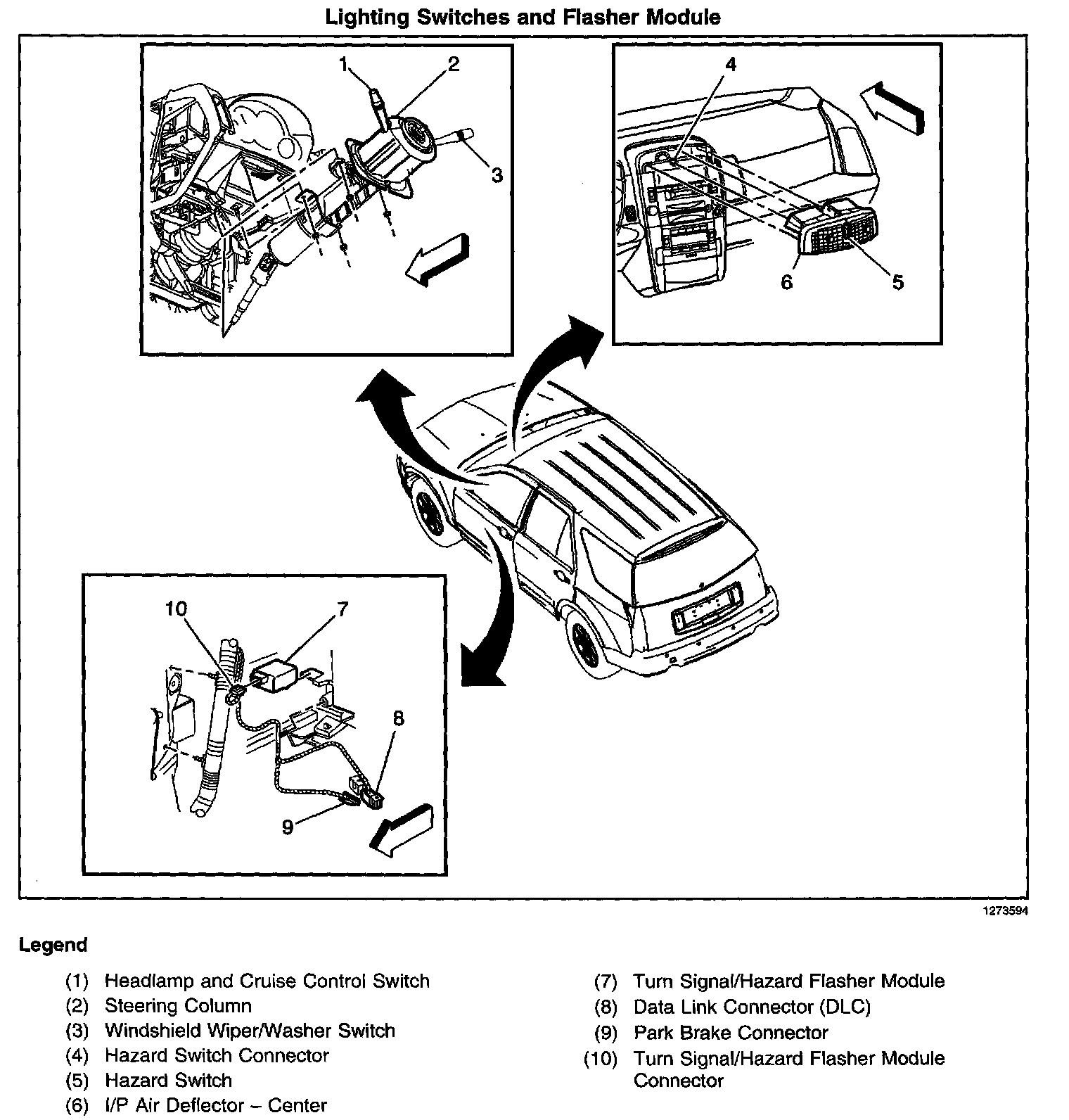

Lighting Switches And Flasher Module:

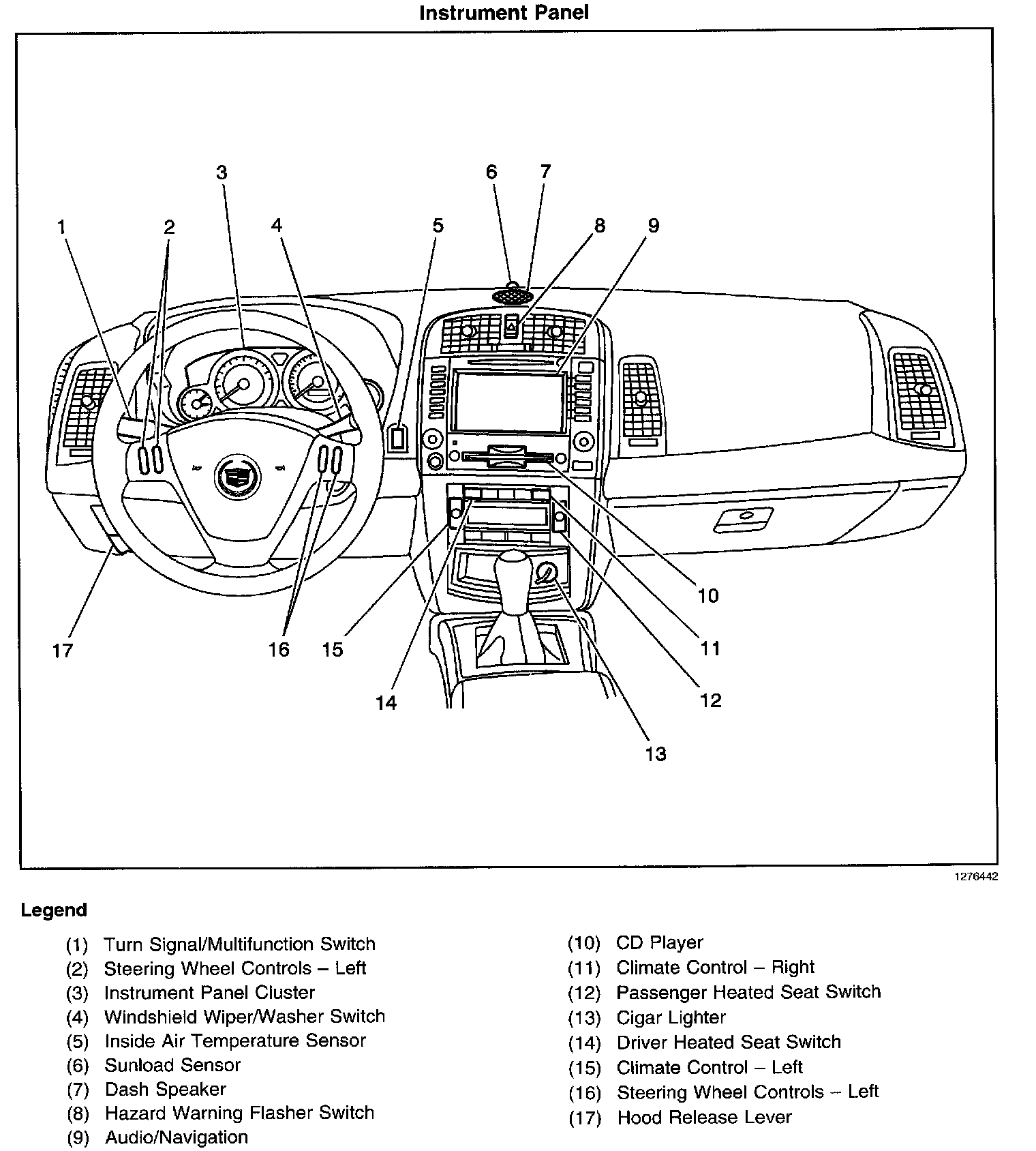

Instrument Panel:
Lighting Switches And Flasher Module:

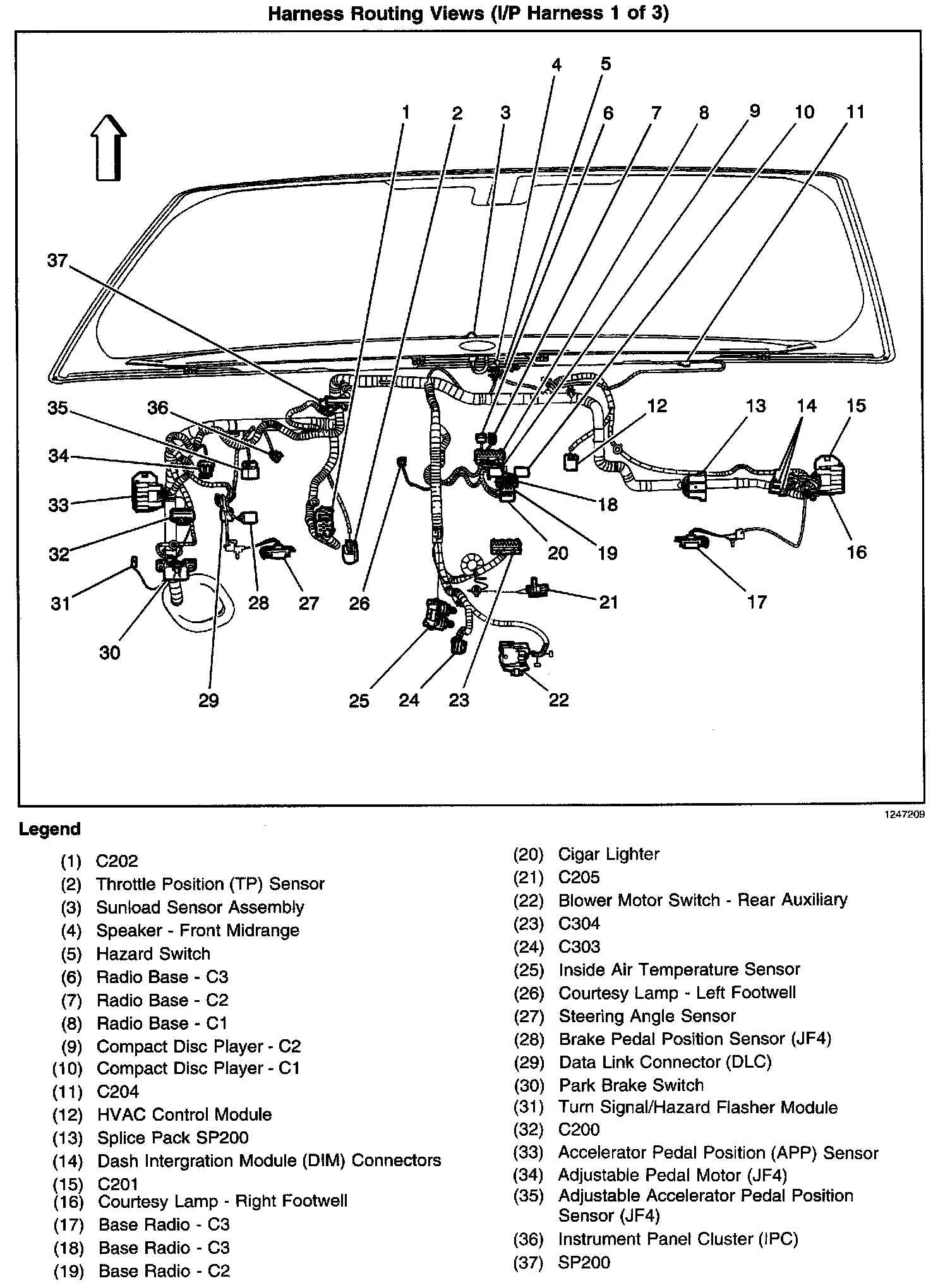

Harness Routing Views (I/P Harness):
