Memory Positioning Switch: Locations

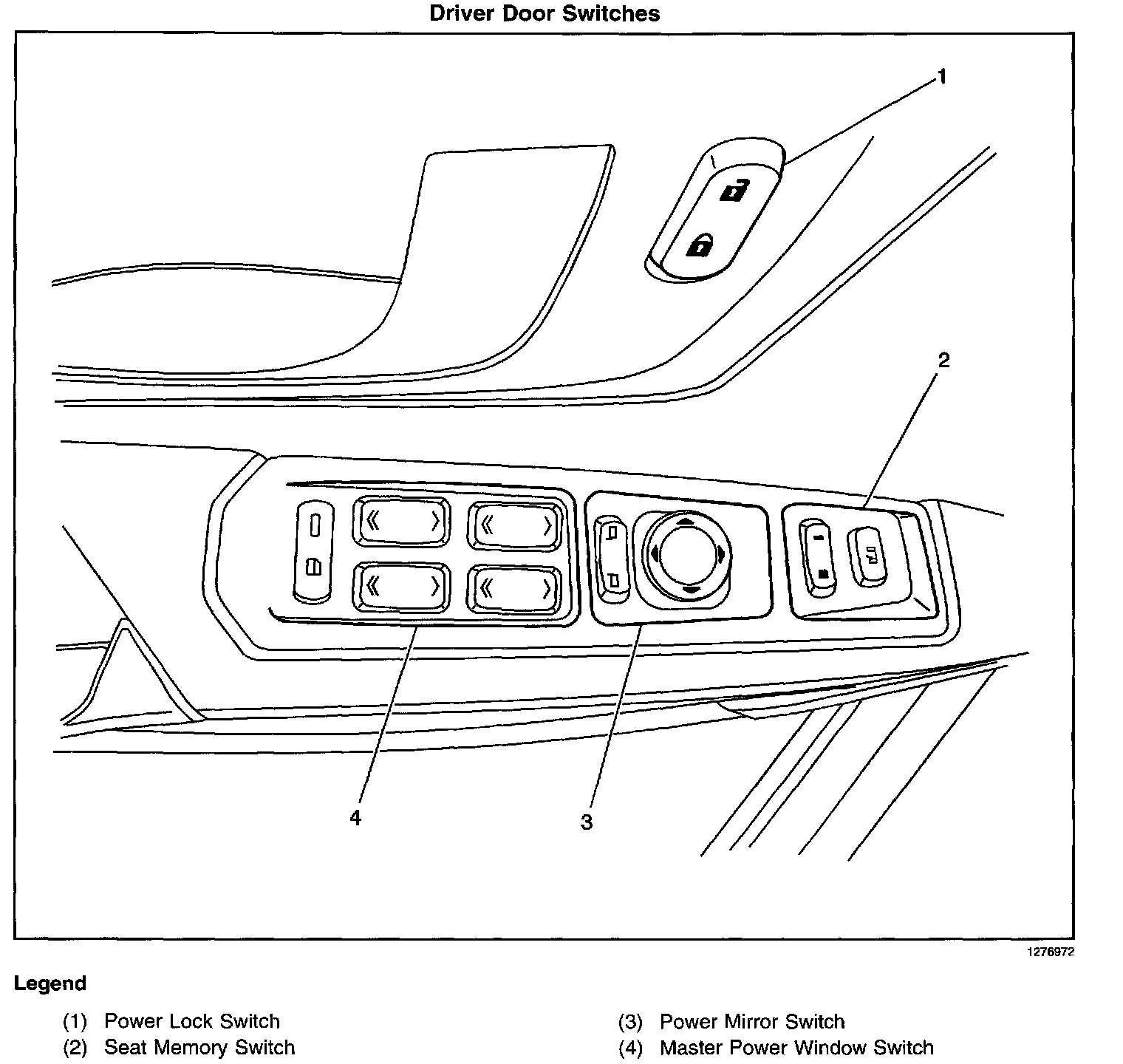

Driver Door Switches:

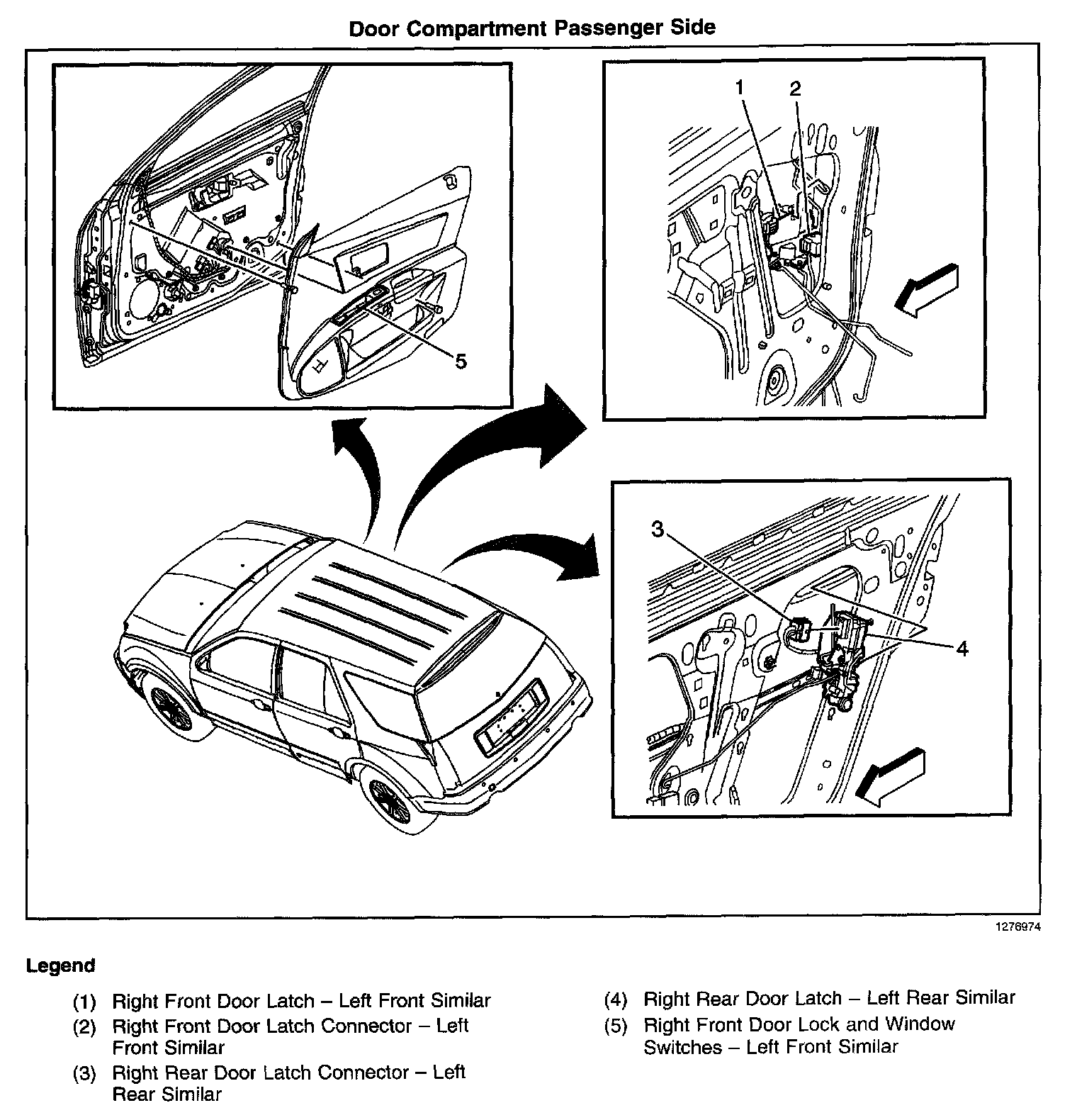

Door Compartment Passenger Side:

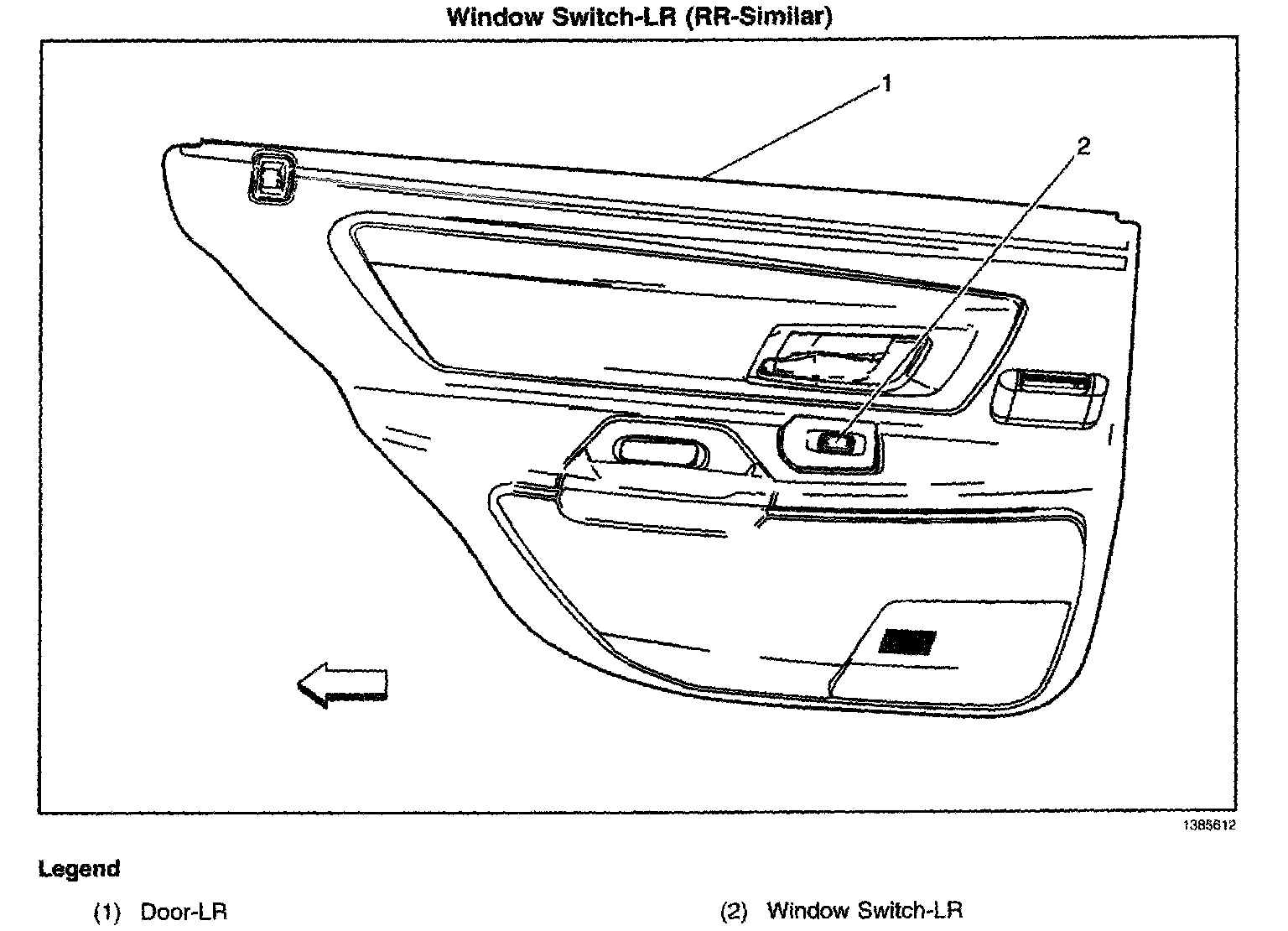

Window Switch-LR (RR-Similar):

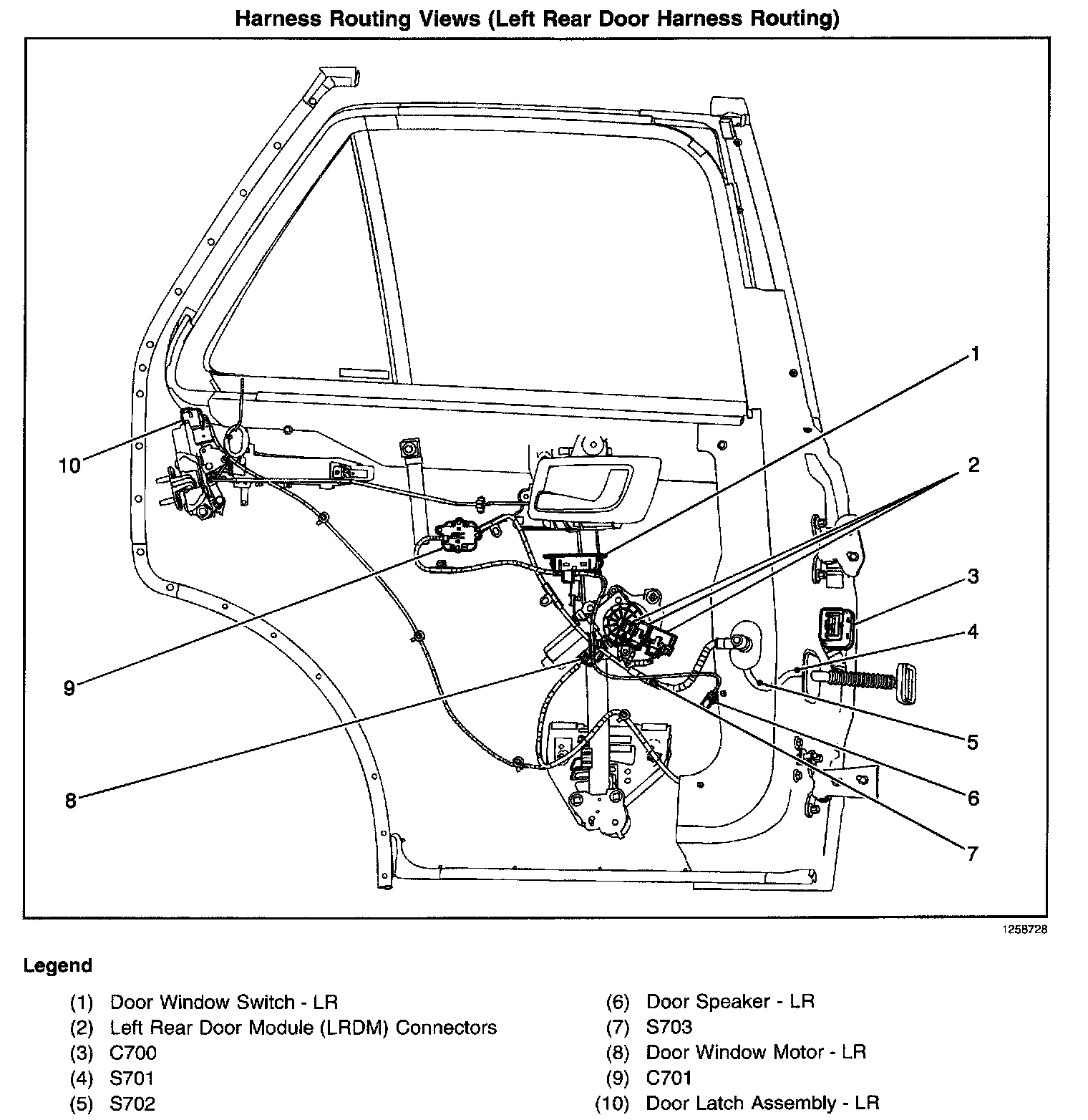

Harness Routing Views (Left Rear Door Harness Routing):
