Component Locator

Component Locator

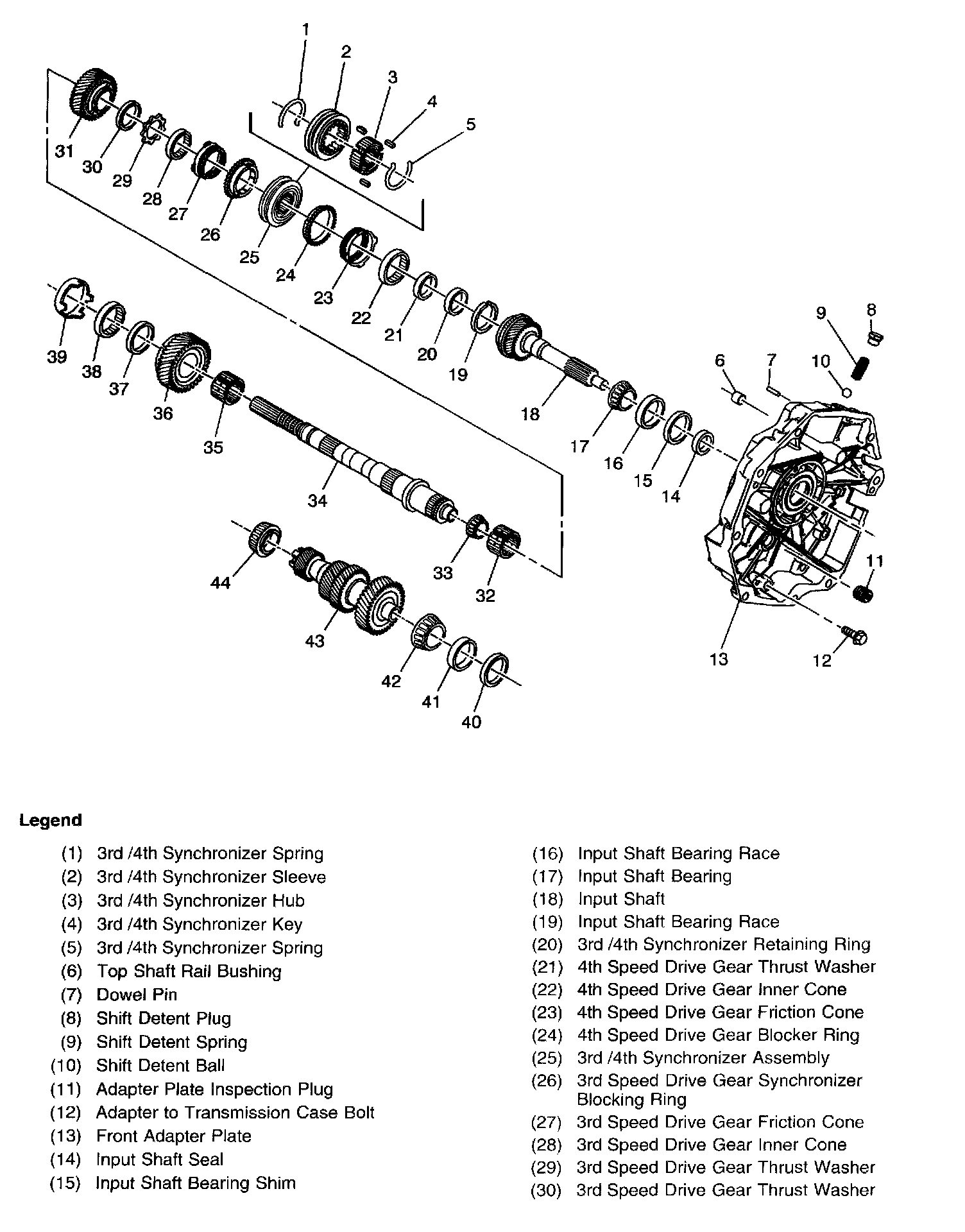

Adapter Plate and Gears

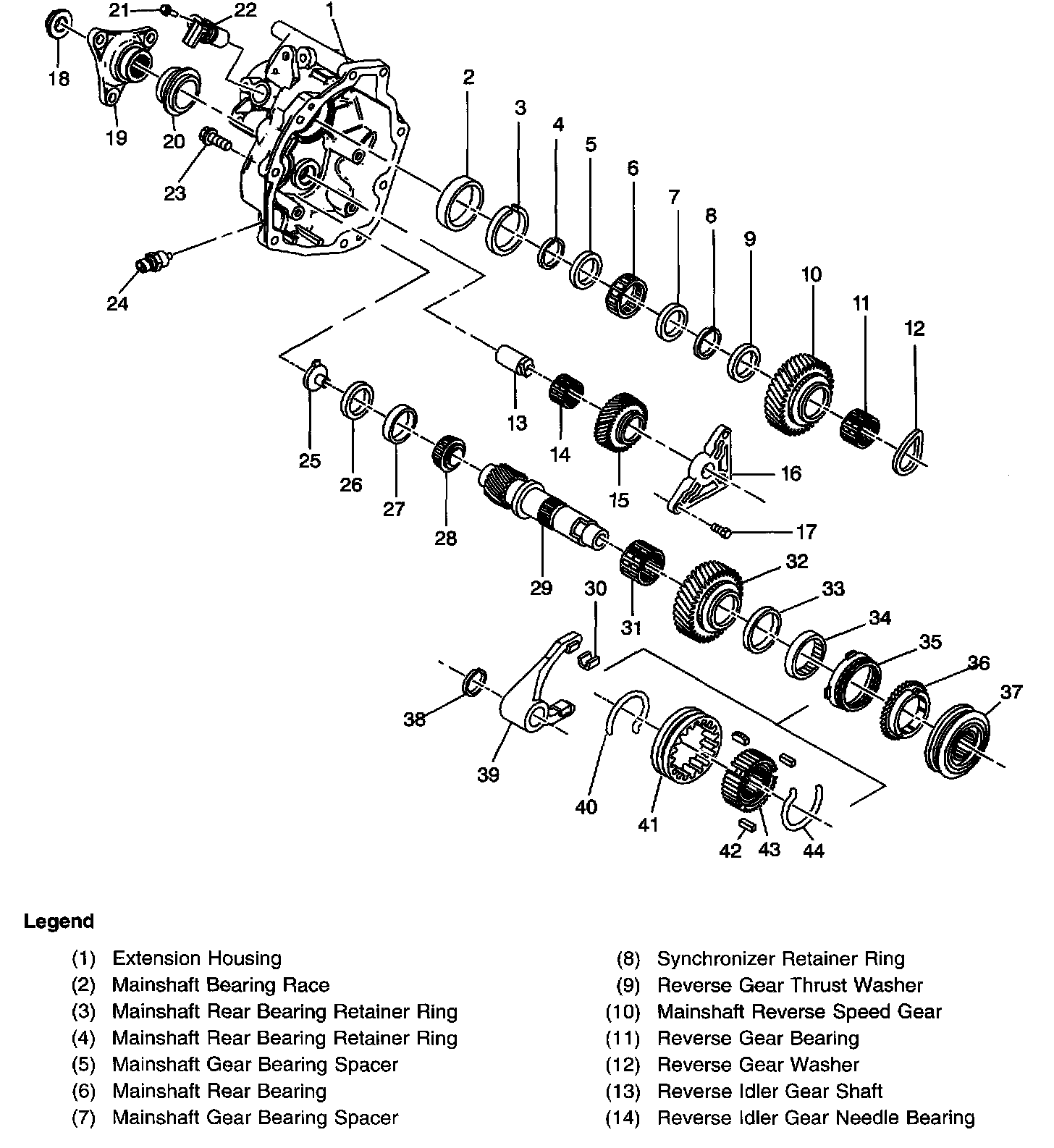

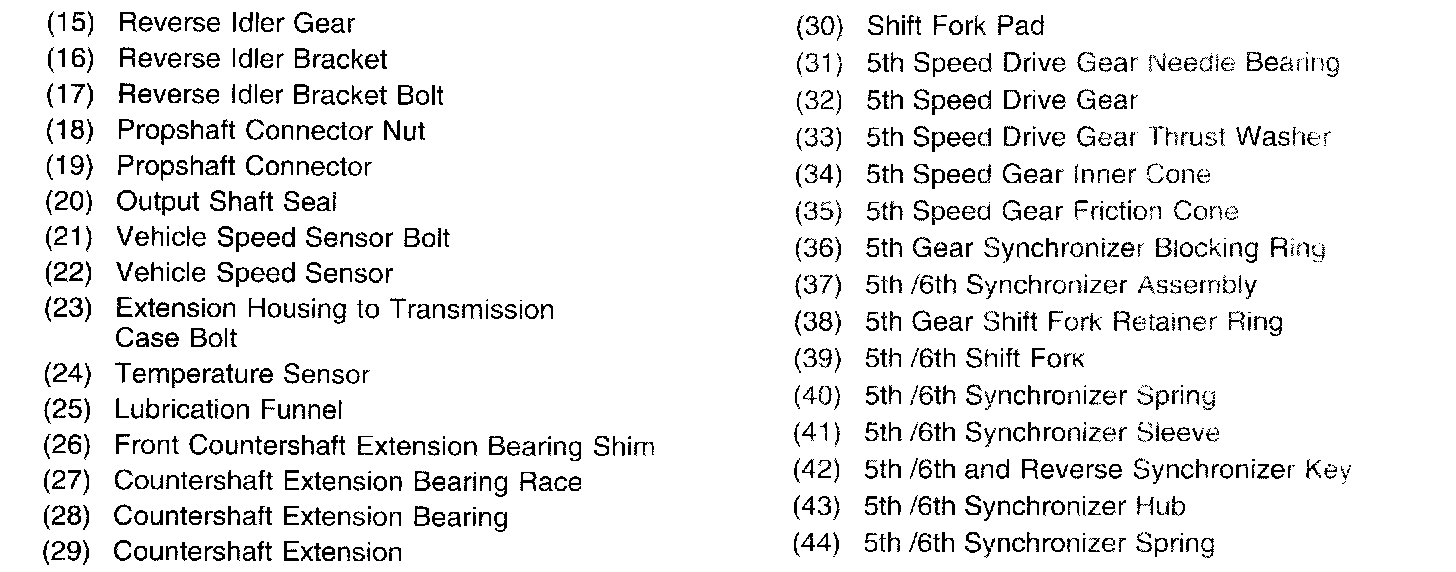

Extension Housing

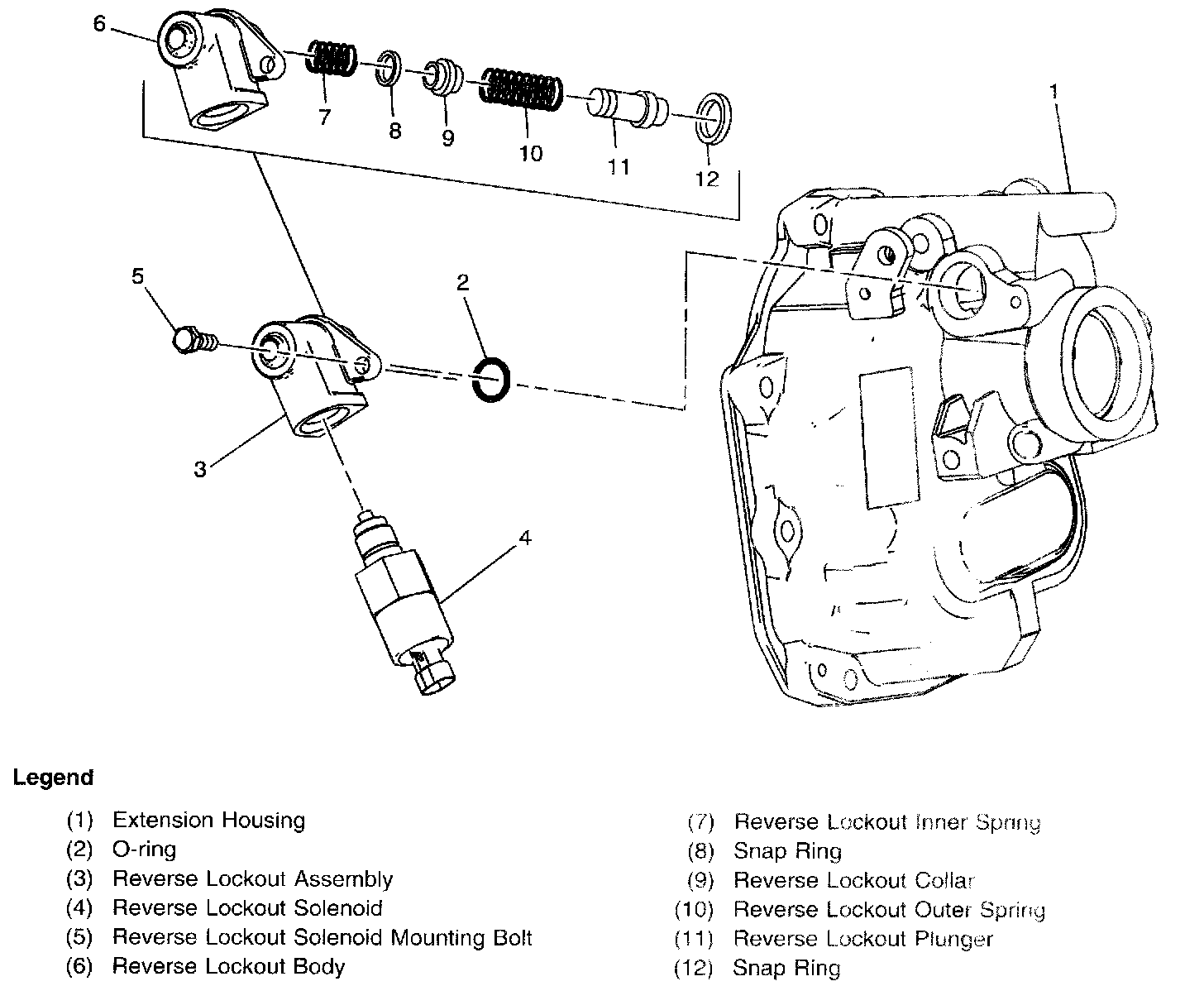

Reverse Lockout

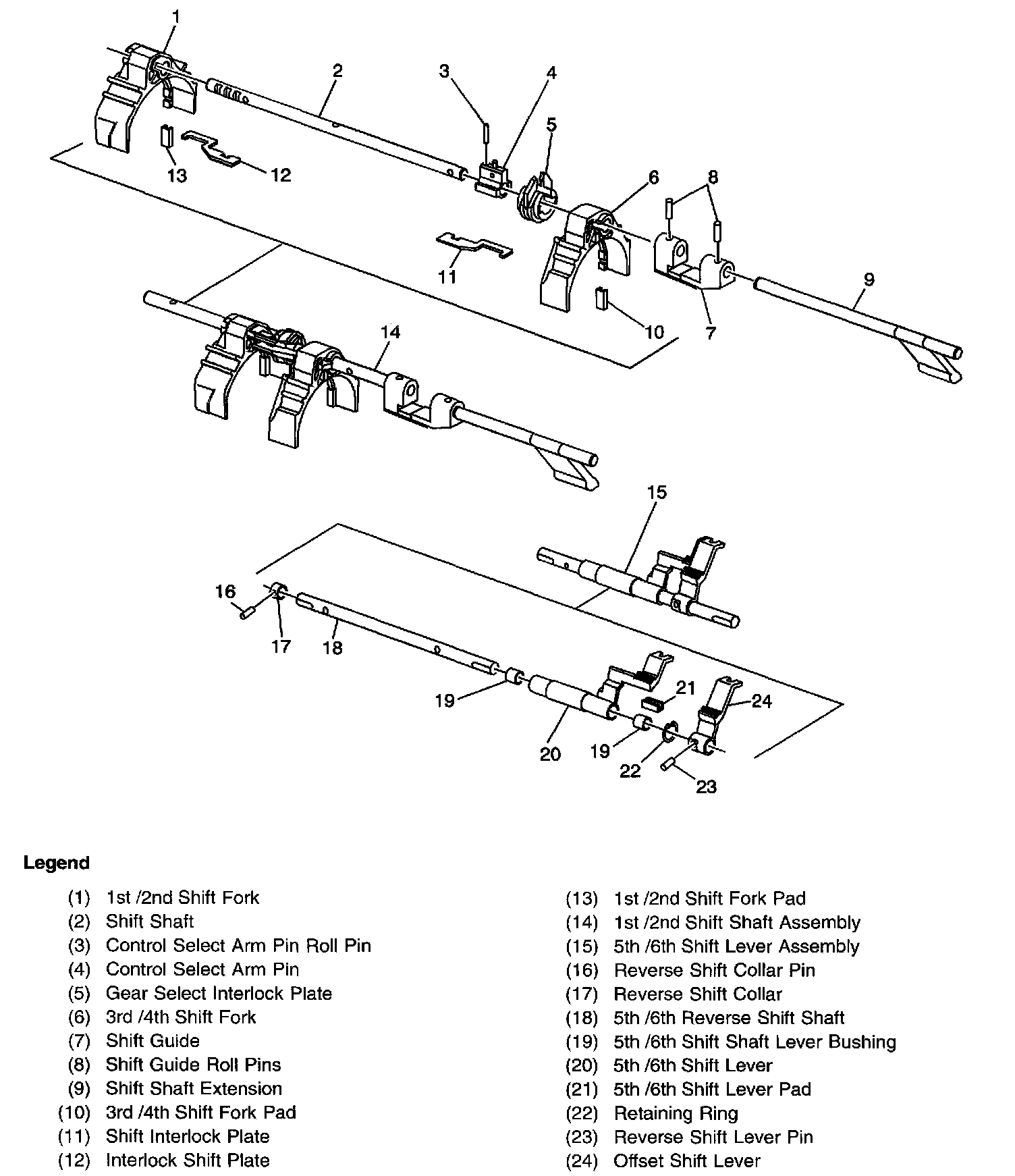

Shift Shafts
