Home >> Cadillac >> 2004 >> CTS V6-3.6L VIN 7 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Knock Sensor >> Locations

Knock Sensor: Locations

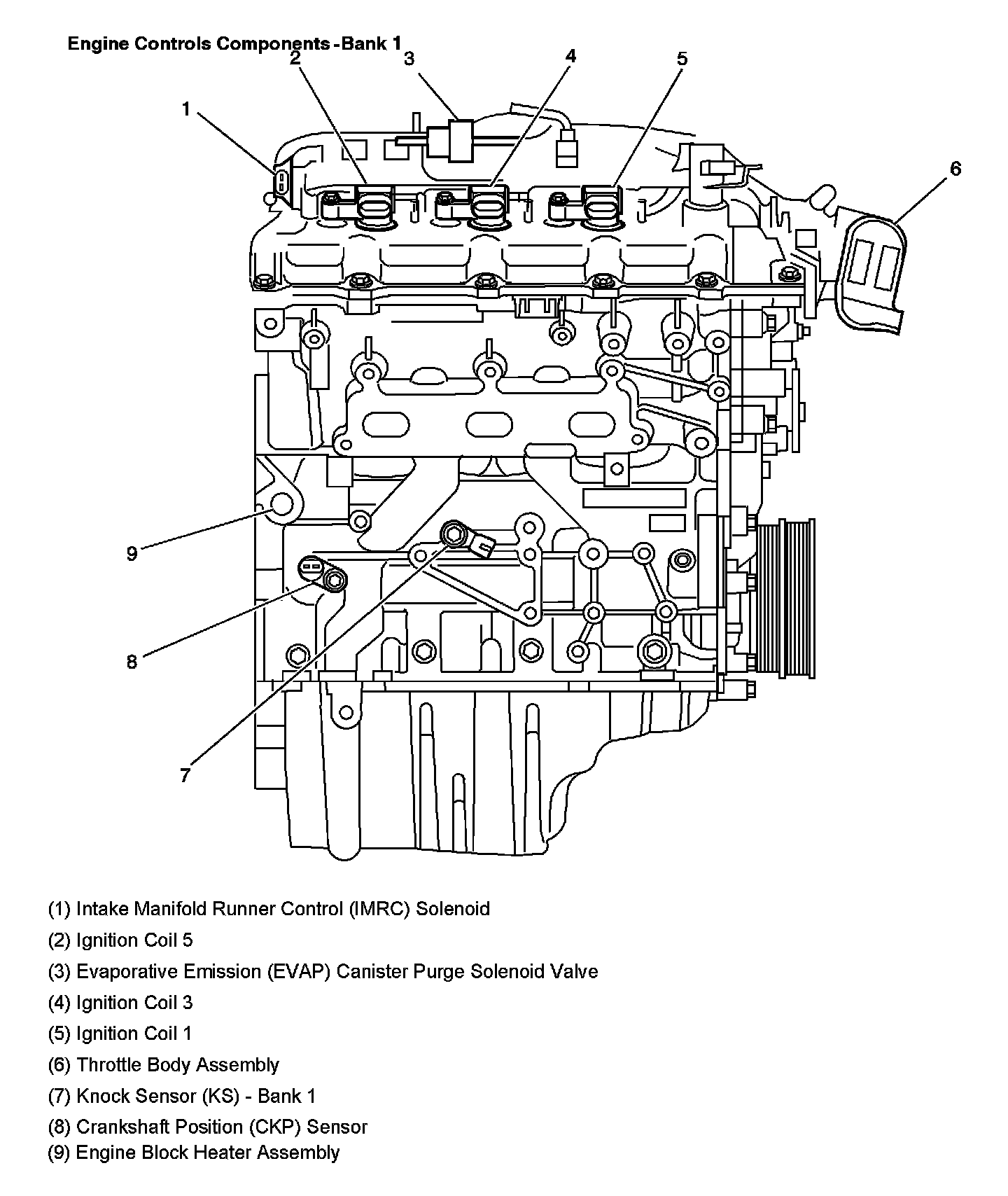

Engine Controls Components - Bank 1:

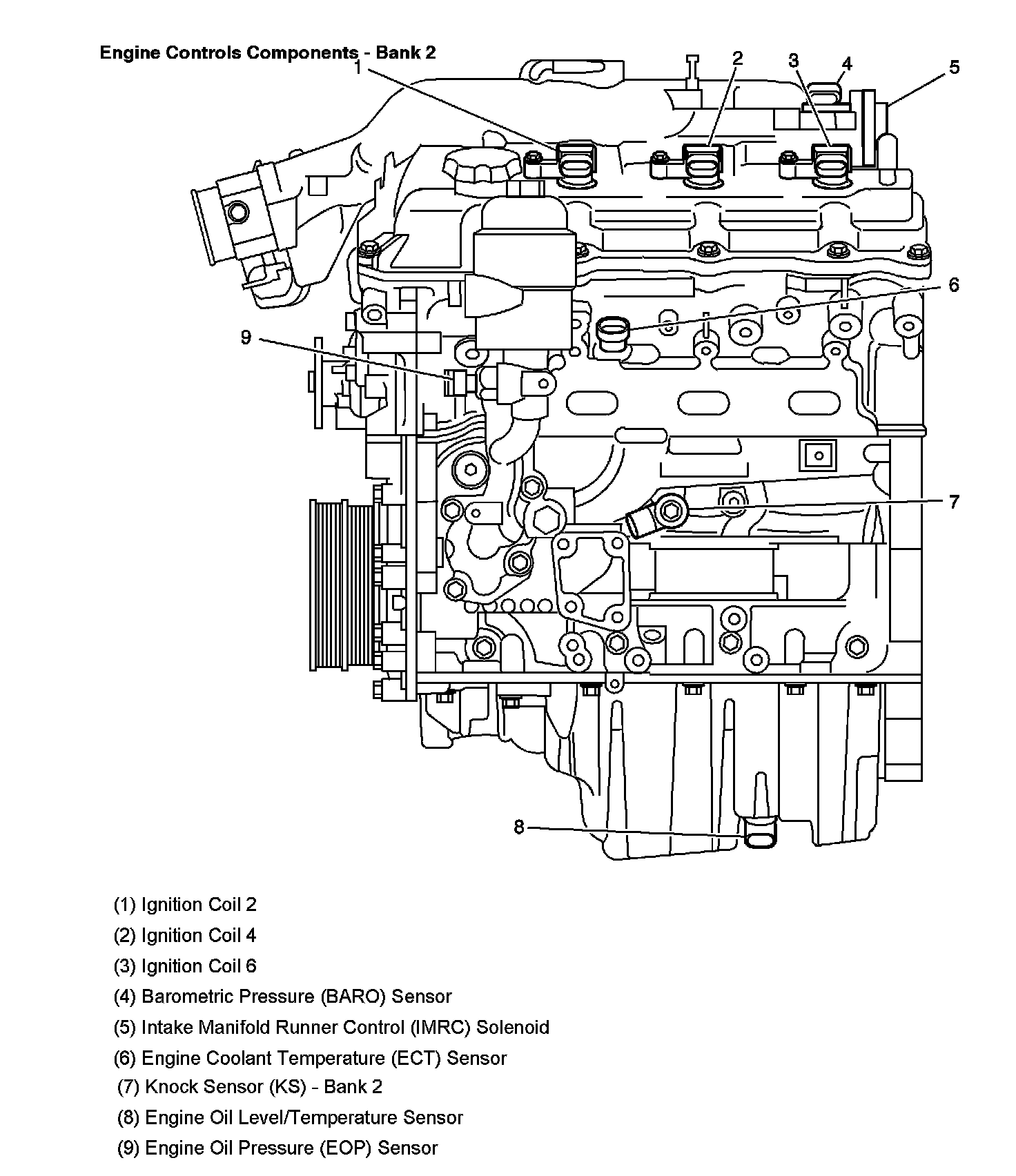

Engine Controls Components - Bank 2:
