Barometric Pressure Sensor: Locations

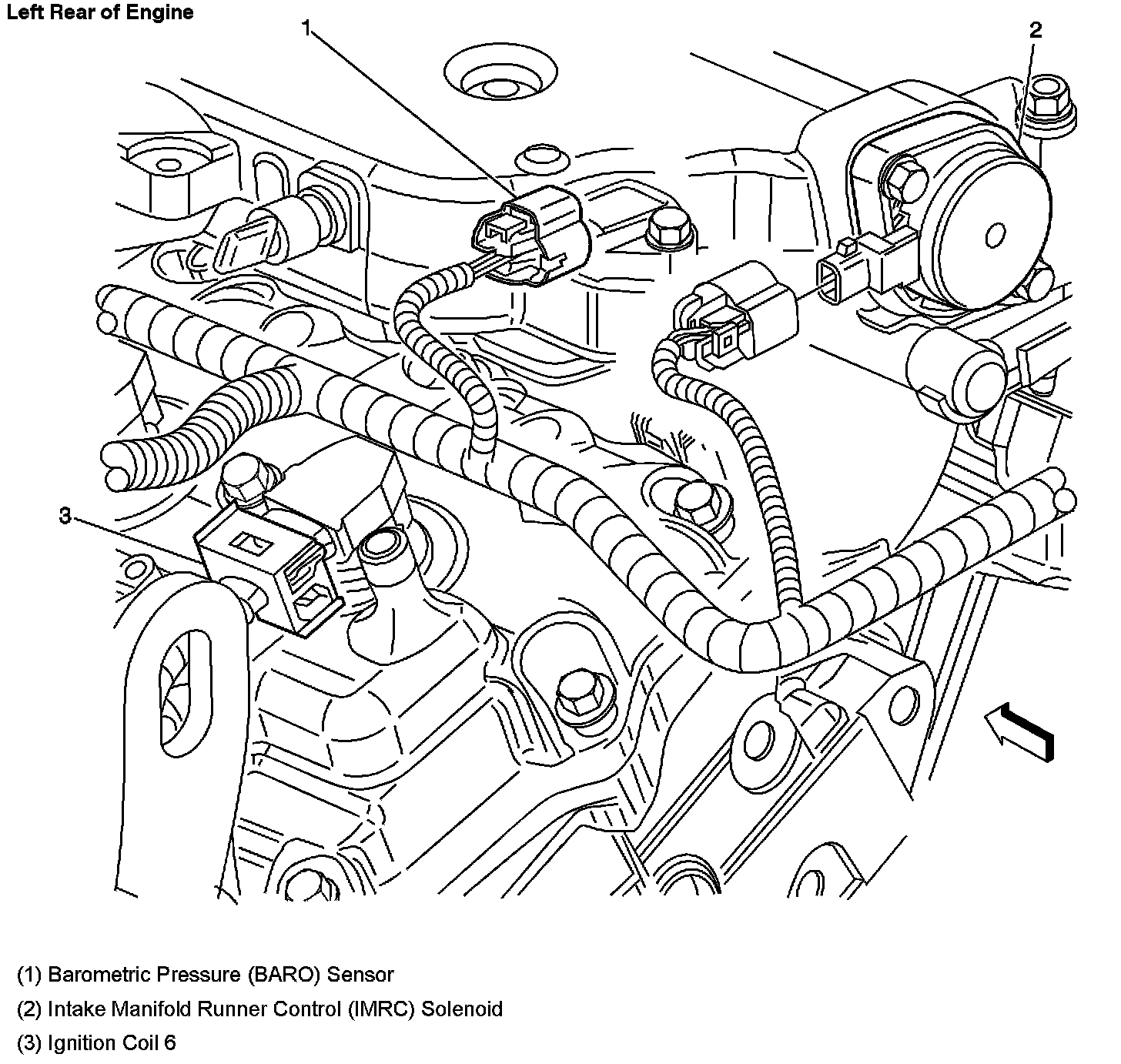

Left Rear Of Engine:



Top Of Engine Components:



Engine Controls Components - Bank 2:
