Home >> Cadillac >> 2004 >> CTS V6-3.6L VIN 7 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Camshaft Timing Components - First Design

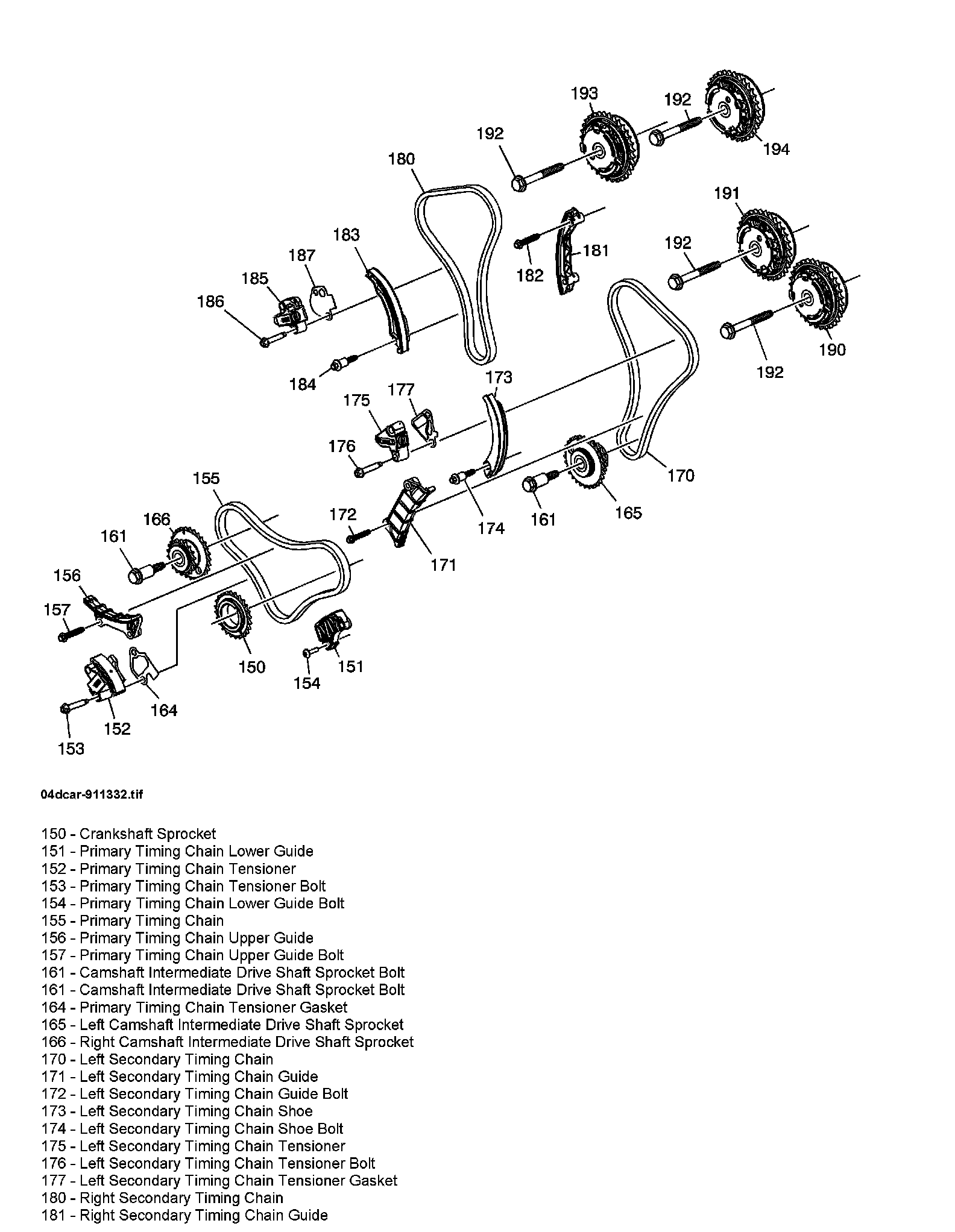

Camshaft Timing Components - First Design
