Home >> Cadillac >> 2004 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Center Support Assembly

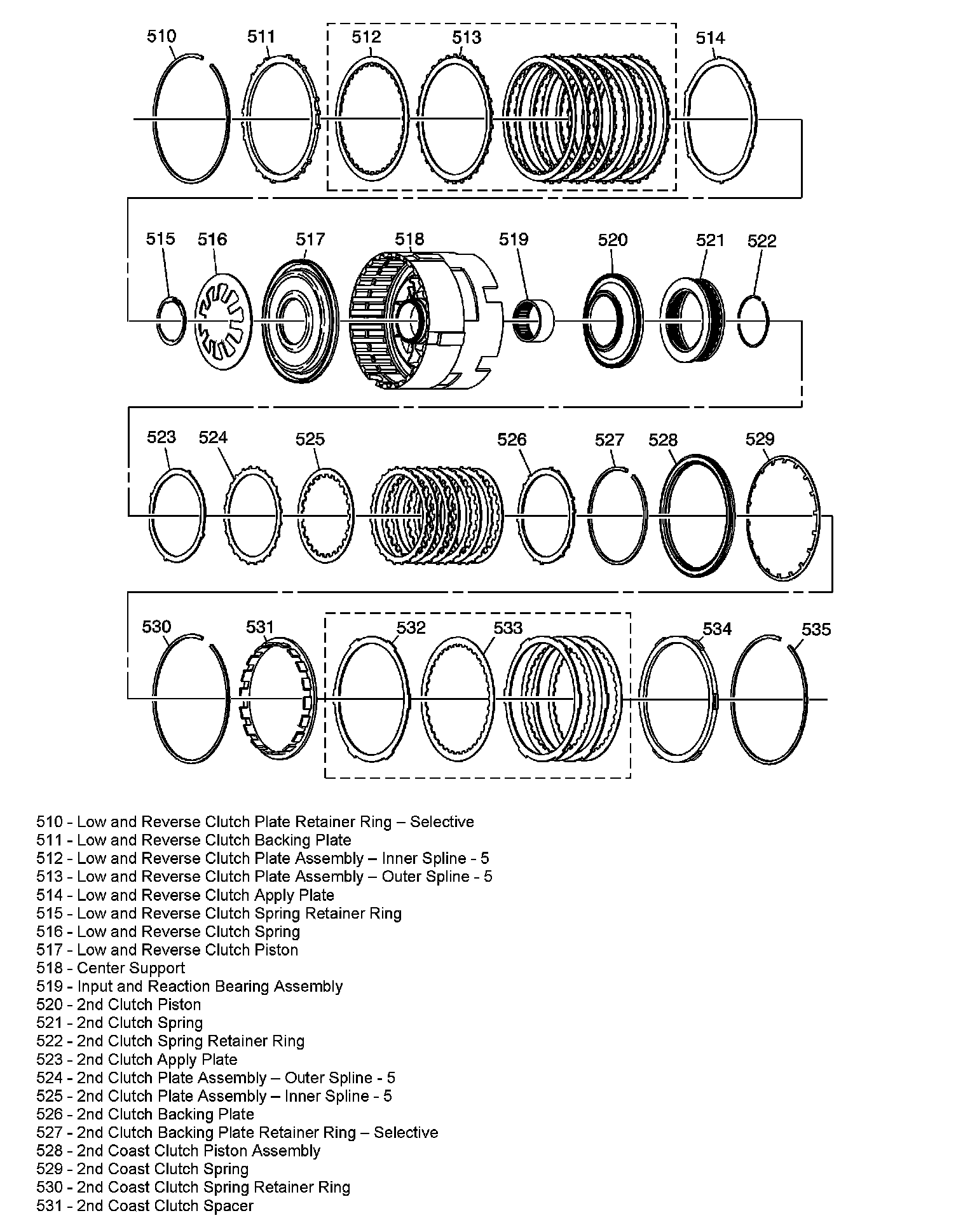

Center Support Assembly

Center Support Assembly
