Oil Pump, Engine

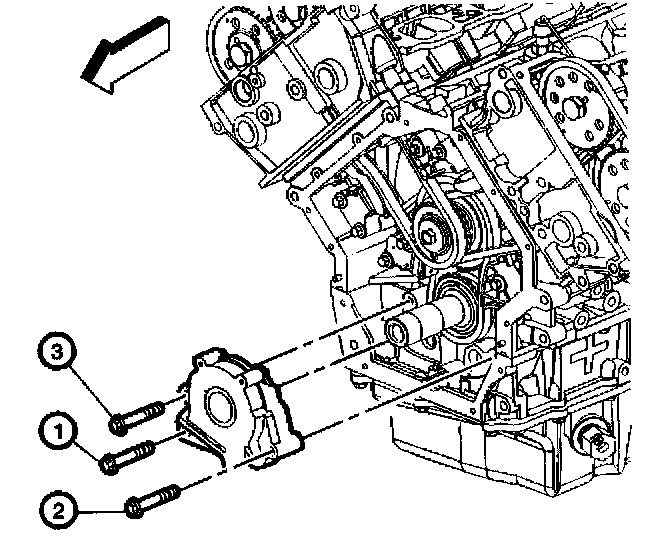

Oil Pump Mounting Bolt
First Pass 10 Nm (89 inch lbs.)
Final Pass +35 degrees
Oil Pump Type Gerotor
