Home >> Cadillac >> 2003 >> Seville V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Console

Console

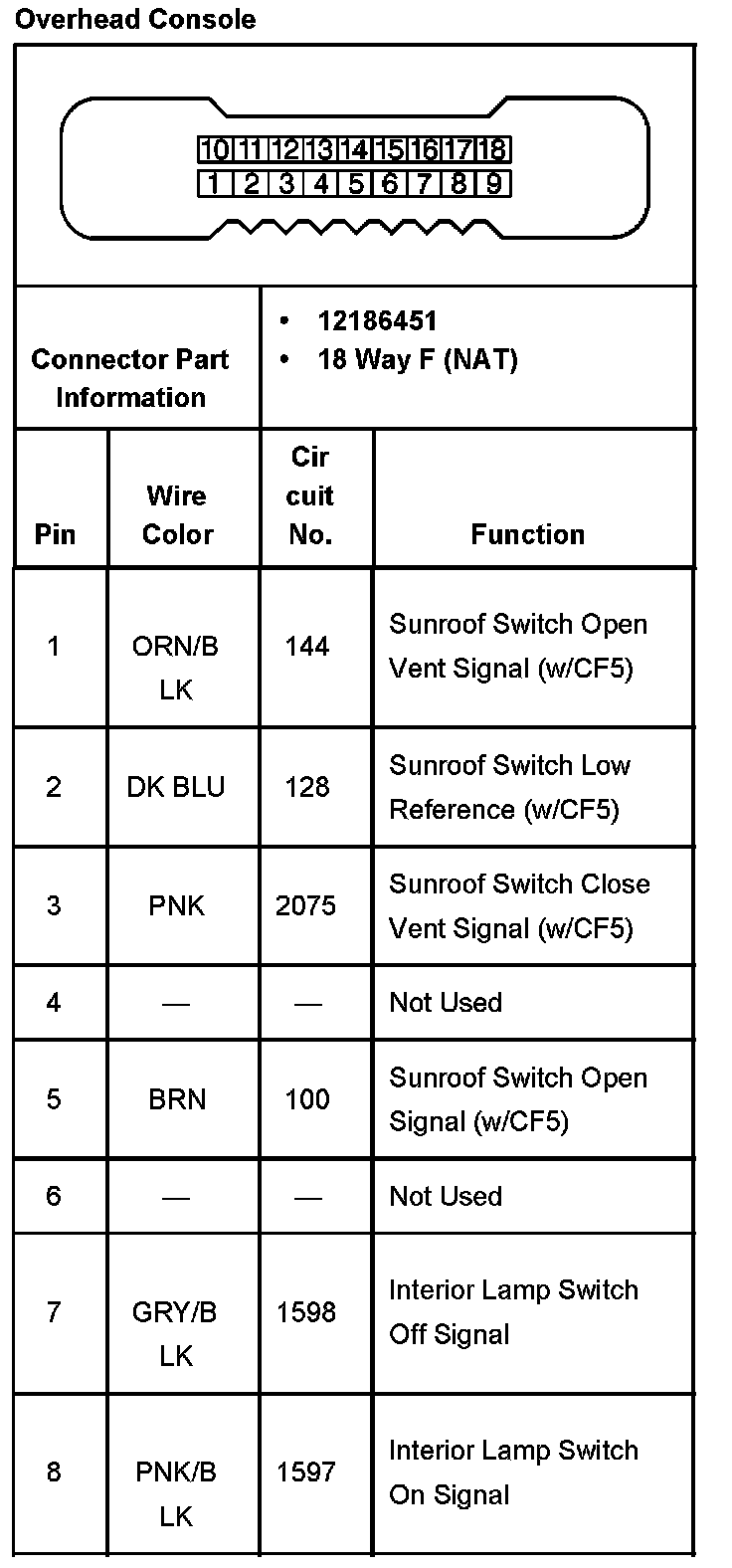

Overhead Console Part 1:

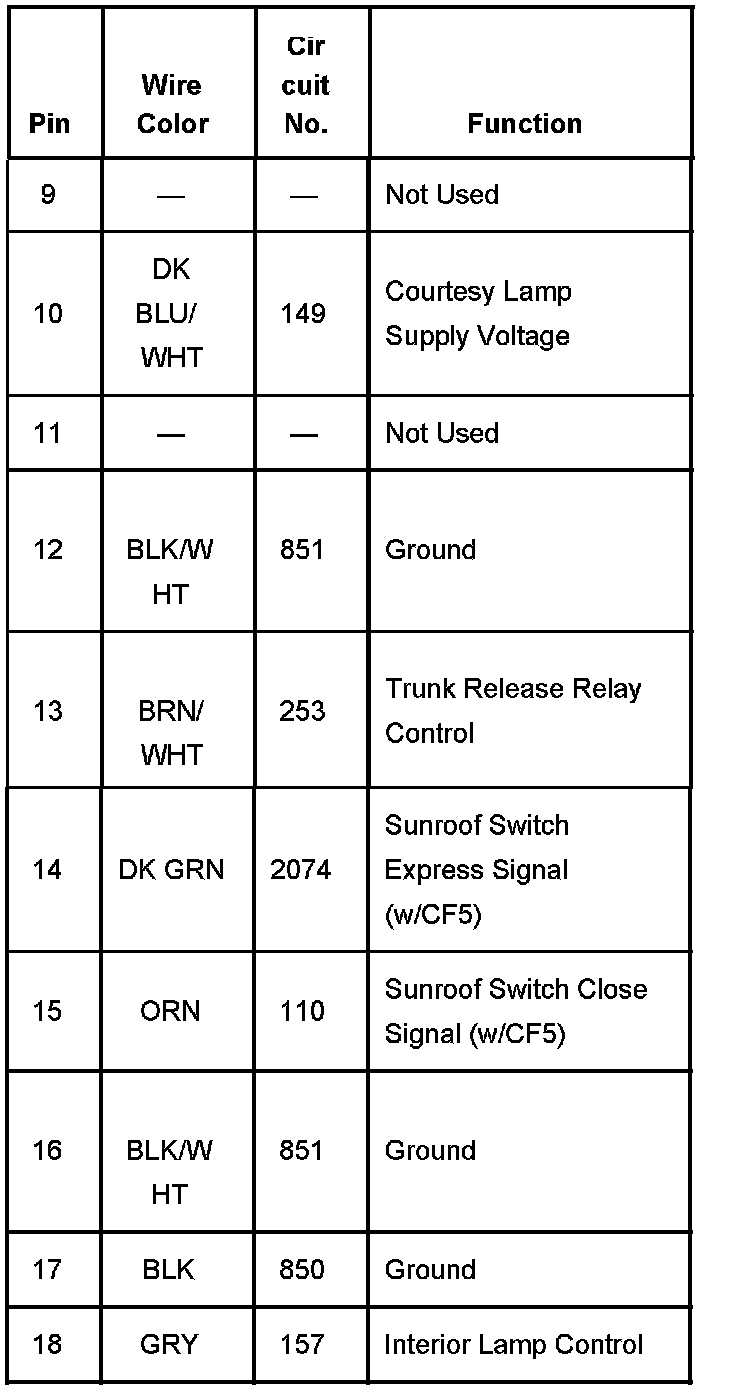

Overhead Console Part 2:
