Ignition Relay: Locations

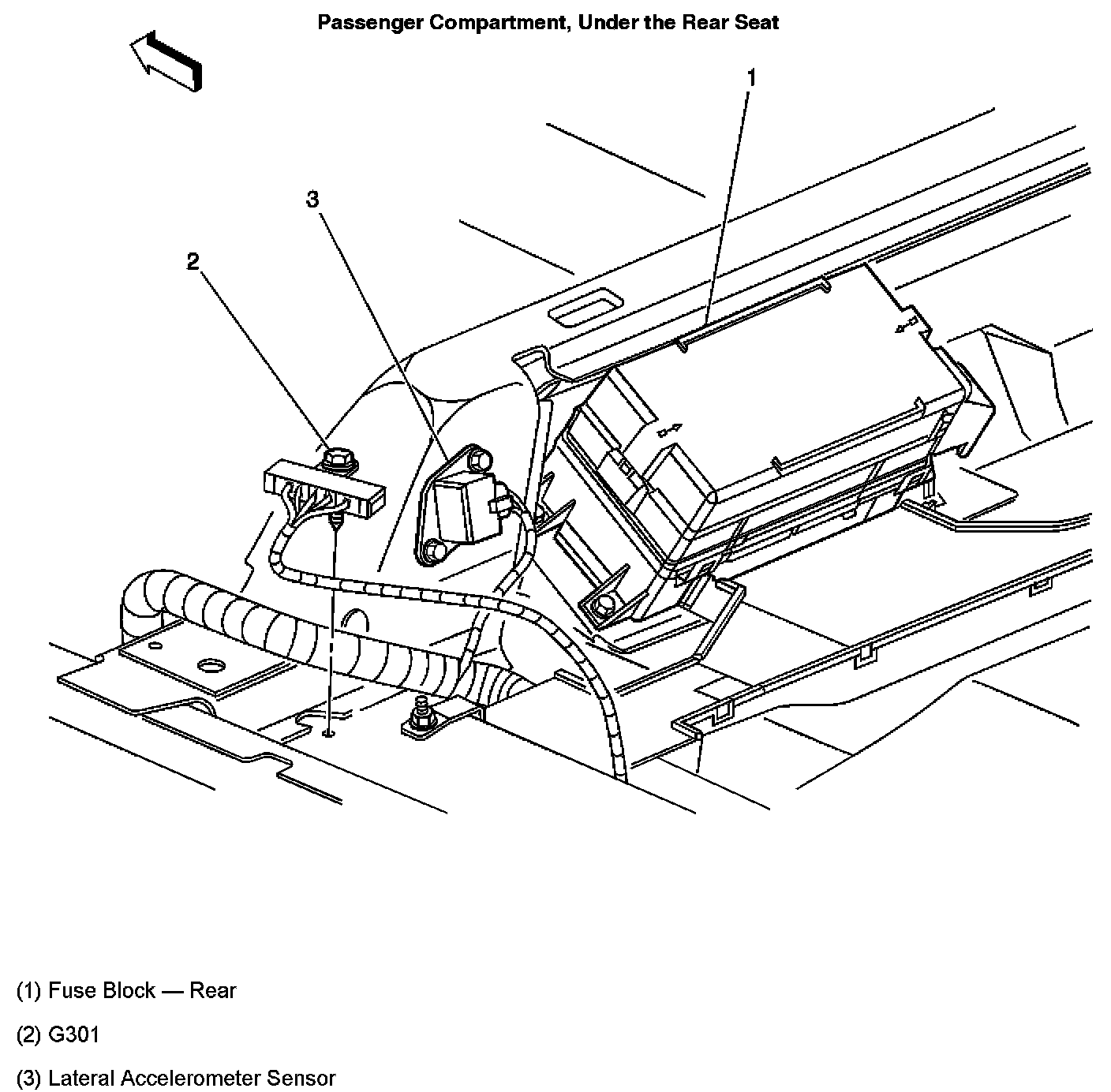

Passenger Compartment, Under The Rear Seat:

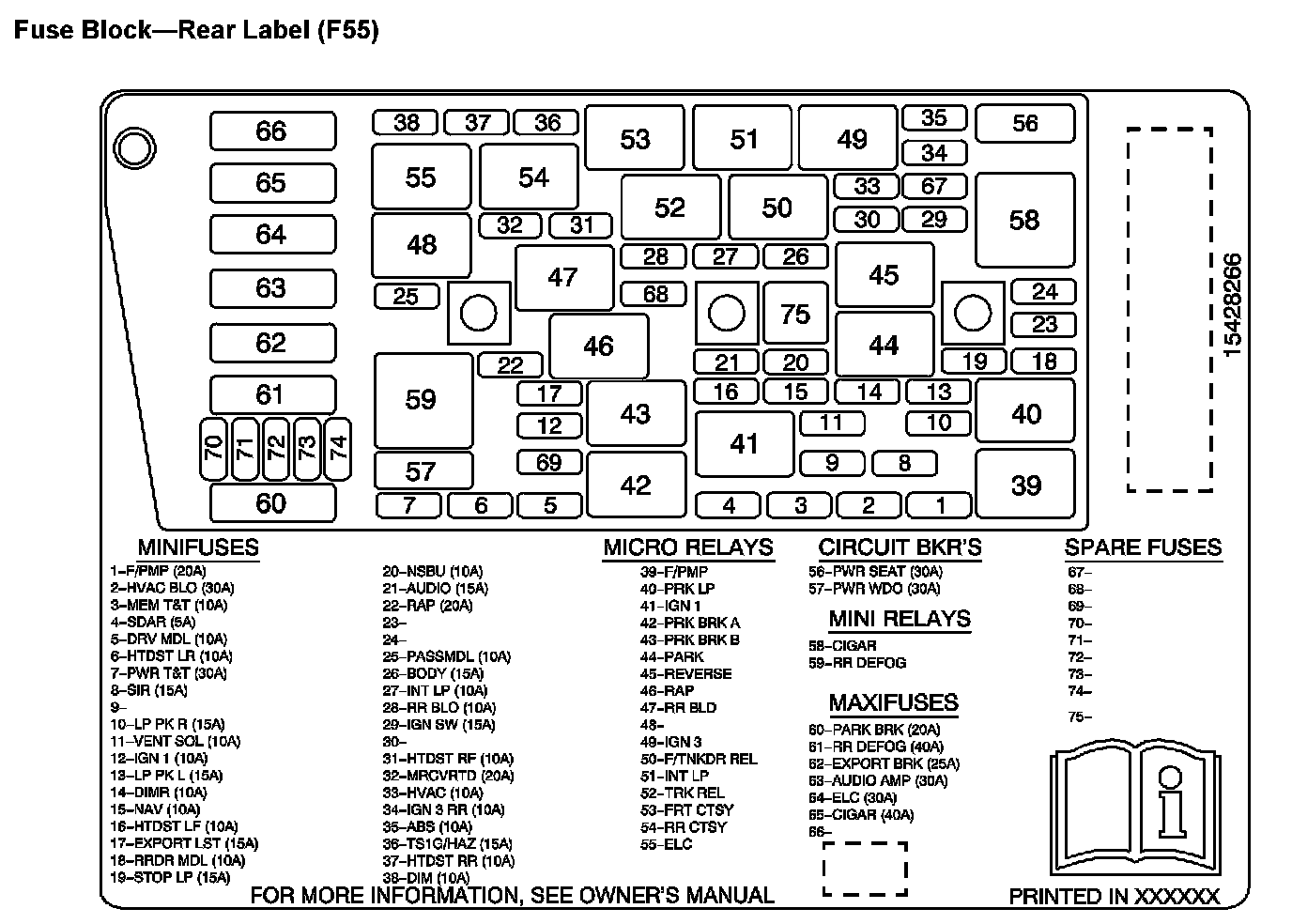

Location View:

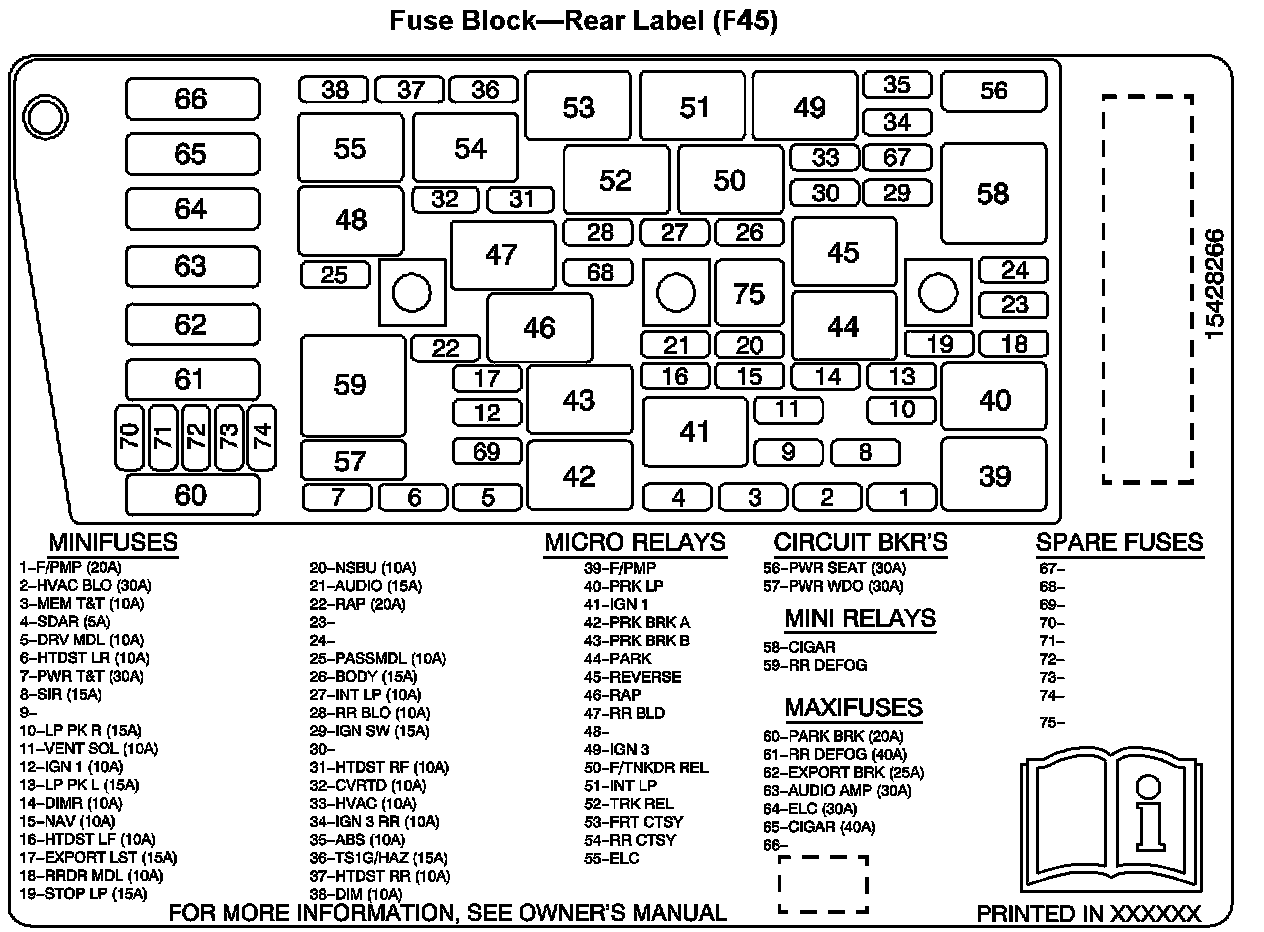

Location View:

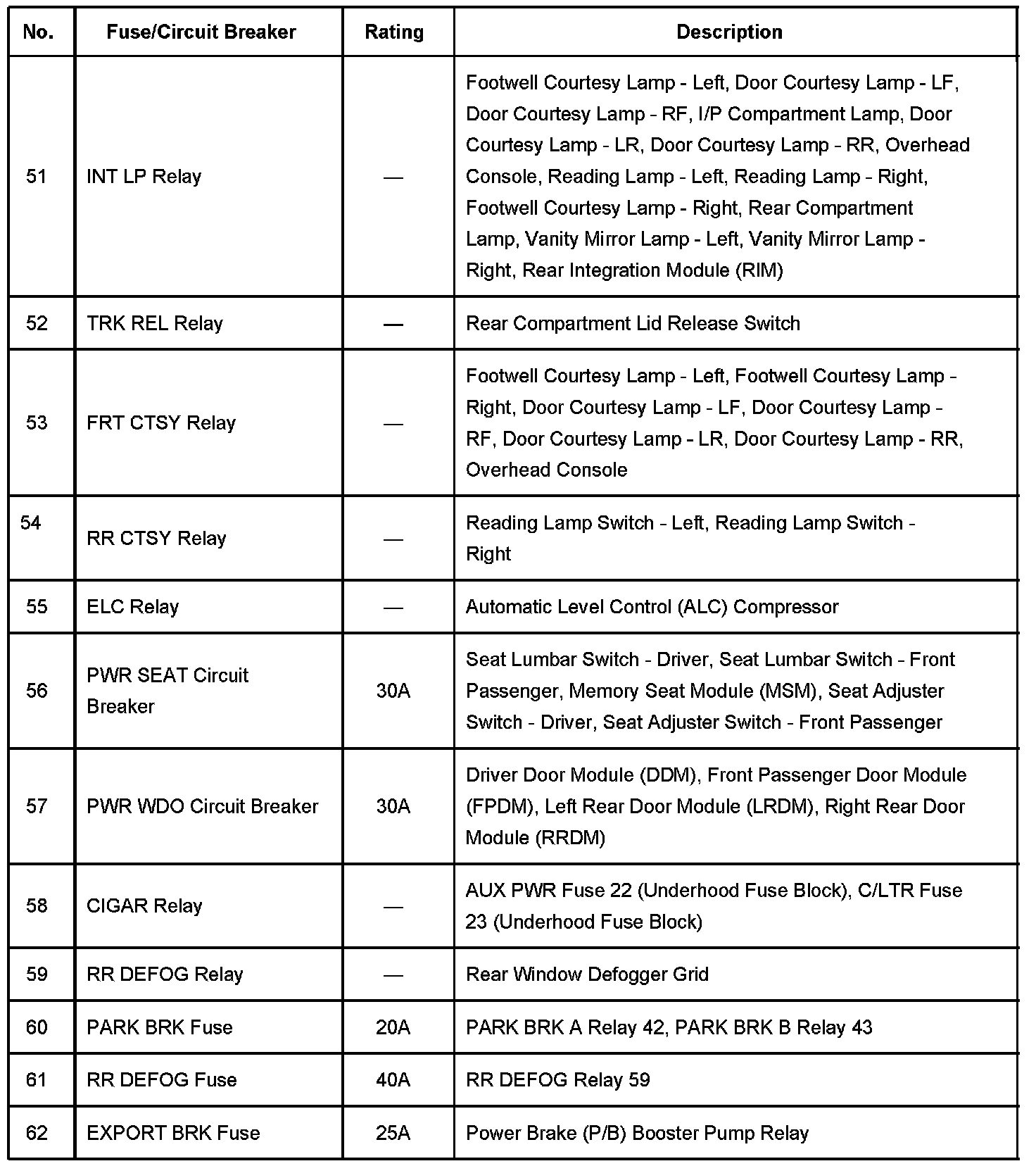

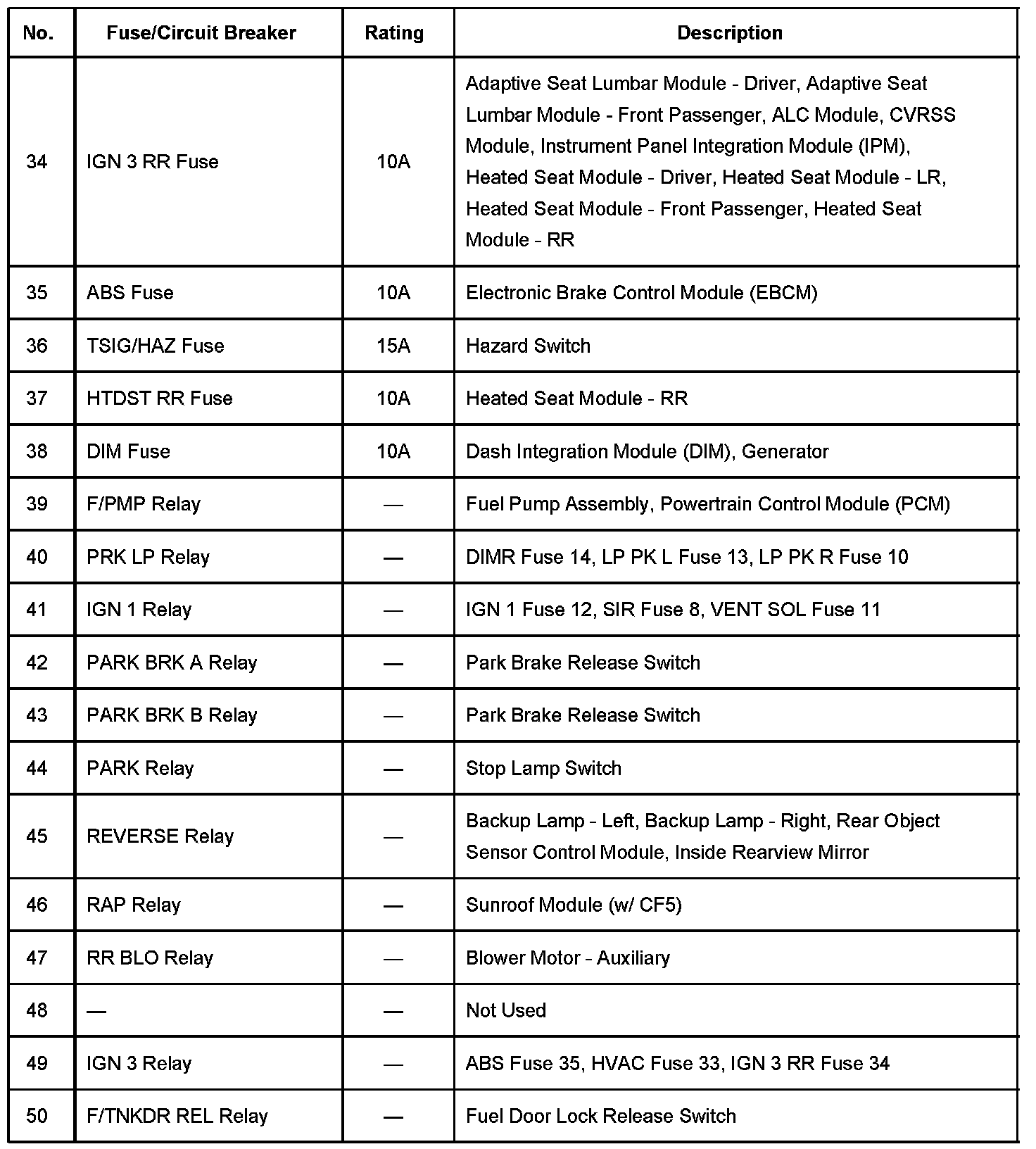

Application Table Part 1:

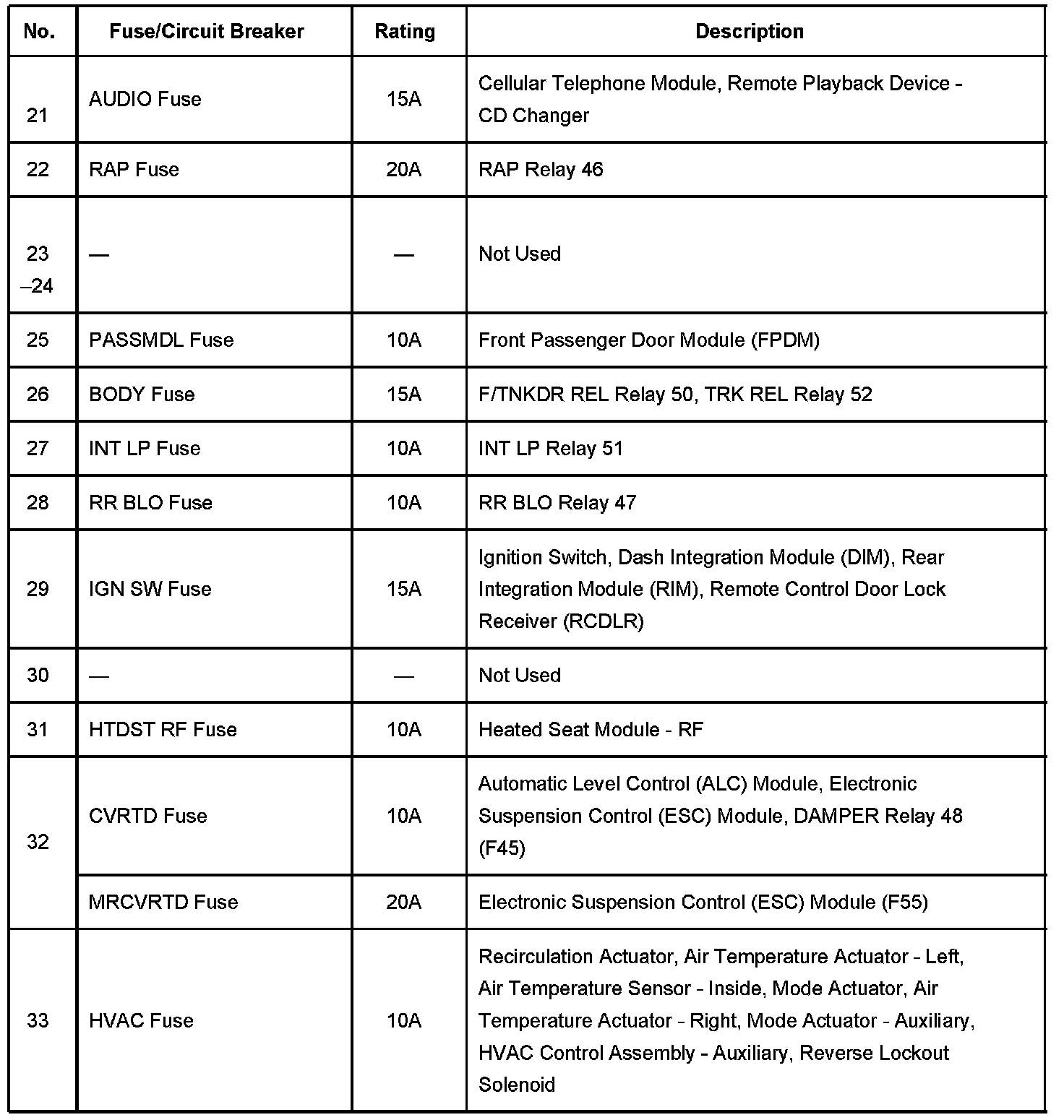

Application Table Part 2:

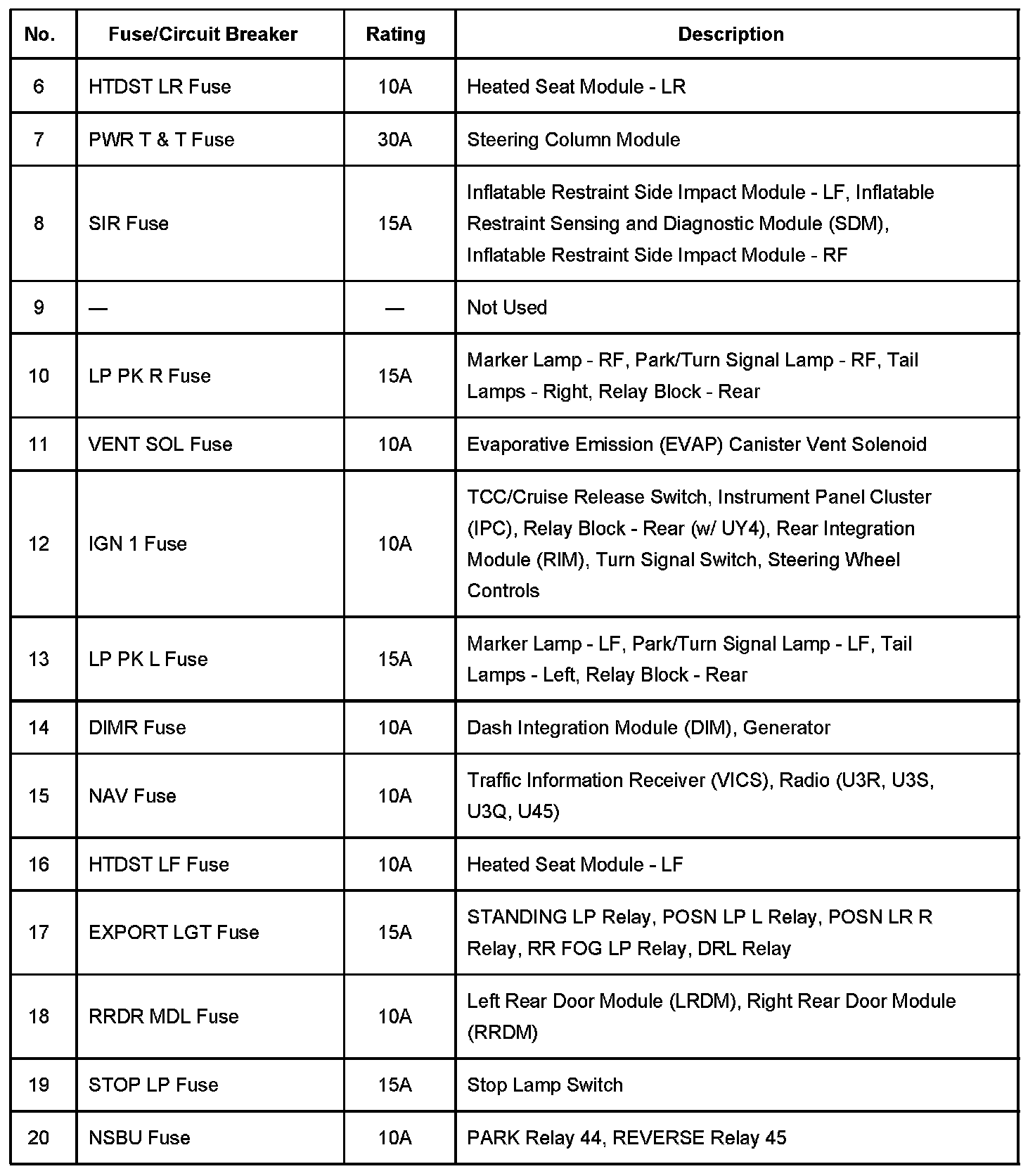

Application Table Part 3:

Application Table Part 4:

Application Table Part 5:

Application Table Part 6:

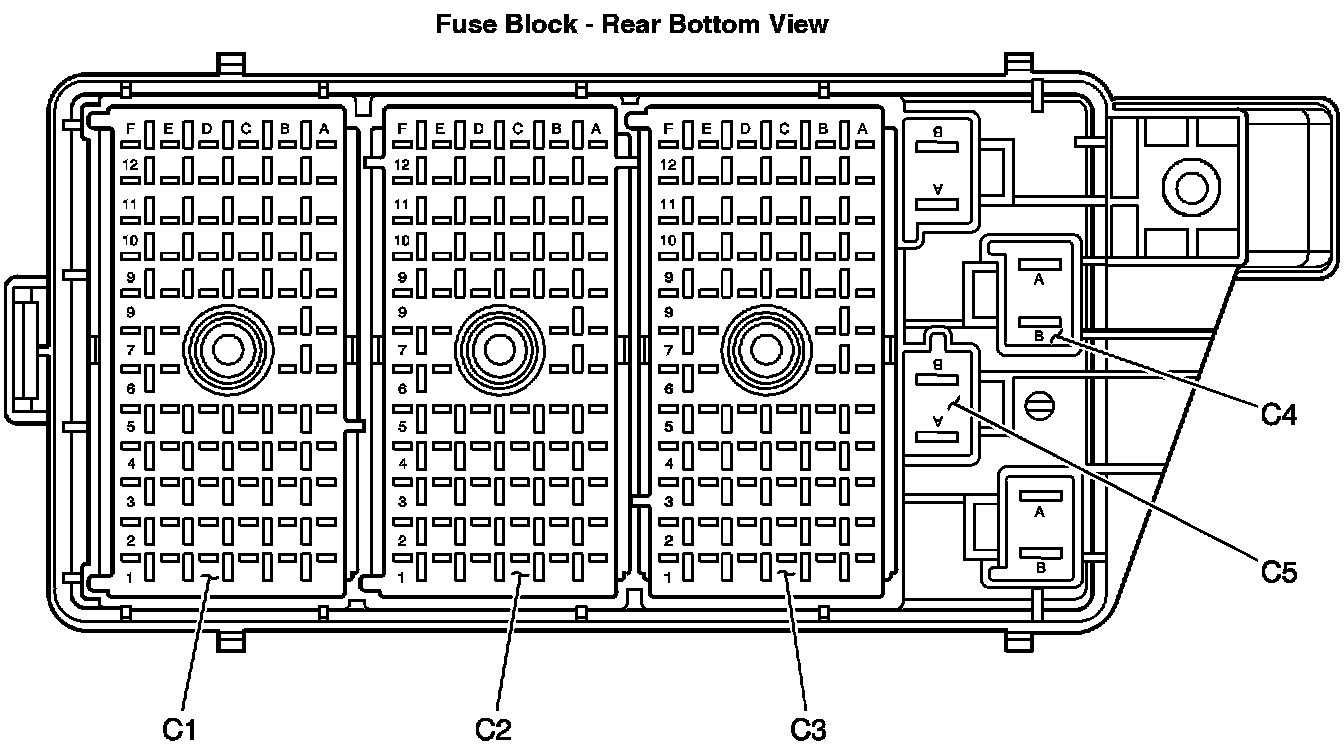

Location View:

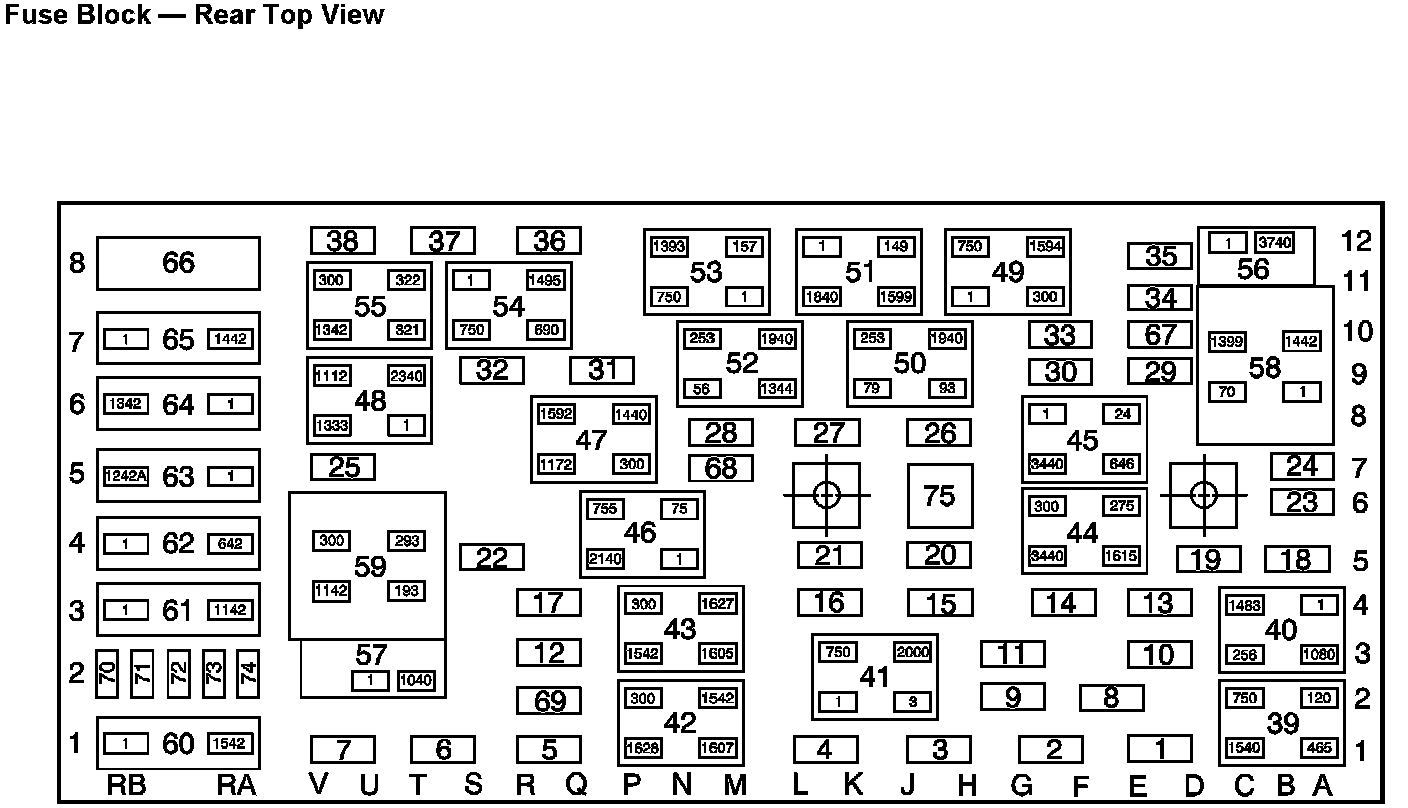

Location View:
