Scan Tool Data List

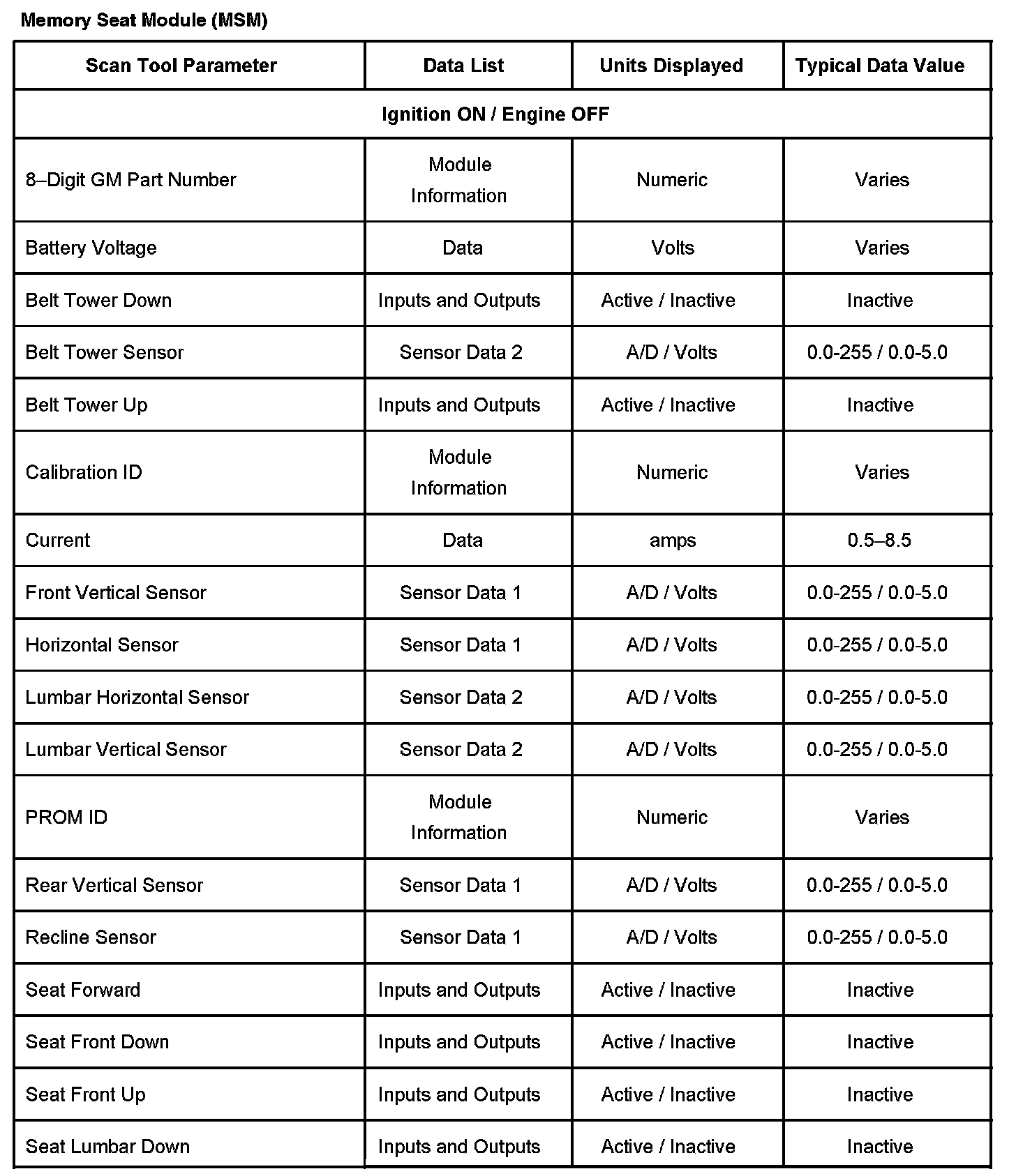

Memory Seat Module (MSM) Part 1:



Memory Seat Module (MSM) Part 2:



Driver Door Module (DDM):

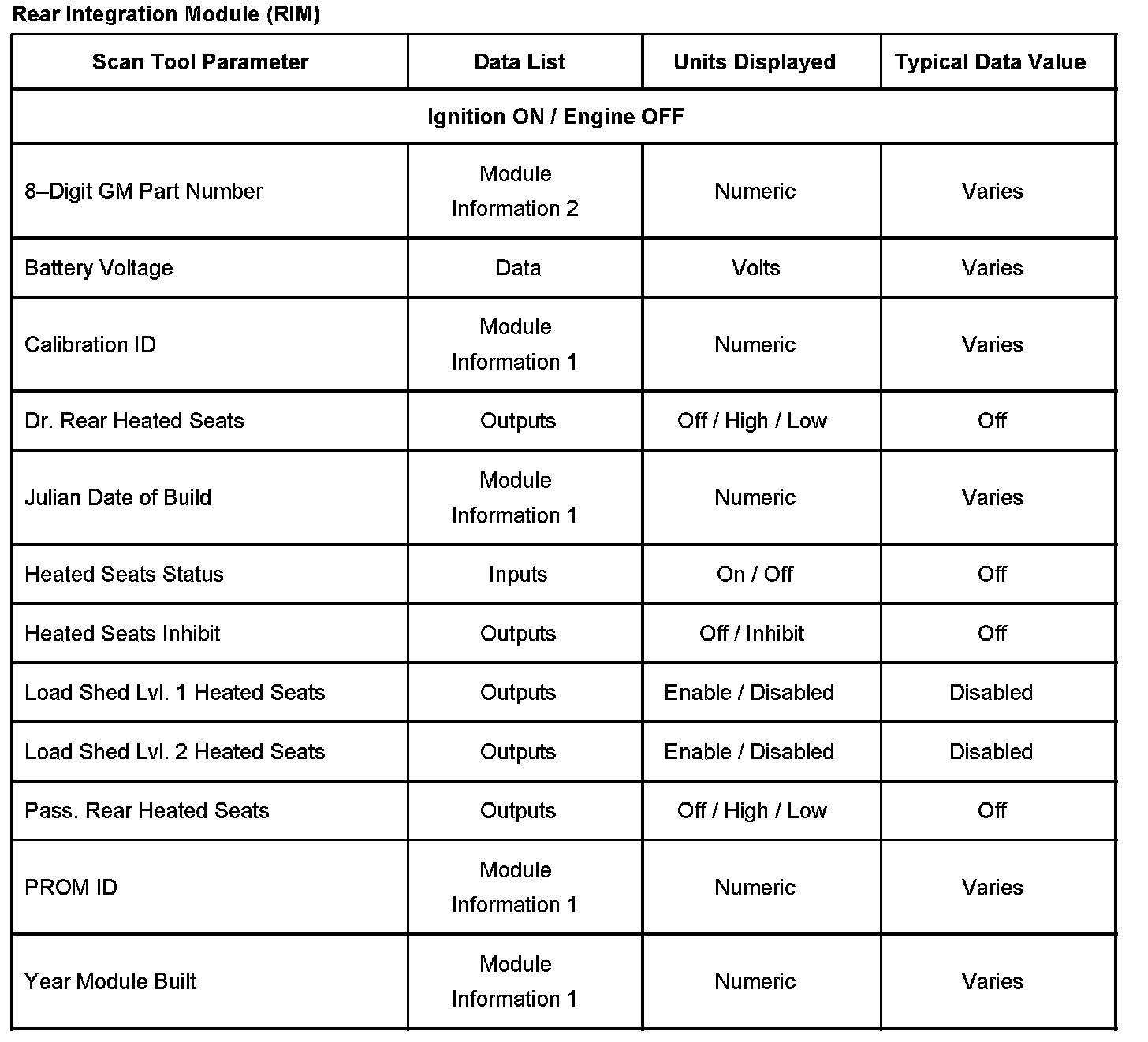

Rear Integration Module (RIM):



Dash Integration Module (DIM):
