Removal Procedure

IMPORTANT: Before replacement of the DIM module (1), record the personalization settings in order to transfer the settings after the DIM module (1) has been replaced.
  1. Remove the left sound insulator. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  or INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
  2. Disconnect the DIM electrical connectors (2).

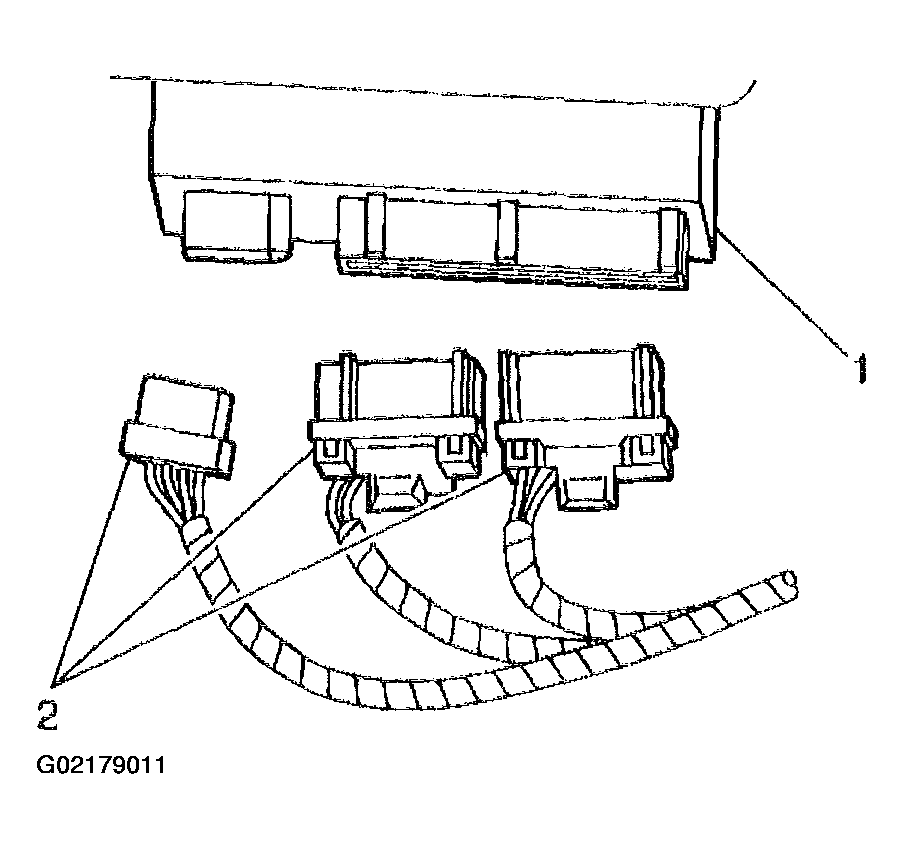

    Fig 1: Disconnecting DIM Electrical Connectors (RHD)
    G02179011Courtesy of GENERAL MOTORS CORP.
  3. Depress inward on the locking tab (2).
  4. With the locking tab (2) depressed, slide the DIM (1) downward.
  5. Remove the module (1) from the bracket.

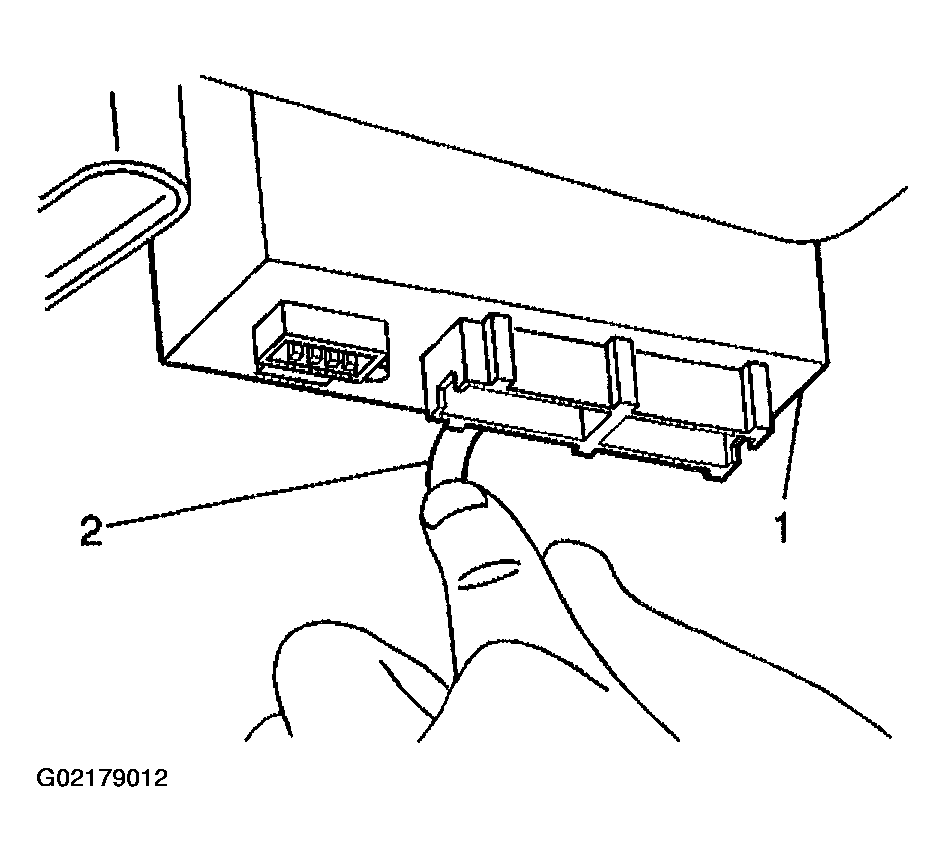

    Fig 2: Disengaging Locking Tab (RHD)
    G02179012Courtesy of GENERAL MOTORS CORP.
