Removal Procedure

IMPORTANT: Before replacement of the DIM module (1), record the personalization settings in order to transfer the setting after the DIM module (1) has been replaced.

Remove the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT RIGHT (LHD) or INSTRUMENT PANEL, GAGES, AND CONSOLE in Instrument Panel, Gages and Console.
Disconnect the DIM electrical connectors (2).

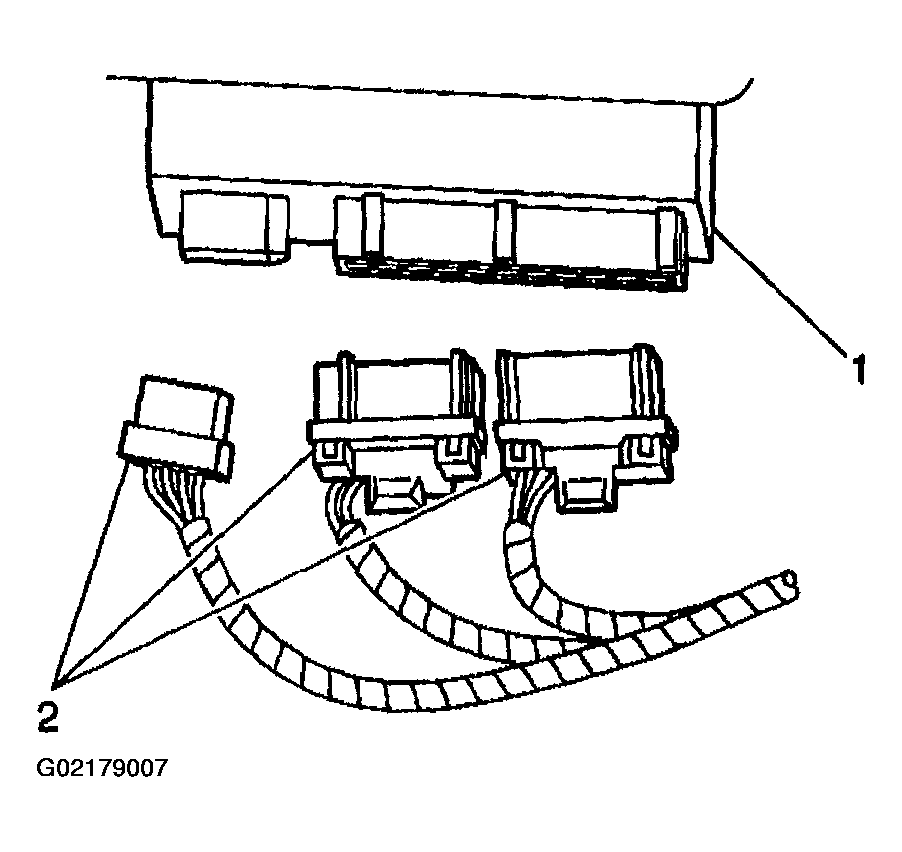

Fig 1: Disconnecting Dim Electrical Connectors (LHD)
Courtesy of GENERAL MOTORS CORP.
Depress inward on the locking tab (2).
With the locking tab (2) depressed, slide the DIM (1) downward.

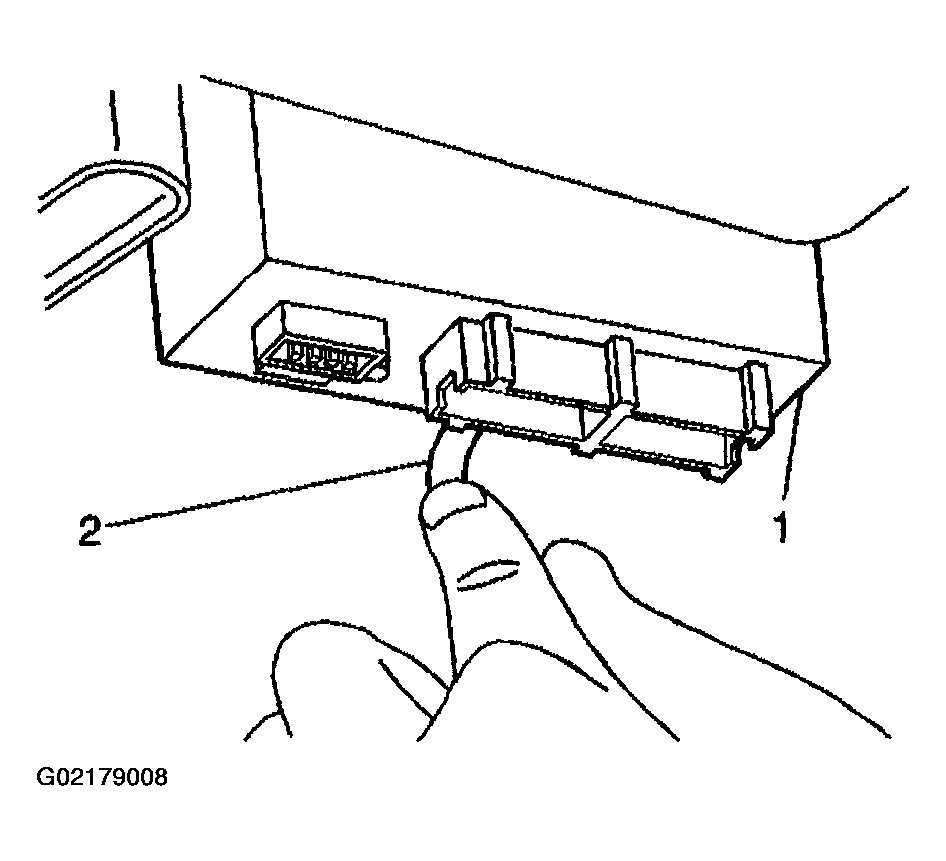

Fig 2: Disengaging Locking Tab (LHD)
Courtesy of GENERAL MOTORS CORP.
Remove the module (1) from the bracket.
