Home >> Cadillac >> 2003 >> Escalade V8-5.3L VIN T >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Memory Positioning Module >> Locations

Memory Positioning Module: Locations

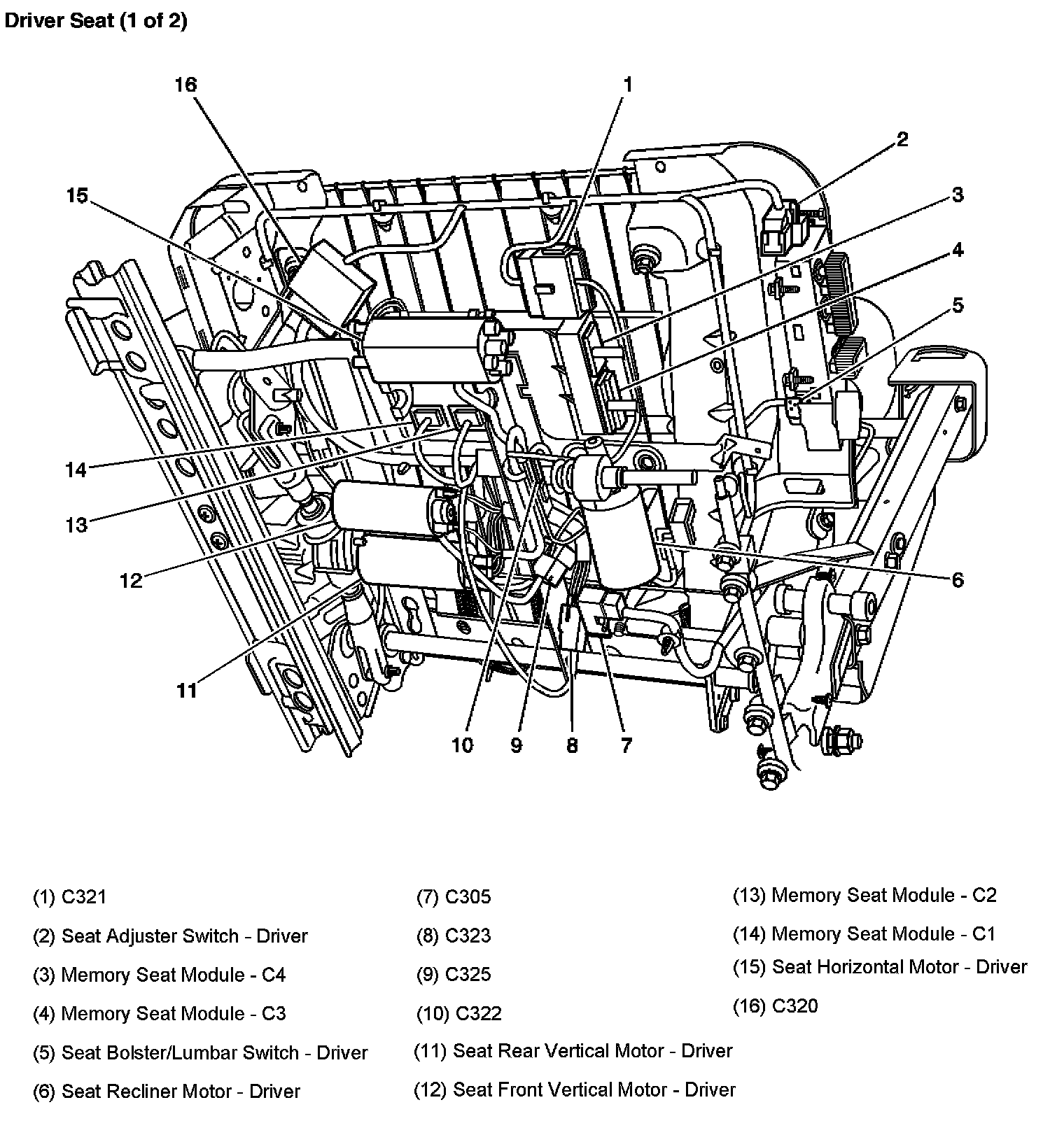

Driver Seat Part 1:

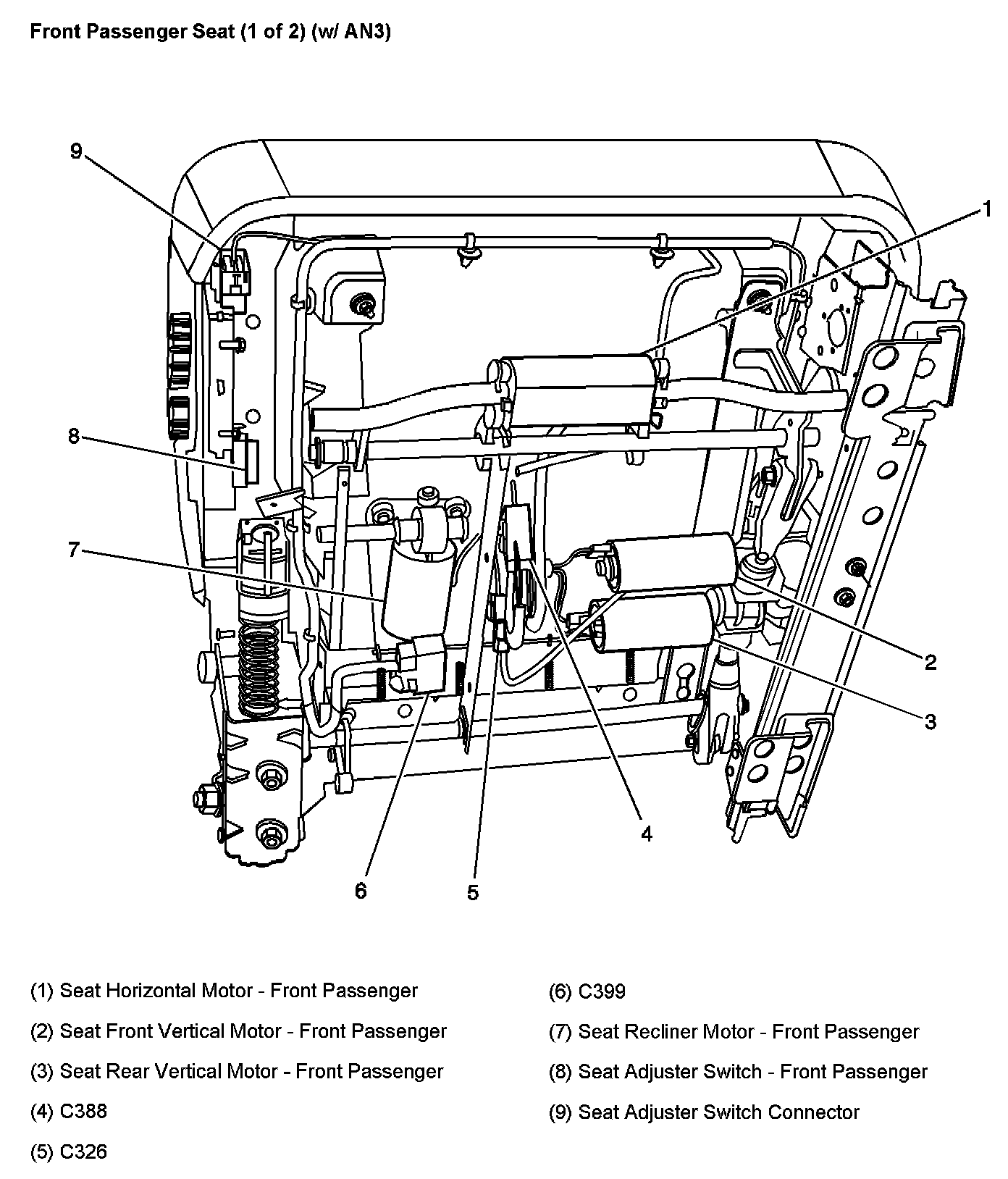

Front Passenger Seat (w/AN3) Part 1:
