Oil Pressure Sensor: Locations

Locations View:



Locations View:

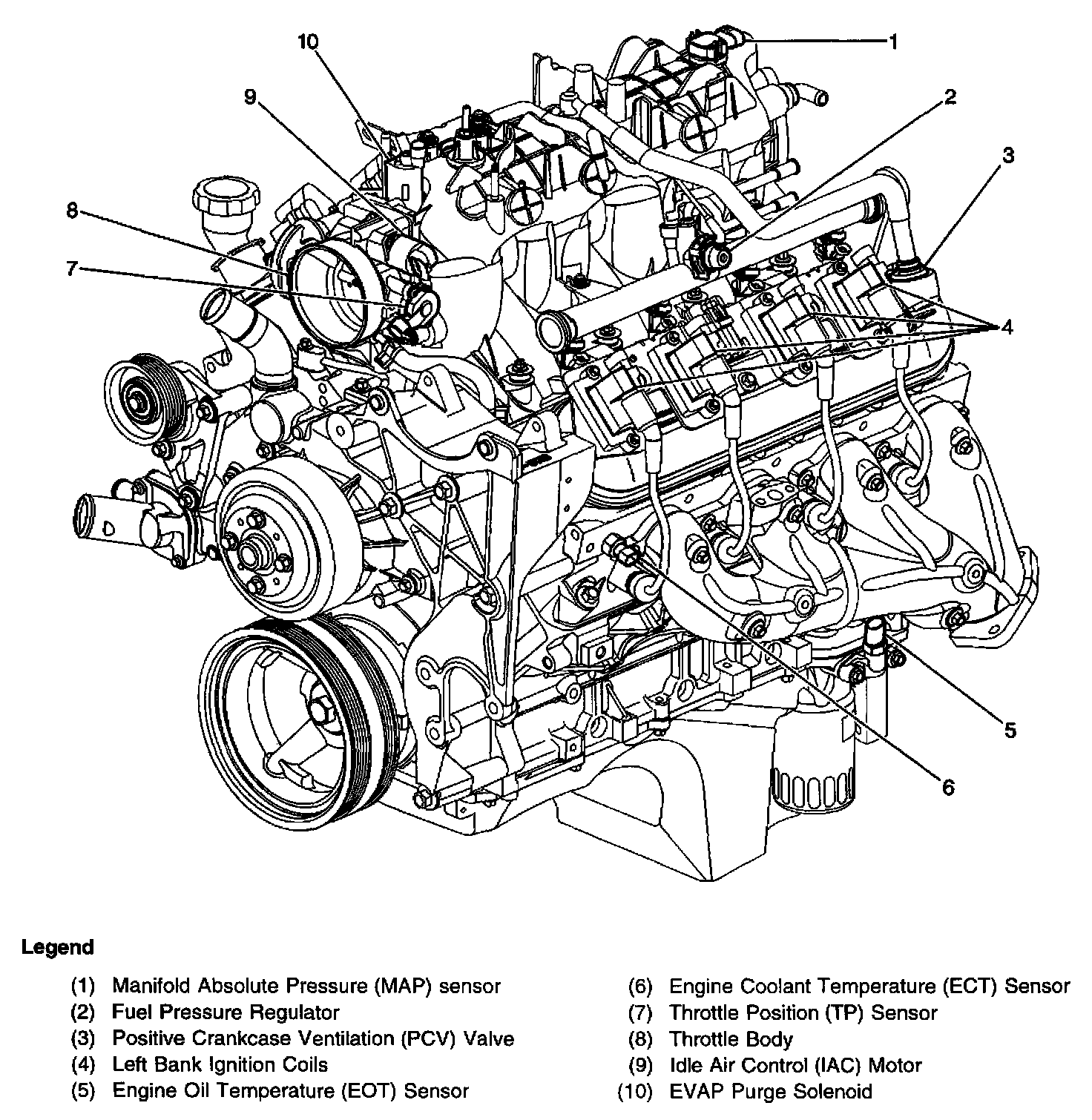

Left Side of the Engine Components:

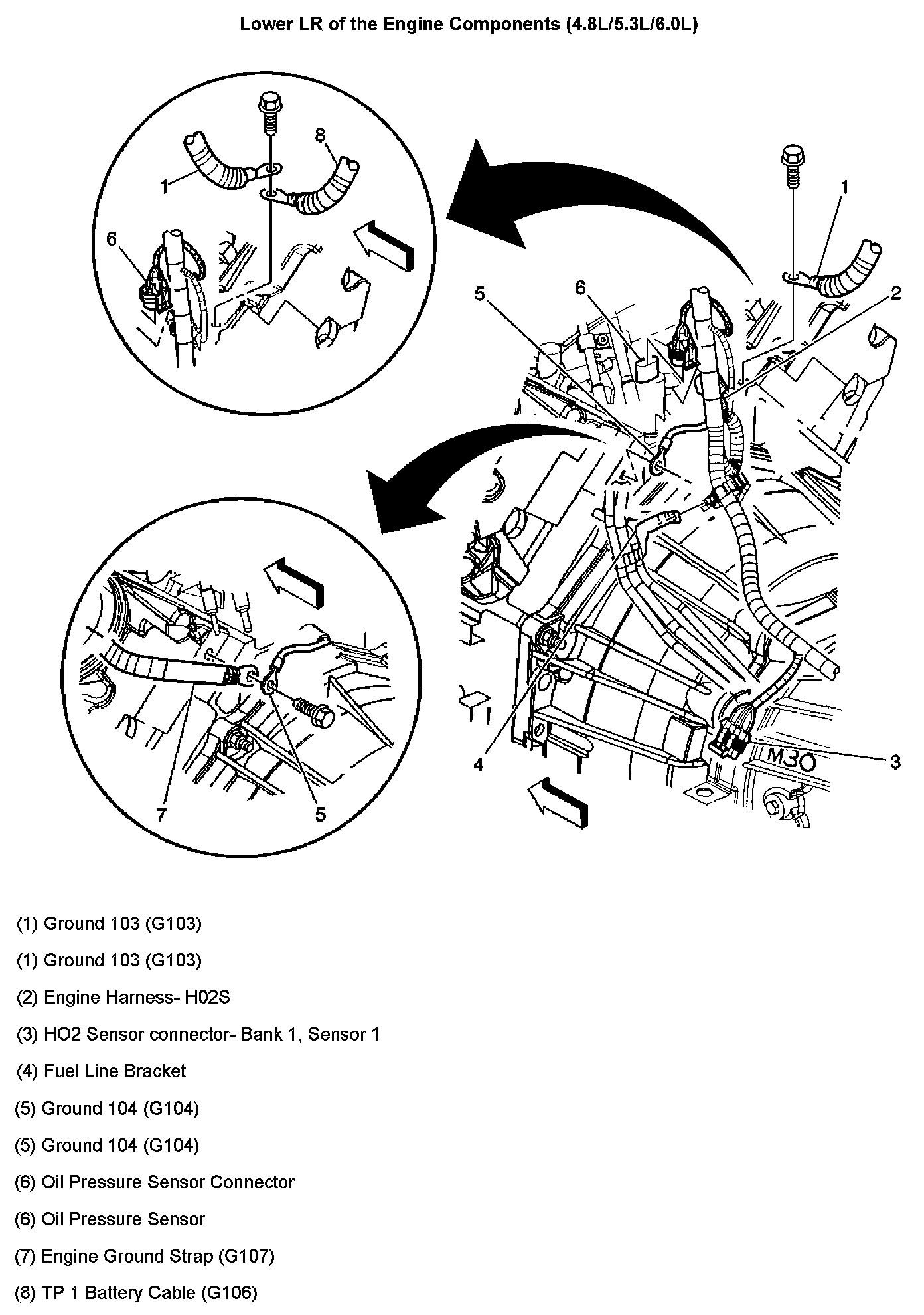

Lower LR Of The Engine Components:

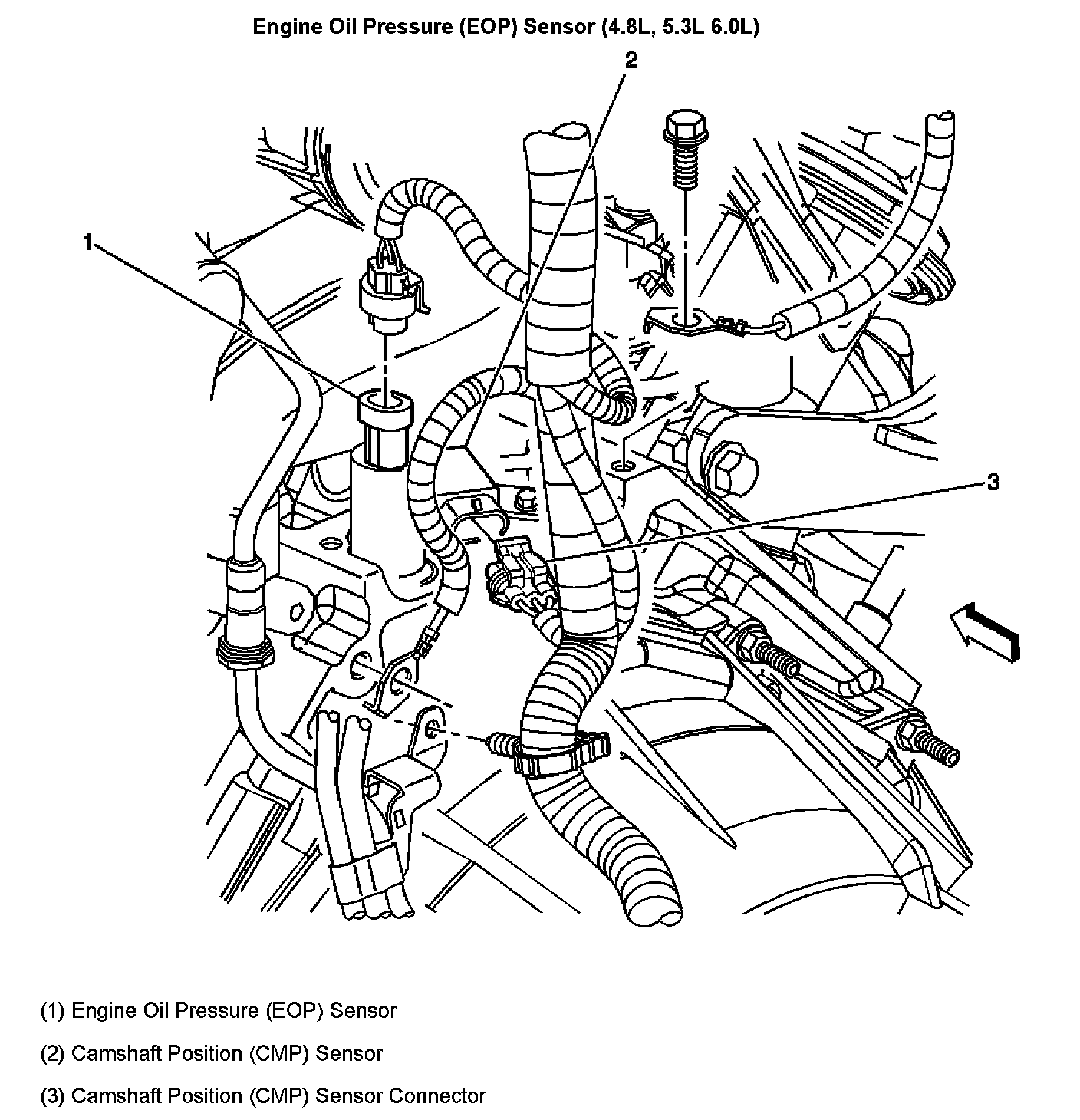

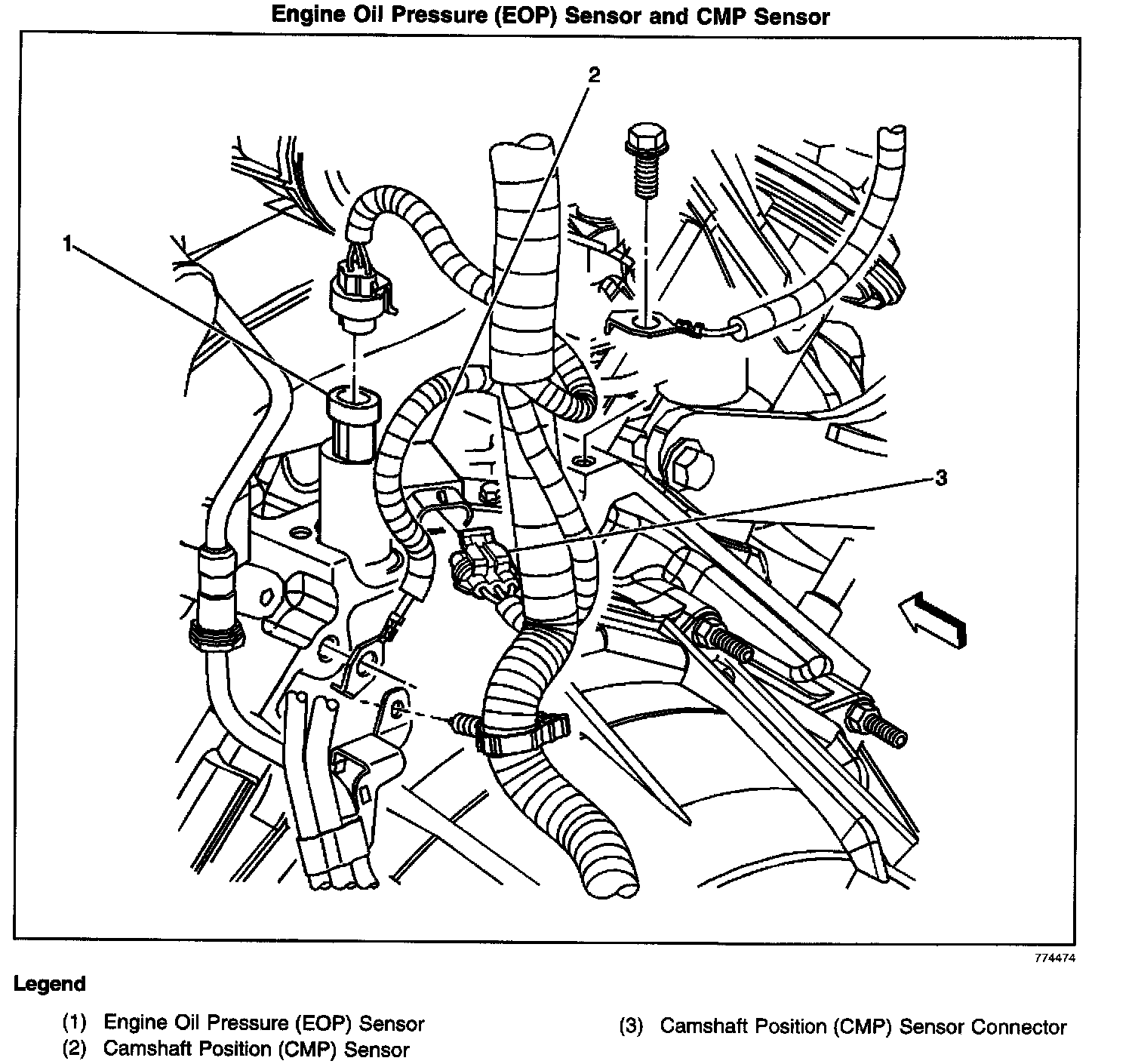

Engine Oil Pressure (EOP) Sensor:
