Coolant Temperature Sensor/Switch (For Computer): Locations

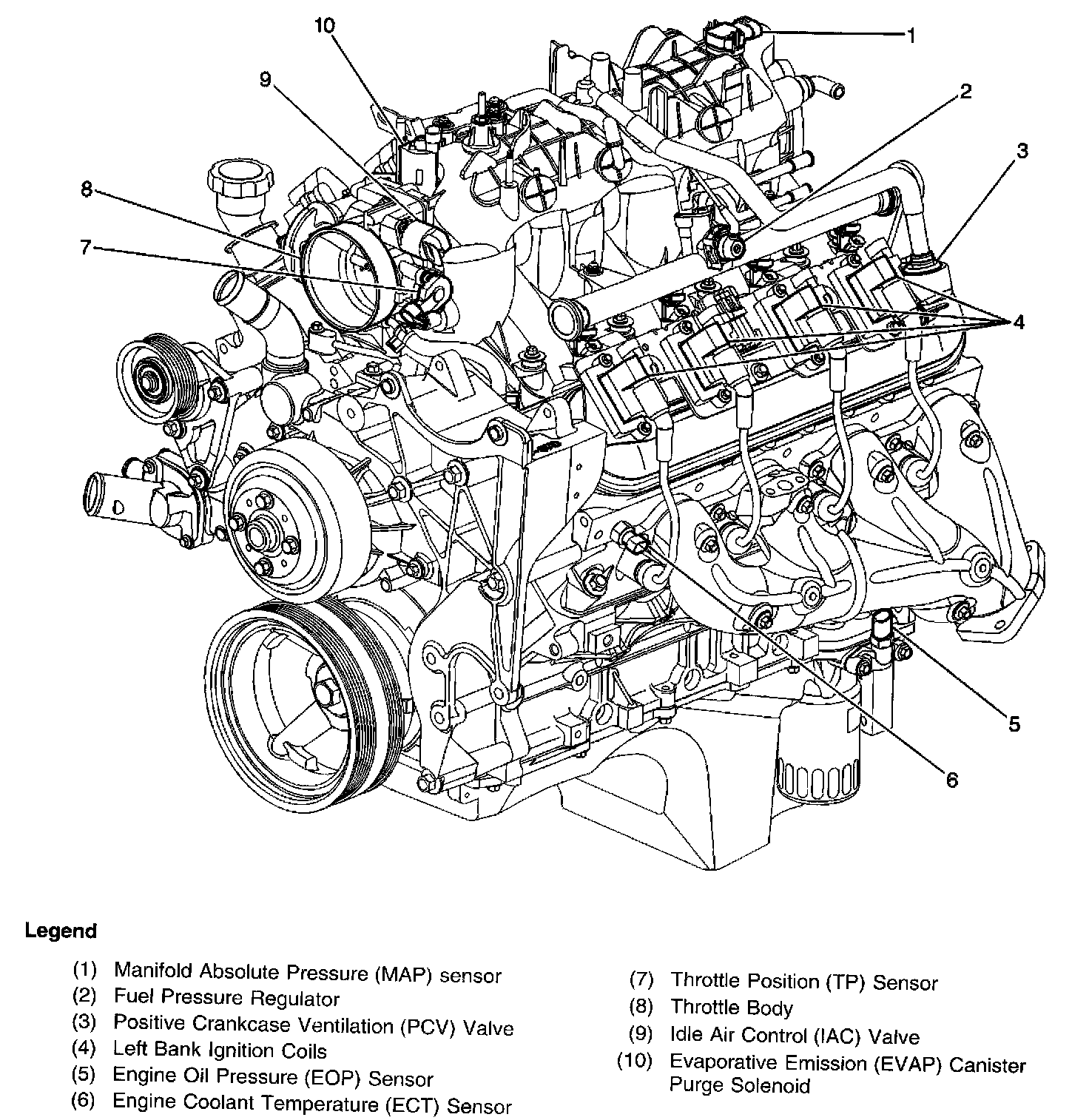

Full Engine View Left Side:

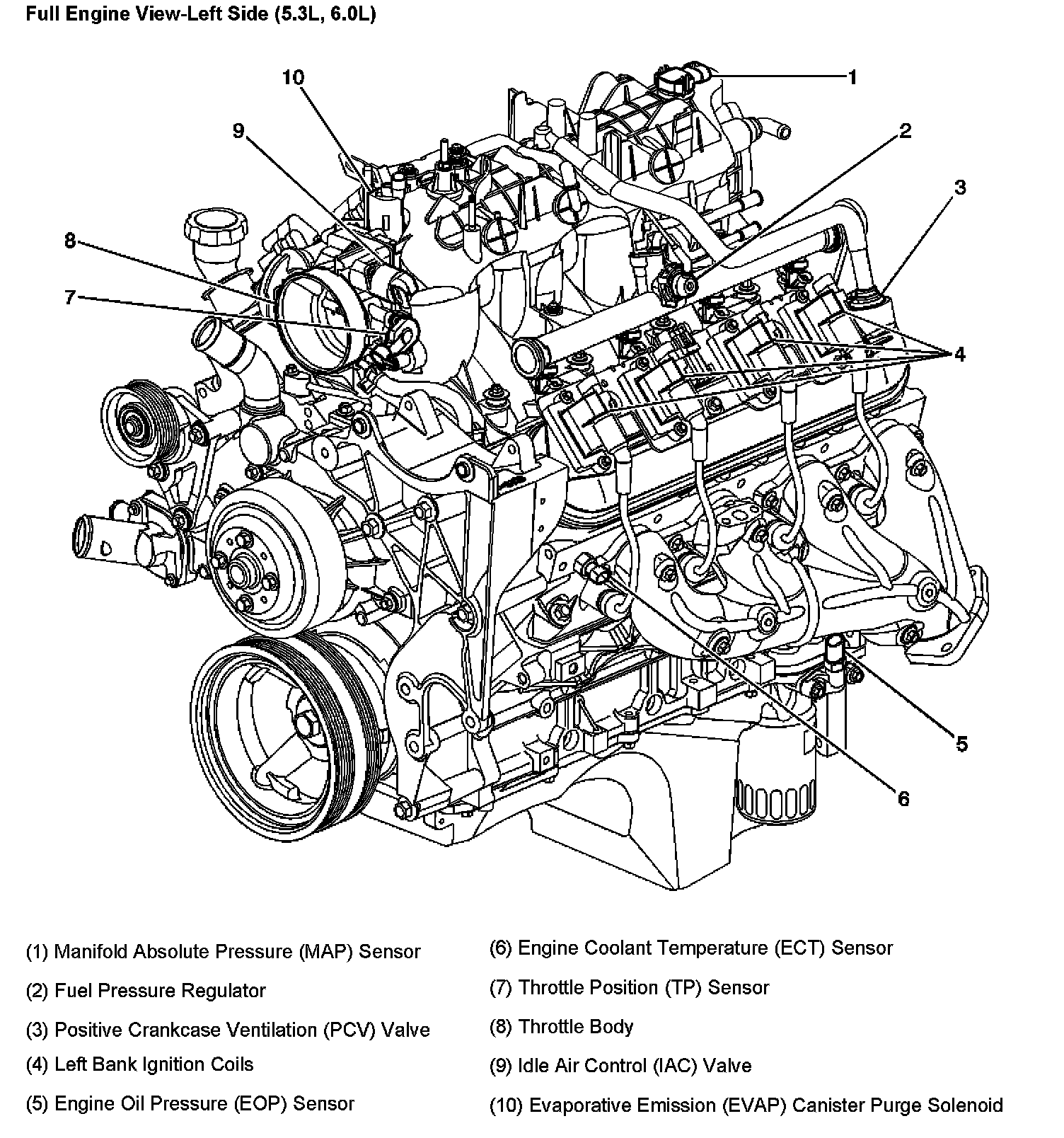

Full Engine View-Left Side:

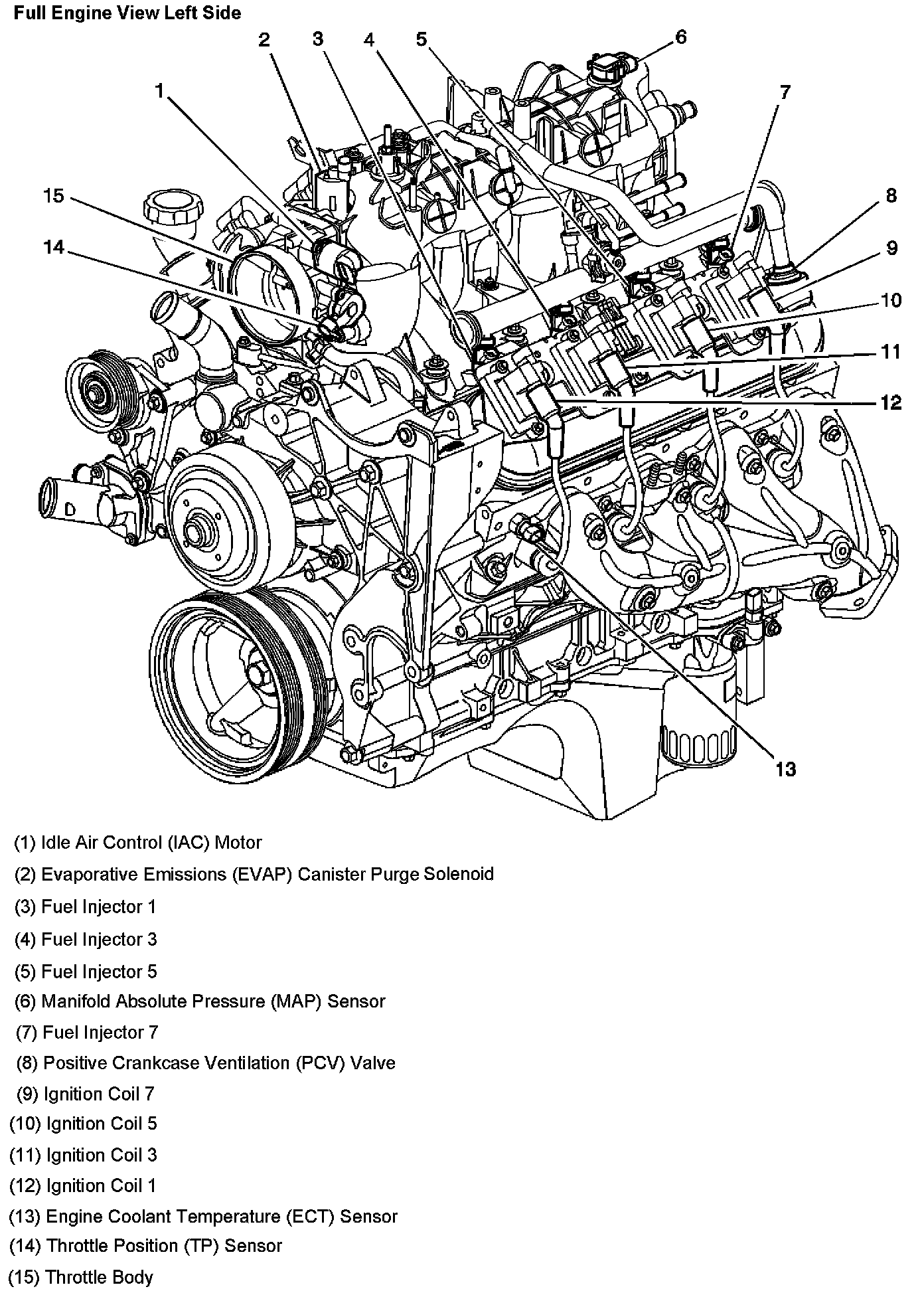

Left Side of the Engine Components:
