Scan Tool Output Controls - HVAC Control Module

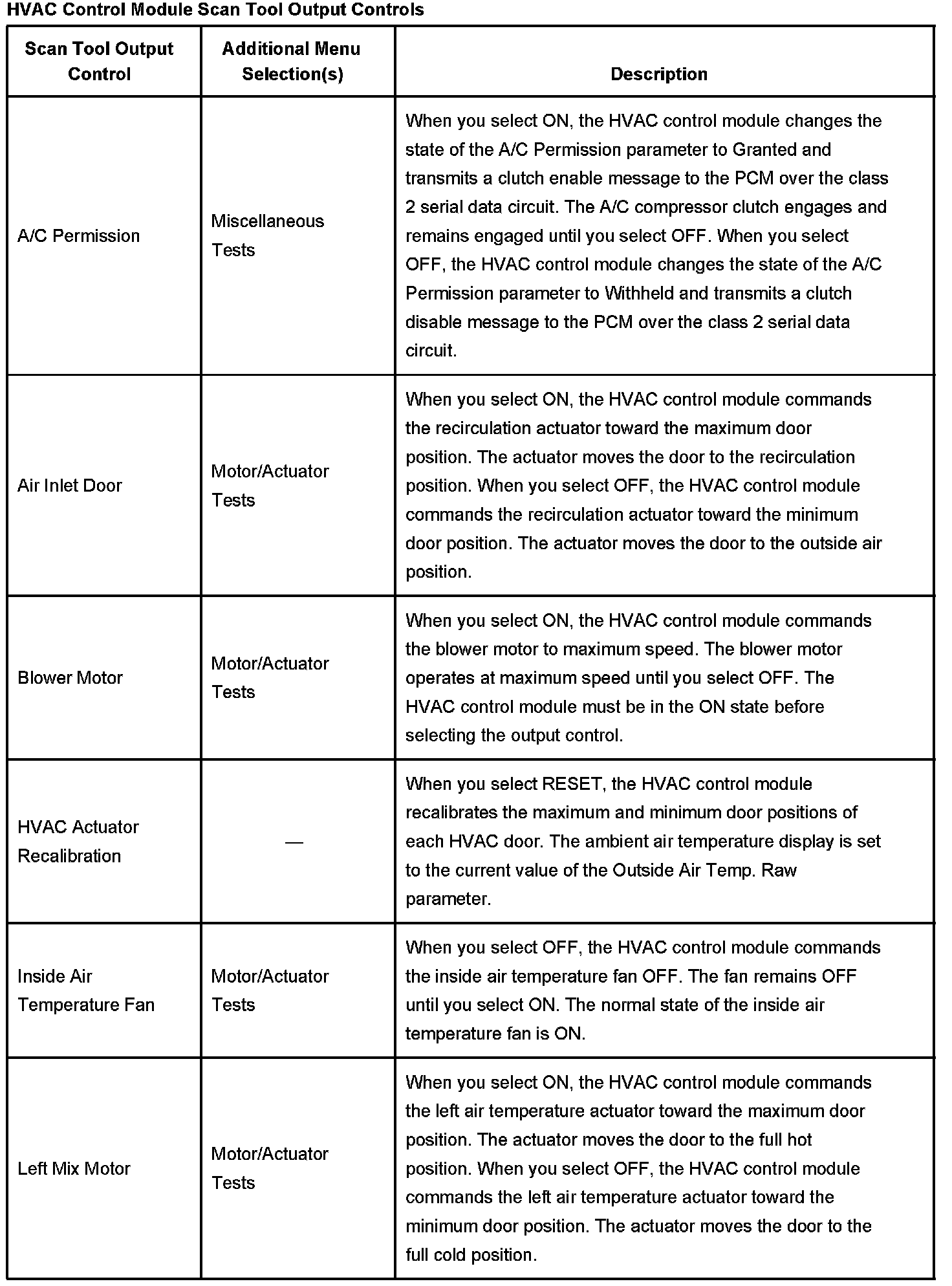

HVAC Control Module Scan Tool Output Controls Part 1:

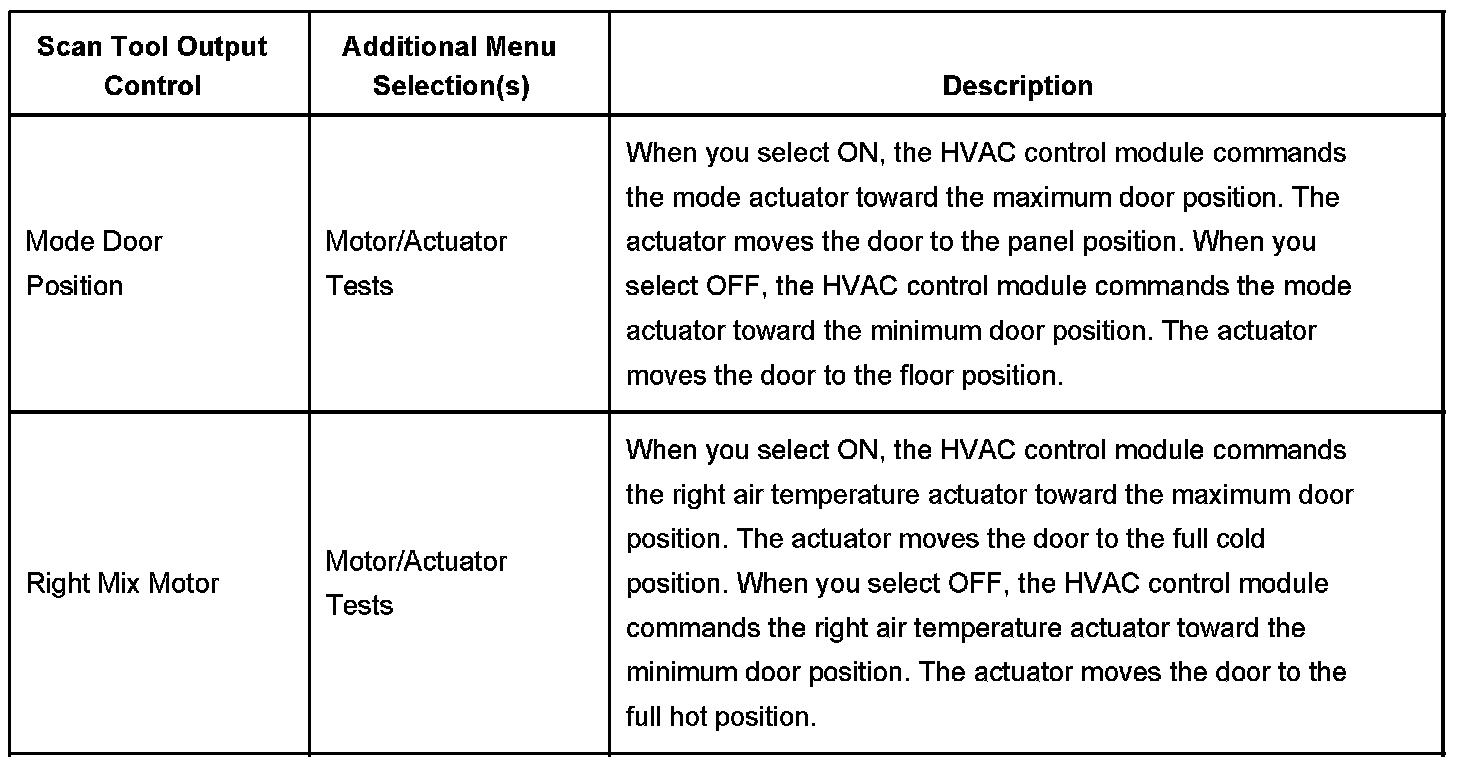

HVAC Control Module Scan Tool Output Controls Part 2:
