Installation Procedure
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the seal surface of the BPMV.

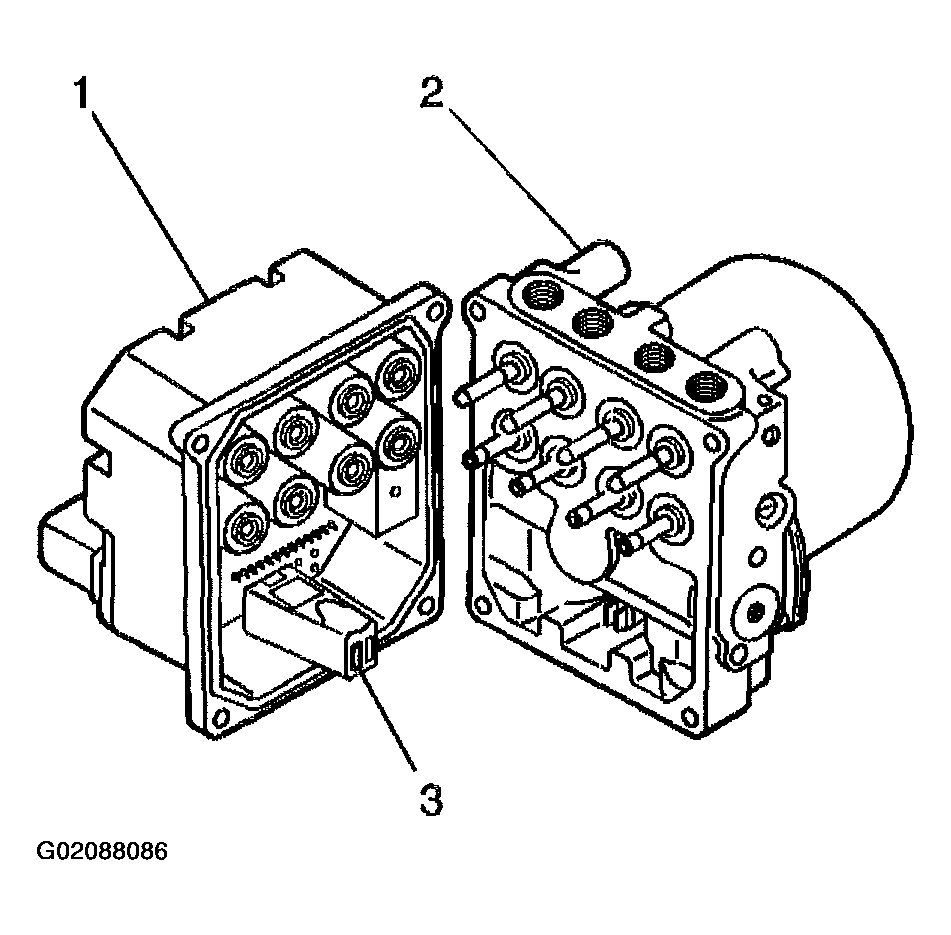

- Install the EBCM (1) to the BPMV (2).
- Make sure that the internal pump motor connector (3) is installed into the new EBCM (1) prior to EBCM replacement.
Important: Use New EBCM/BPMV screws after separating the EBCM from the BPMV.
- Install the 2 upper NEW EBCM to BPMV screws.
- Raise and suitably support the vehicle. Refer to JACKING AND LIFTING
in General Information.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the 2 lower NEW EBCM to BPMV screws.
Tighten

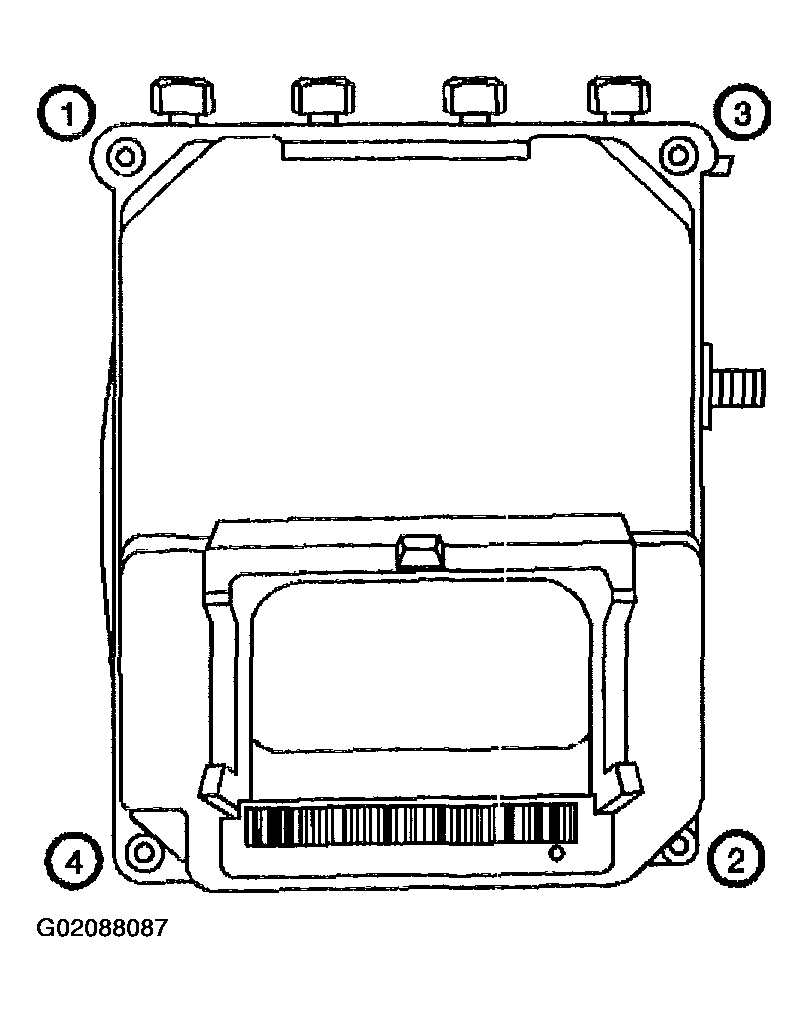

Tighten the (4) NEW EBCM to BPMV screws in sequence (1-4) to 5 N.m (44 lb in).
- Install the front air deflector. Refer to AIR DEFLECTOR REPLACEMENT -- FRONT in Body Front End.
- Lower the vehicle.
NOTE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.

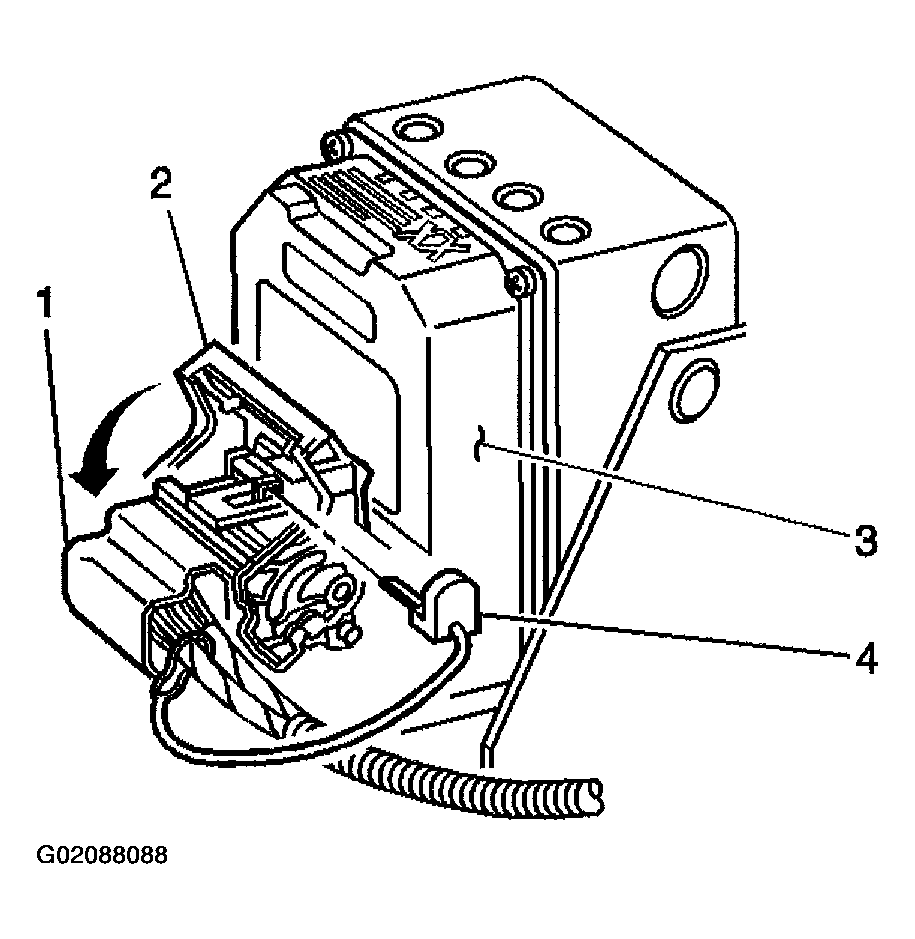

- Connect the EBCM electrical connector (1) to the EBCM (3).
- Rotate the EBCM connector tab (2) down to the locked position.
- Install the EBCM connector position assurance retainer (4) to the EBCM electrical connector (1).
- Connect the coolant bypass valve to the radiator. Refer to COOLANT BYPASS VALVE REPLACEMENT in Engine Cooling.
- Use the scan tool in order to clear the DTCs.
- Perform the auto bleed procedure. Refer to ABS AUTOMATED BLEED PROCEDURE .
- Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .
