Object Sensor - LR Middle Connector End View

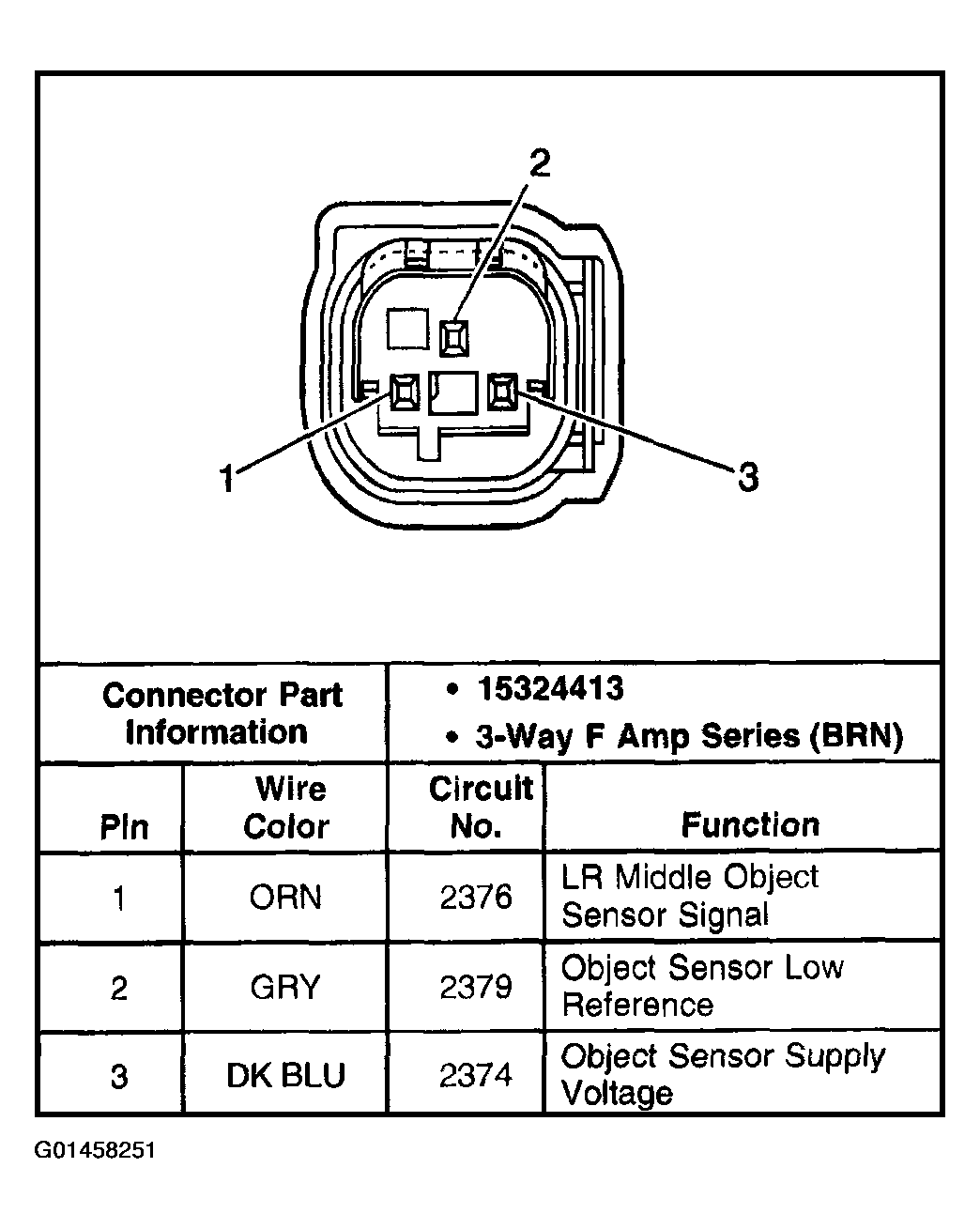

Fig 1: Object Sensor - LR Middle Connector End View

G01458251

Courtesy of GENERAL MOTORS CORP.
