Installation Procedure

  1. Connect the yaw rate sensor electrical connector (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the yaw rate sensor (3).

    Tighten

    Tighten the 2 yaw rate sensor mounting nuts (1) to 6 N.m (53 lb in).

  3. Reposition the left trim panel.
  4. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF (WITHOUT SUNSHADE) or TRIM PANEL REPLACEMENT - REAR WINDOW SHELF (WITH SUNSHADE) in Interior Trim.
  5. Install the rear compartment trim. Refer to COMPARTMENT FRONT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  6. Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS  .

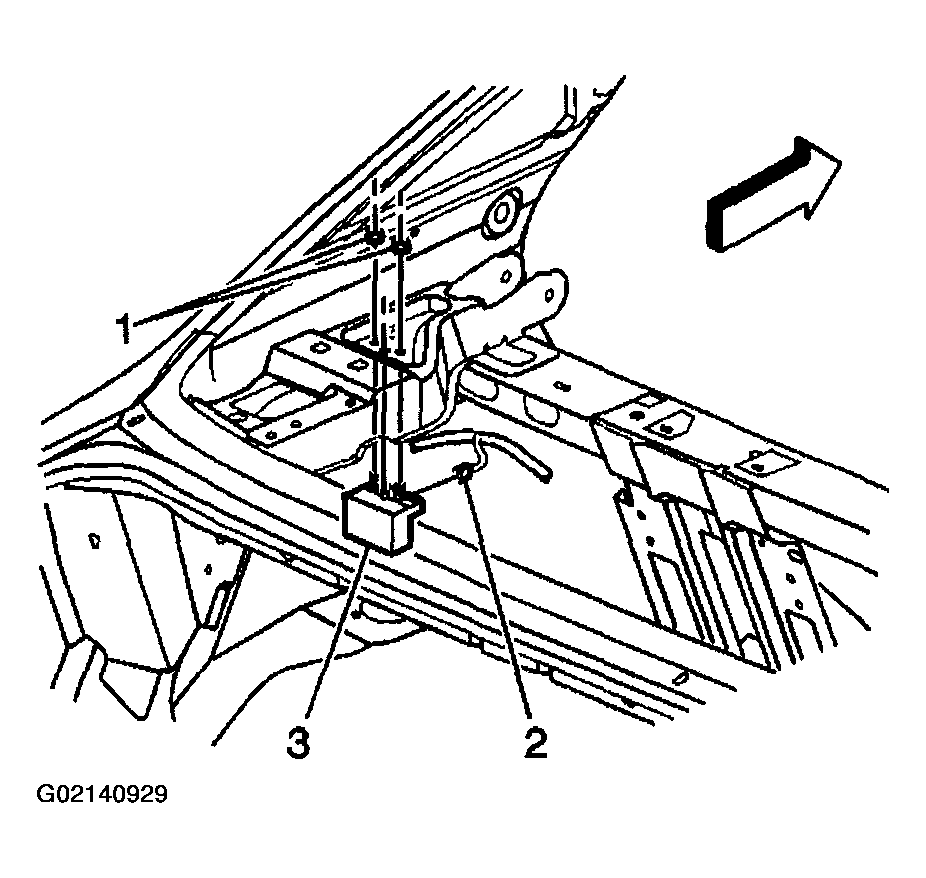

    Fig 1: Connecting Yaw Rate Sensor & Electrical Connector
    G02140929Courtesy of GENERAL MOTORS CORP.
