Removal Procedure

  1. Turn OFF the ignition.
  2. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
  3. Disconnect the lateral accelerometer sensor electrical connector (2).
  4. Remove the 2 lateral accelerometer sensor screws (3).
  5. Remove the lateral accelerometer sensor (1).

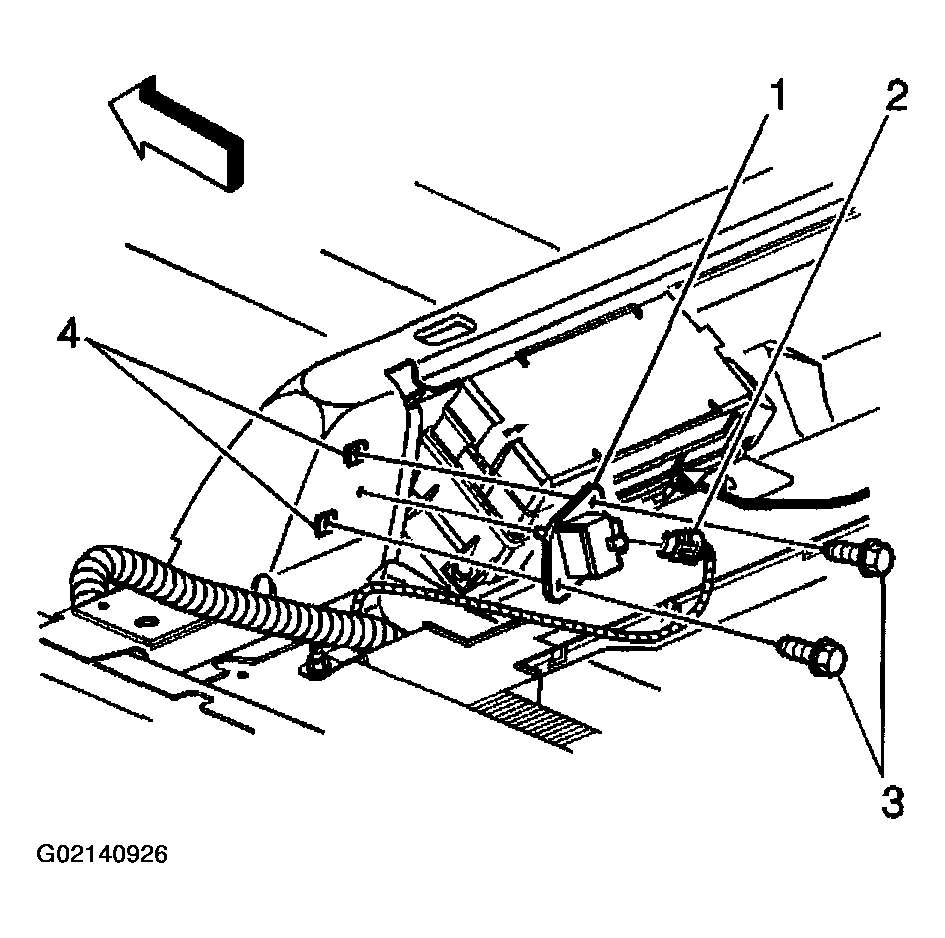

    Fig 1: Removing Lateral Accelerometer Sensor
    G02140926Courtesy of GENERAL MOTORS CORP.
